10.1. Disassembly of TRV unit
•
• •

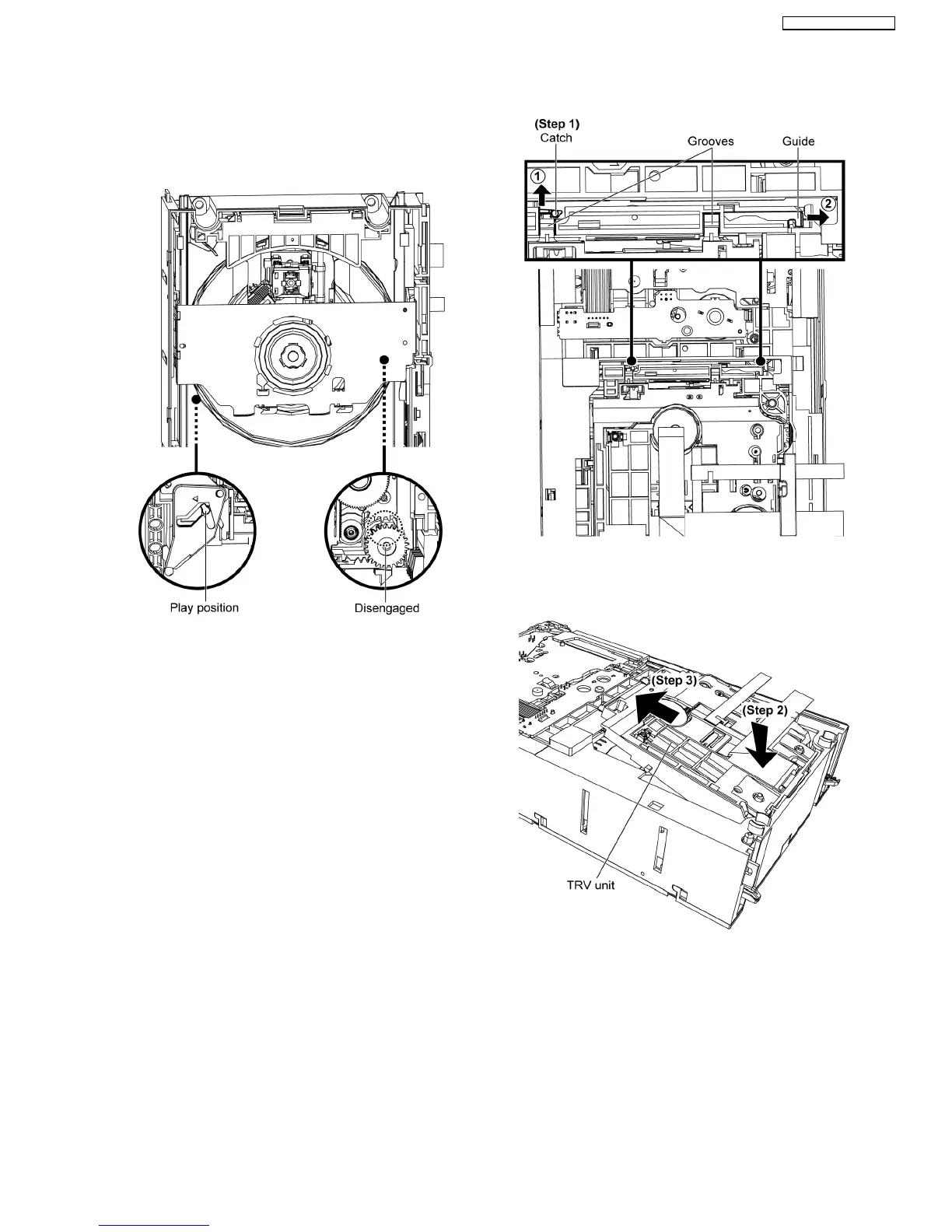

• Disassembly of TRV unit in play position
Note: The above picture shows the unit is in play
position.
Step 1: Release the catch and push the guide as arrows
shown to open both grooves.
Step 2: Press down the TRV unit.
Step 3: Remove the TRV unit as arrow shown.
