10.2. Assembly of TRV unit

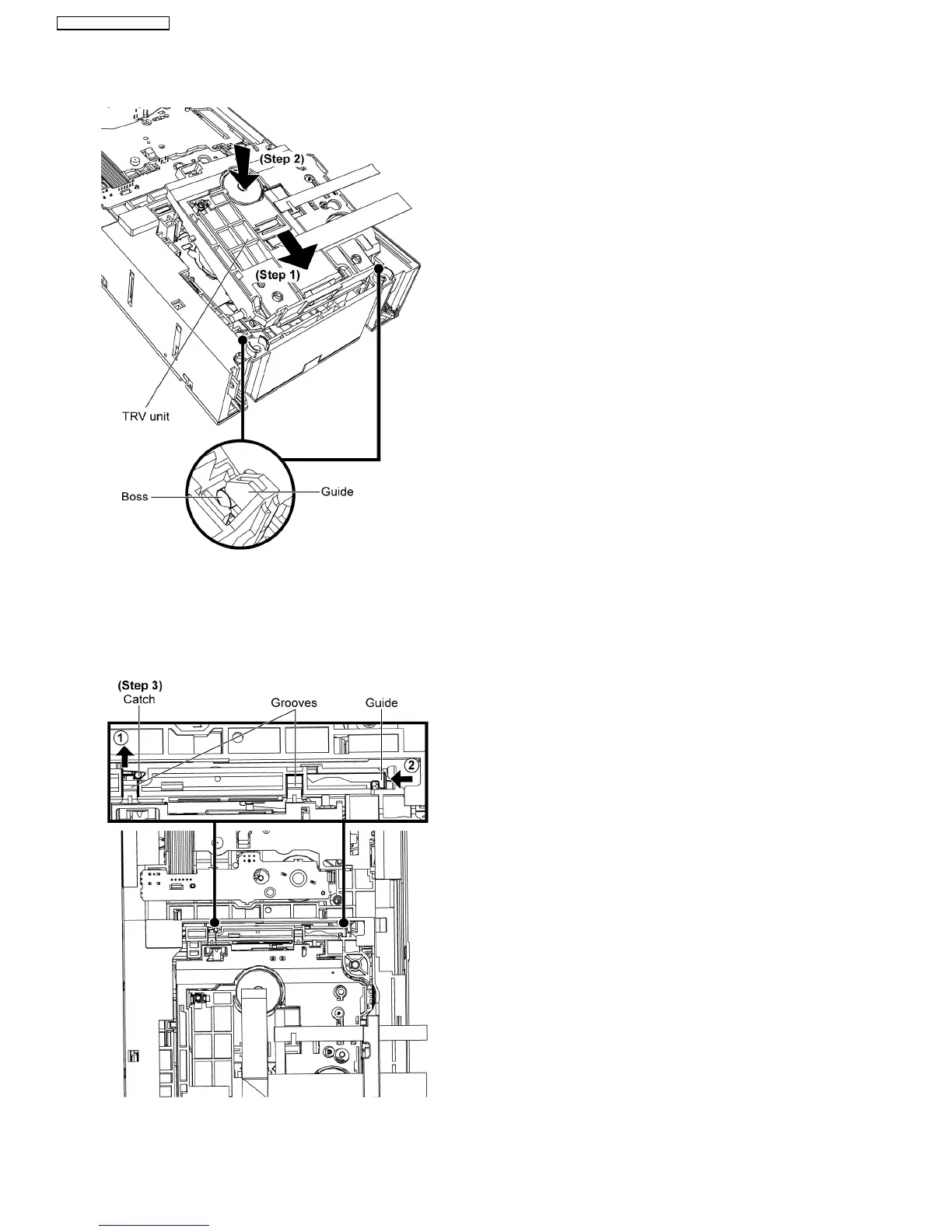

Step 1: Slot the TRV unit into the guides as arrow
shown.
Note: Ensure the bosses fix exactly onto the guides.
Step 2: Place down the TRV unit.
Step 3: Release the catch and push the guide as
arrows shown to close both grooves.
