9.5. Disassembly of D-Port and HP

/ Music Port P.C.B.

Follow the (Step 1) - (Step 5) of Item 9.4.

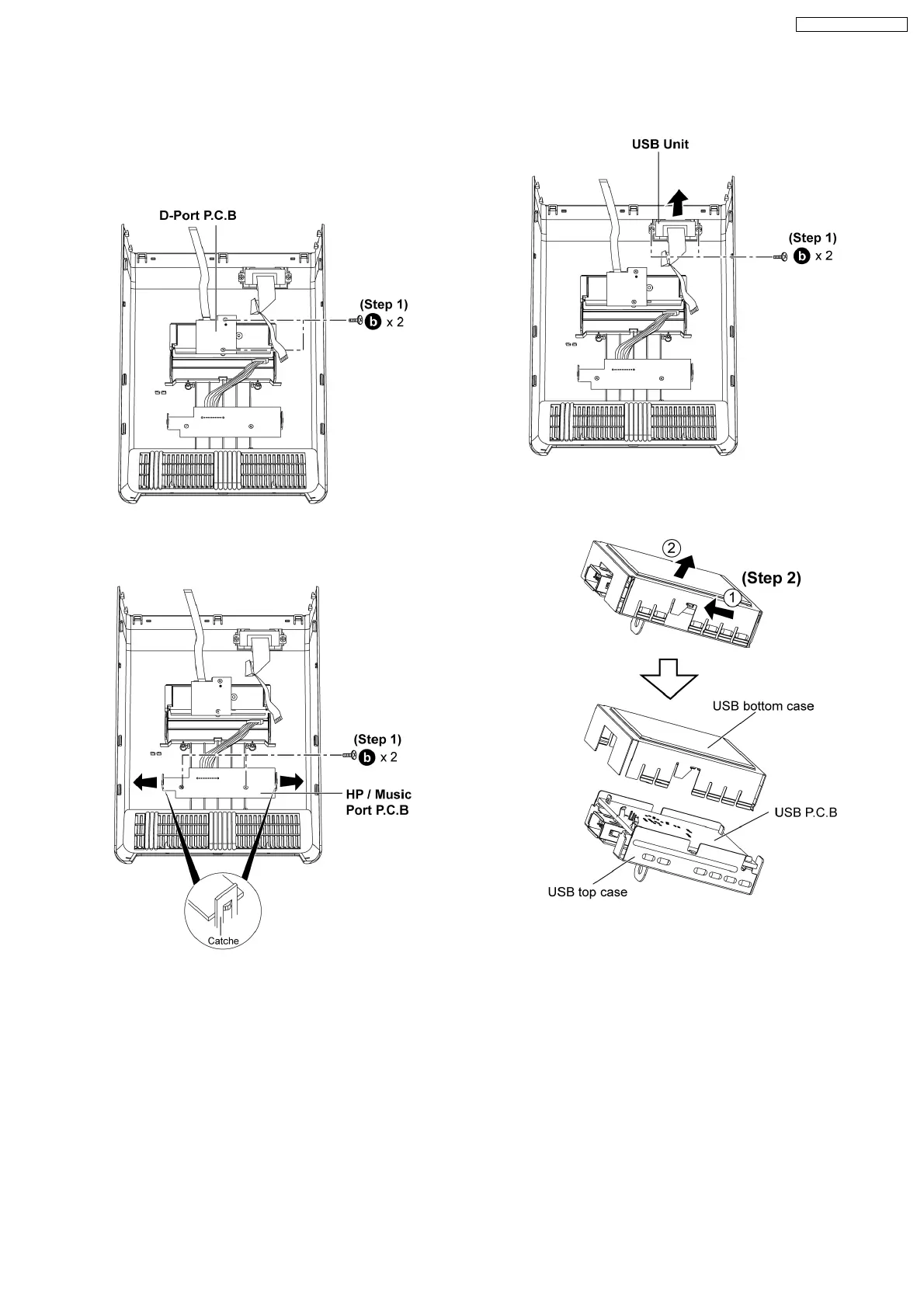

Disassembly of D-Port P.C.B.

Step 1: Remove 2 screws and remove D-Port

P.C.B..

Disassembly of HP / Music Port P.C.B.

Step 1 : Remove 2 screws and release 2 catches

as arrow shown to remove HP / Music Port P.C.B. .

9.6. Disassembly of USB P.C.B.

Follow the (Step 1) - (Step 5) of Item 9.4.

Step 1: Remove 2 screw and remove USB Unit as

arrow shown.

Step 2: Remove USB bottom case as arrow shown.
