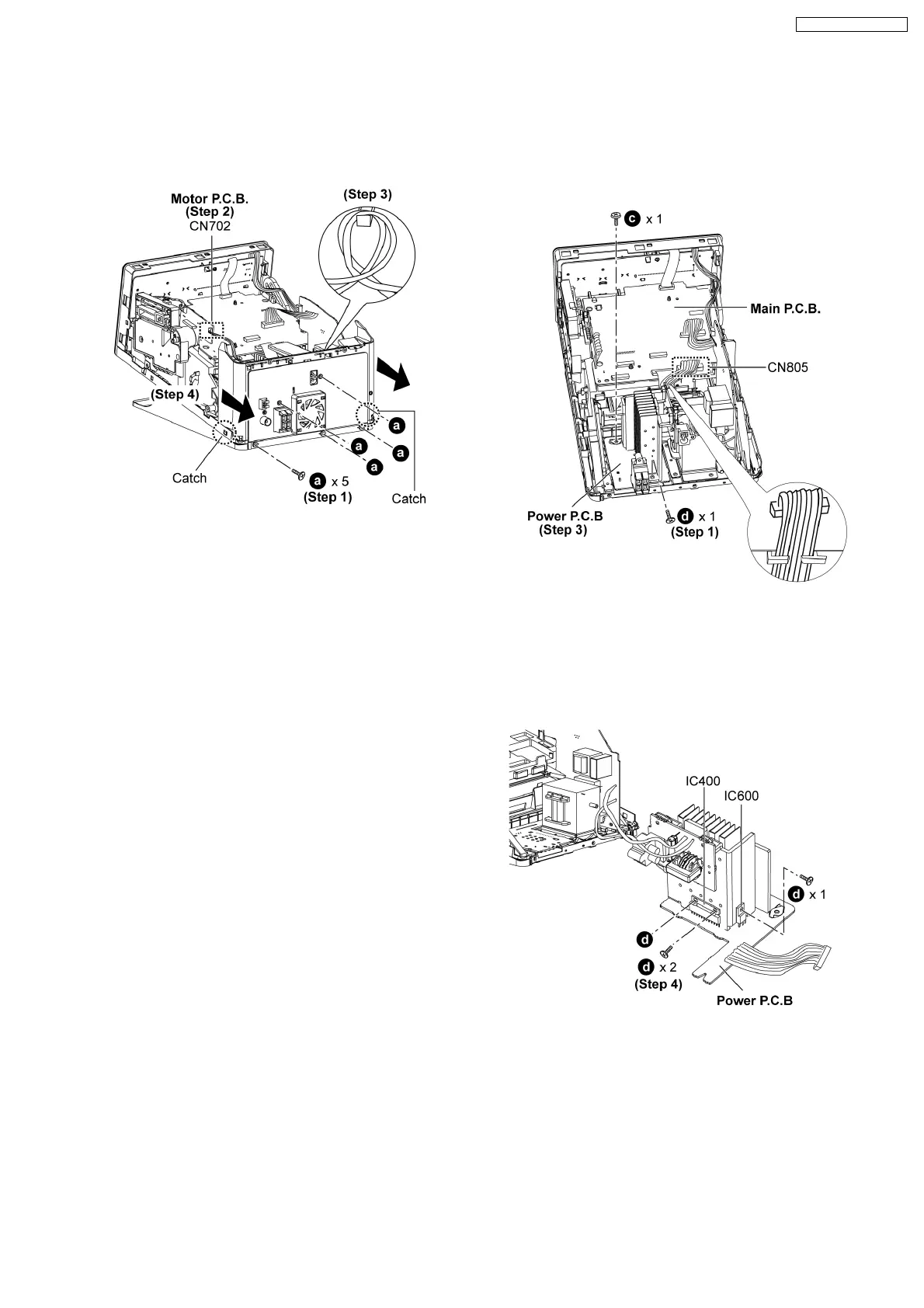

9.8. Disassembly of Rear Cabinet
Unit
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 2) of Item 9.7.
Step 1: Remove 5 screws.
Step 2: Detach cable (CN702) on Motor P.C.B..
Step 3: Detach wires from the catch on rear
cabinet.
Step 4 : Remove Rear Cabinet as arrow shown (Be
careful of the catches).
9.9. Disassembly of Power and AC
Inlet P.C.B.
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 2) of Item 9.7.
· Follow the (Step 1) - (Step 4) of Item 9.8.
Step 1 : Remove 2 screw.
Step 2 : Detach cable (CN805) on Main P.C.B. and
remove the wire carefully from the holder.
Step 3 : Remove Power P.C.B..
· Replacement of Power Amplifier IC (IC400) / Voltage
Regulator (IC600)
Step 4 : Remove 2 screws. (For IC 400)
Step 4 : Remove 1 screws. (For IC 600)
23
SA-NS55E / SA-NS55EG
