9.19. Disassembly of Traverse Unit,

Driving Gear, and Cam Gear

(CD Mechanism Unit)

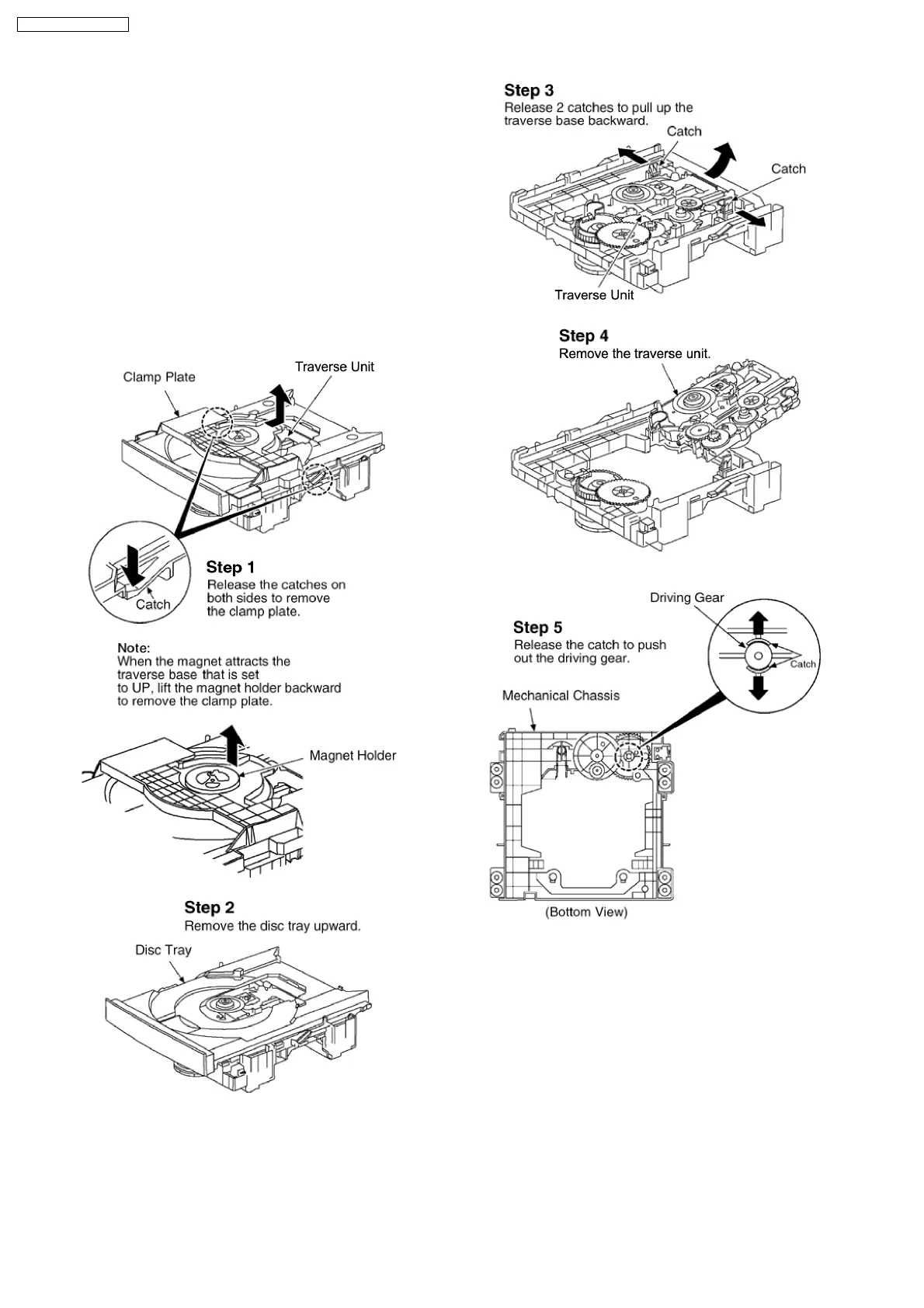

9.19.1. Disassembly of the Traverse Unit

Follow the (Step 1) - (Step 5) of Item 9.4.

Follow the (Step 2) of Item 9.7.

Follow the (Step 1) - (Step 4) of Item 9.8.

Follow the (Step 1) - (Step 2) and (Step 4) of Item 9.10.

Follow the (Step 1) - (Step 3) of Item 9.11.

Follow the (Step 1) - (Step 6) of Item 9.17.

Follow the (Step 1) - (Step 8) of Item 9.18.

Disassembly of gears drive
