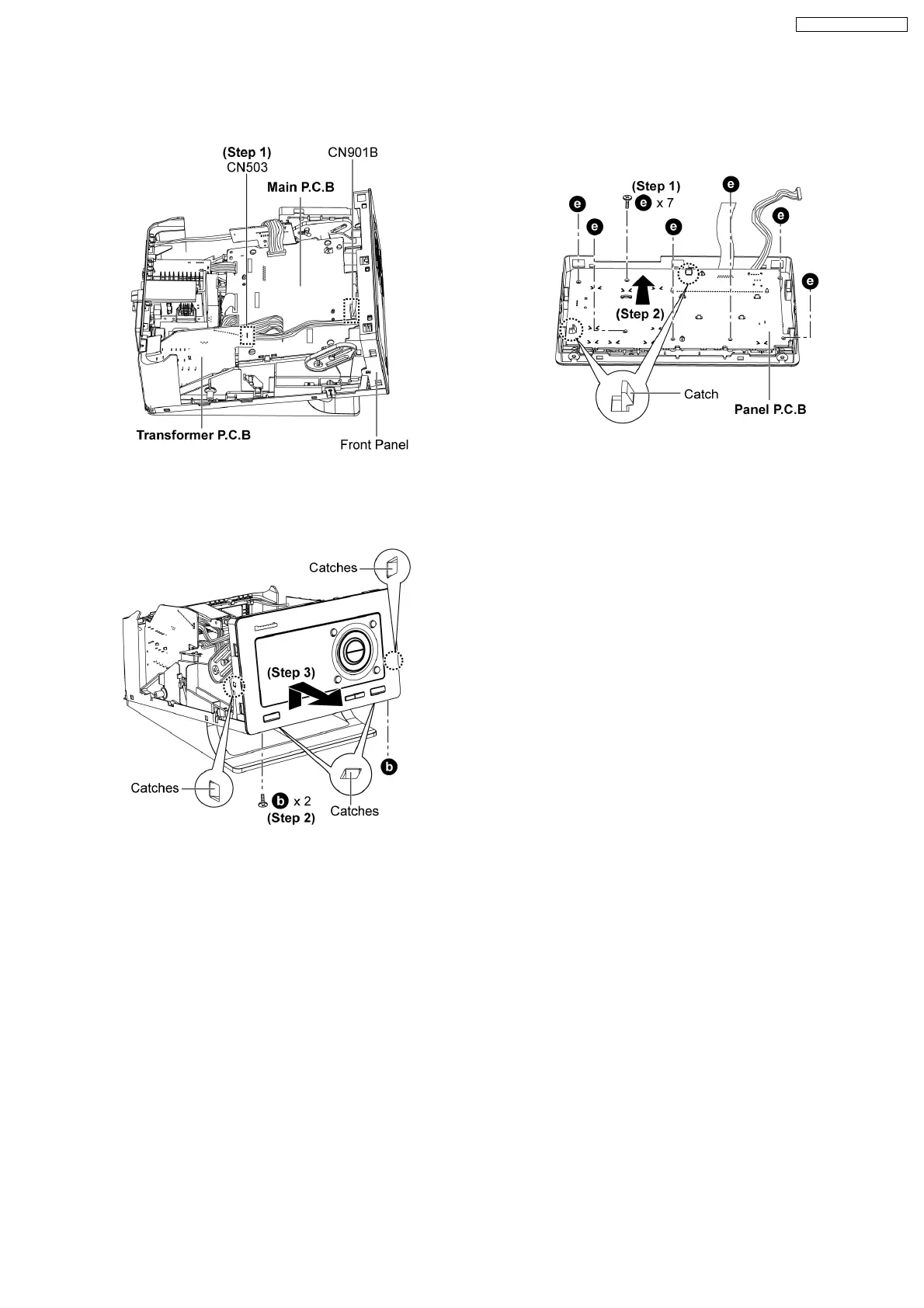

9.11. Disassembly of Front Panel
· Follow the (Step 1) - (Step 5) of Item 9.4.
Step 1 : Detach cable on Main P.C.B. &
Transformer P.C.B. (CN503, CN901B).
Step 2 : Remove 2 screw.
Step 3 : Release catches and remove Front Panel
as arrow shown.
9.12. Disassembly of Panel P.C.B.
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.11.
Step 1 : Remove 7 screw.
Step 2 : Release 2 catches and remove Panel
P.C.B. as arrow shown.
25
SA-NS55E / SA-NS55EG
