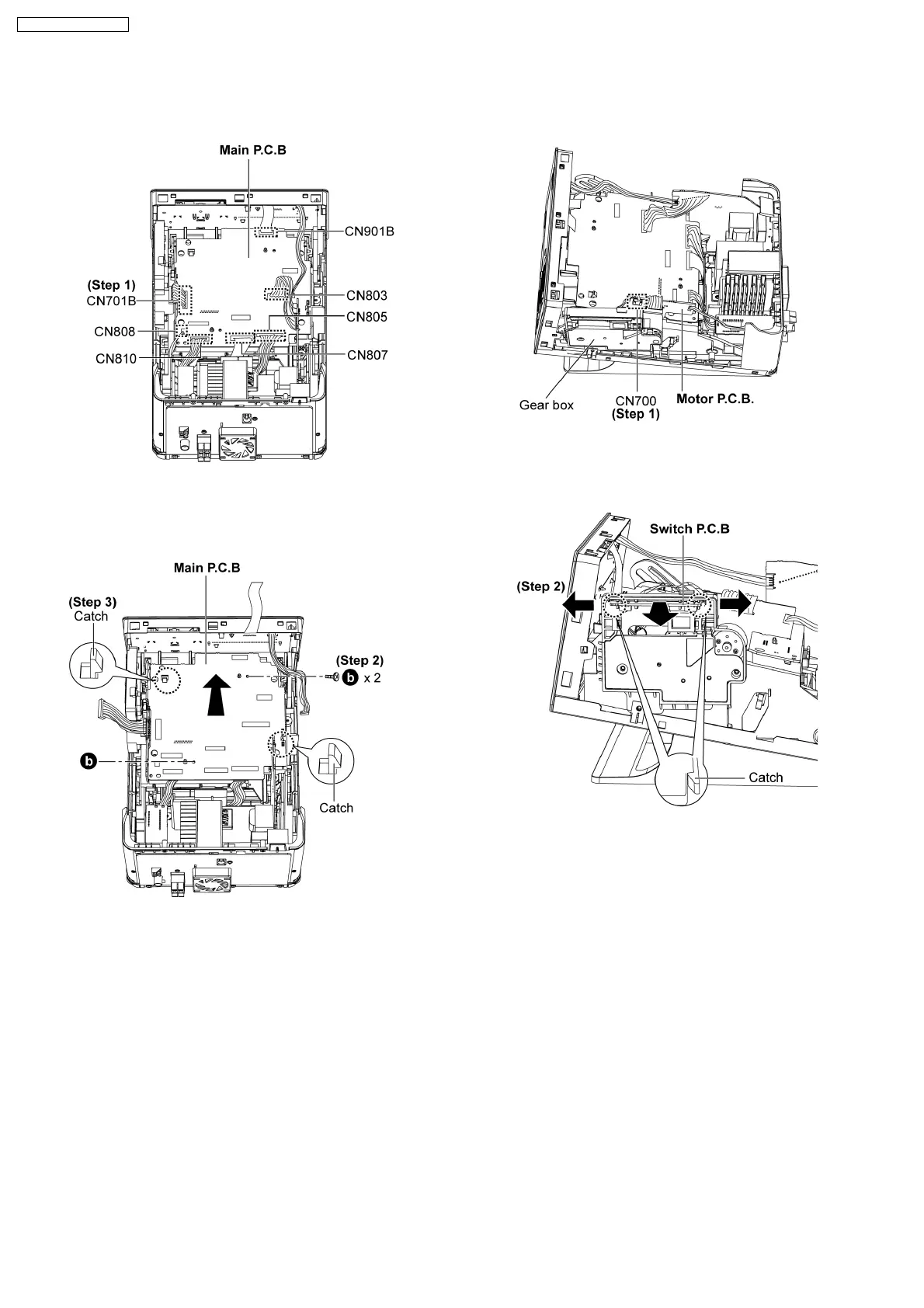

9.13. Disassembly of Main P.C.B.
· Follow the (Step 1) - (Step 5) of Item 9.4.
Step 1: Detach cable (CN701B, CN808, CN810,
CN807, CN805, CN803, CN901B) on Main P.C.B..
Step 2 : Remove 2 screw.
Step 3 : Release catches and remove Main P.C.B. as
arrow shown.
9.14. Disassembly of Switch P.C.B.
· Follow the (Step 1) - (Step 5) of Item 9.4.
Step 1 : Detach cable (CN700) on Motor P.C.B..
Step 2 : Release both catches and remove the
Switch P.C.B by gently pulling out.
26
SA-NS55E / SA-NS55EG
