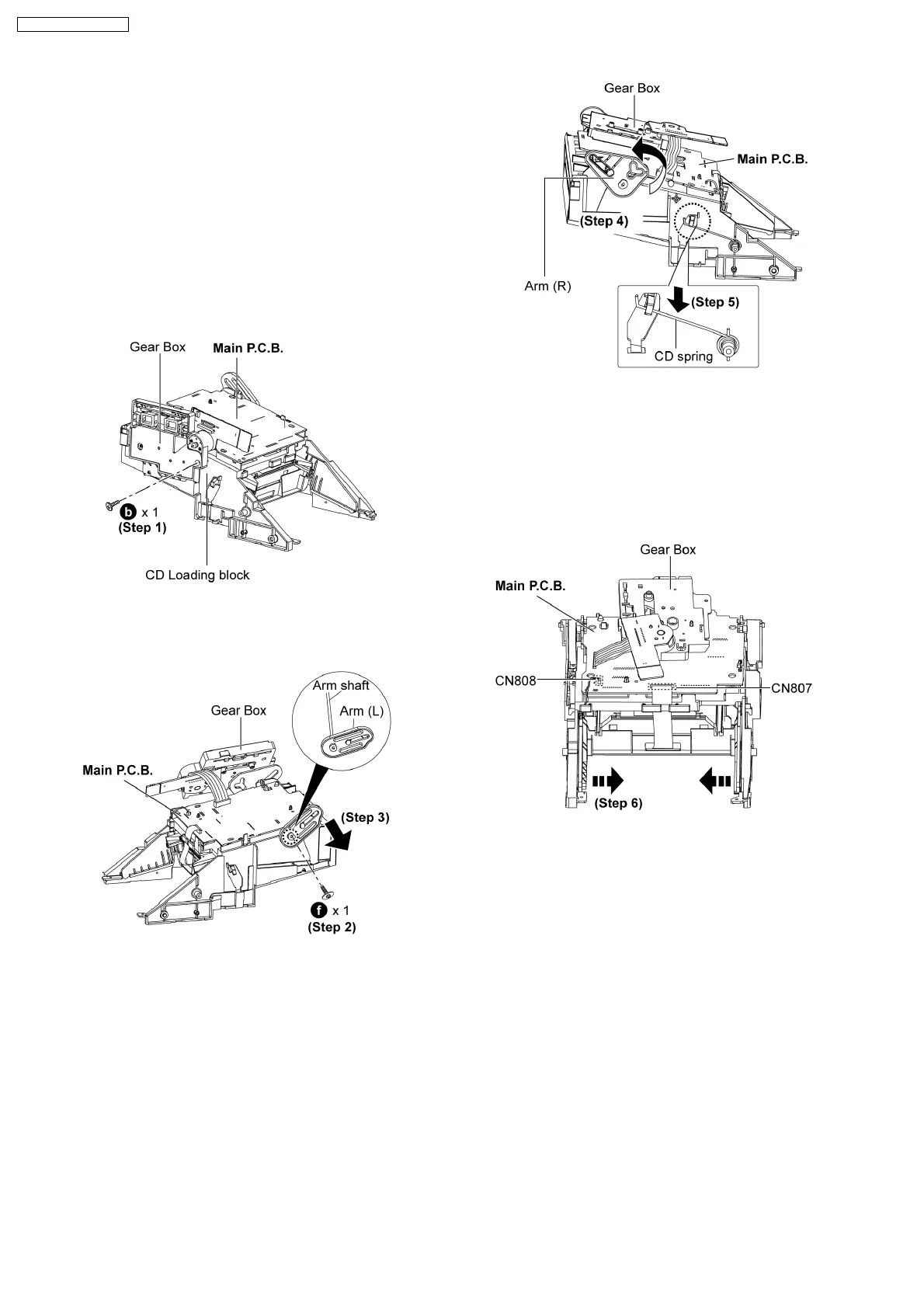

9.18. Disassembly of CD
Mechanism
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 2) of Item 9.7.
· Follow the (Step 1) - (Step 4) of Item 9.8.
· Follow the (Step 1) - (Step 2) and (Step 4) of Item 9.10.
· Follow the (Step 1) - (Step 3) of Item 9.11.
· Follow the (Step 1) - (Step 6) of Item 9.17.
· Disassembly of Arm (L & R) and Arm Shaft
Step 1 : Remove 1 screw.
Step 2 : Remove 1 screw.
Step 3 : Remove the arm shaft together with Arm
(L) as arrow shown.
Step 4 : Pull out slightly, turn anti clockwise till it
can be removed as arrow shown.
Step 5 : Pull down CD spring gently as arrow
shown.
· Disassembly of Inner Chassis
Step 6 : Pull inward to release the Inner chassis as
arrow shown.
30
SA-NS55E / SA-NS55EG
