9.16. Disassembly of Gear Box
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.15.

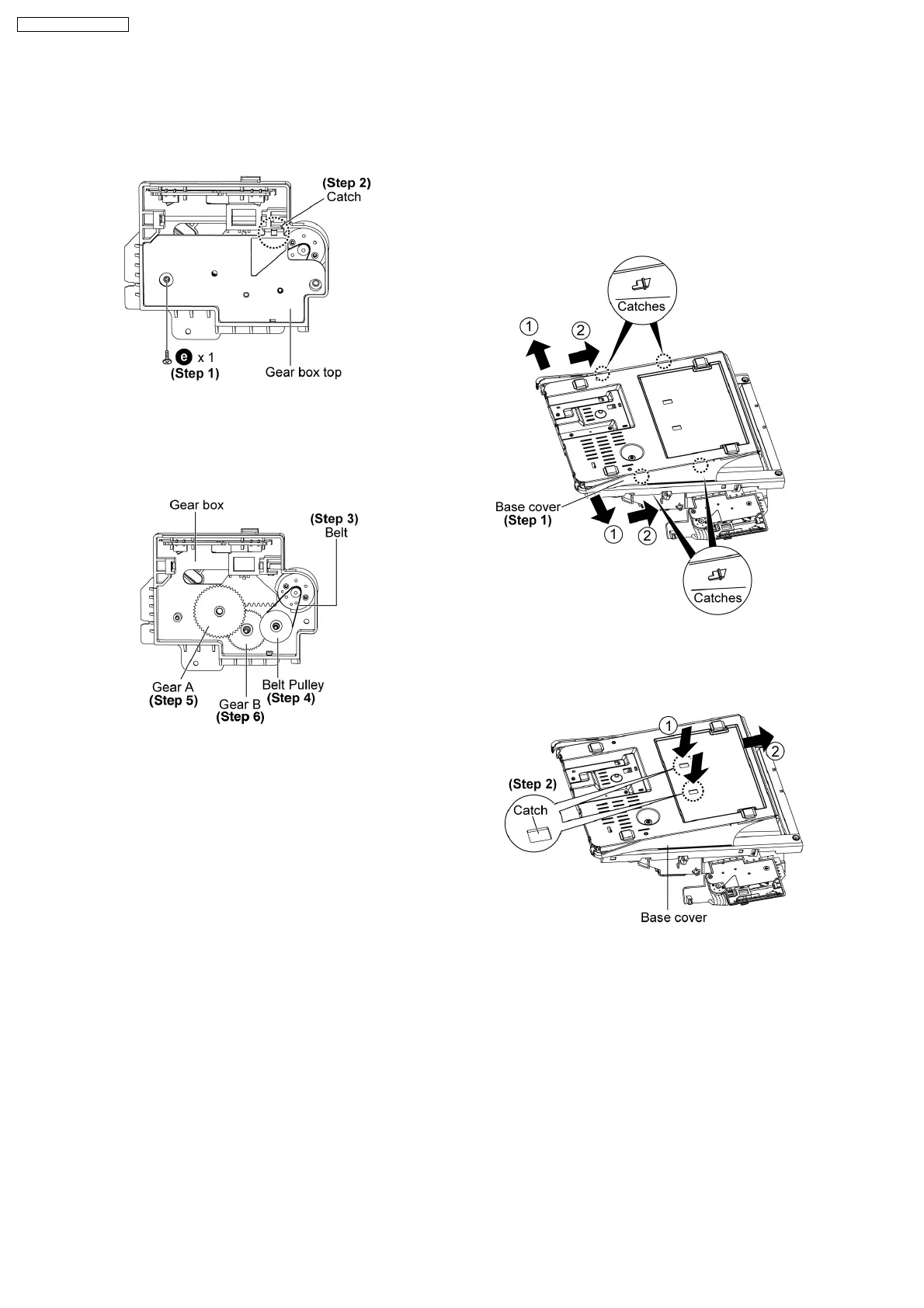

Step 1 : Remove 1 screw.
Step 2 : Release catch.
Step 3 : Remove Belt.
Step 4 : Remove Belt Pulley.
Step 5 : Remove Gear A .
Step 6 : Remove Gear B.
9.17. Disassembly of CD Loading
Block
· Follow the (Step 1) - (Step 5) of Item 9.4.
· Follow the (Step 2) of Item 9.7.
· Follow the (Step 1) - (Step 4) of Item 9.8.
· Follow the (Step 1) - (Step 2) and (Step 4) of Item 9.10.
· Follow the (Step 1) - (Step 3) of Item 9.11.
Step 1 : Pull out sideways gently and slide to
release catches (as arrow shown).
Step 2 : Press both catches and push upward
gently as arrow shown to remove Base cover.
