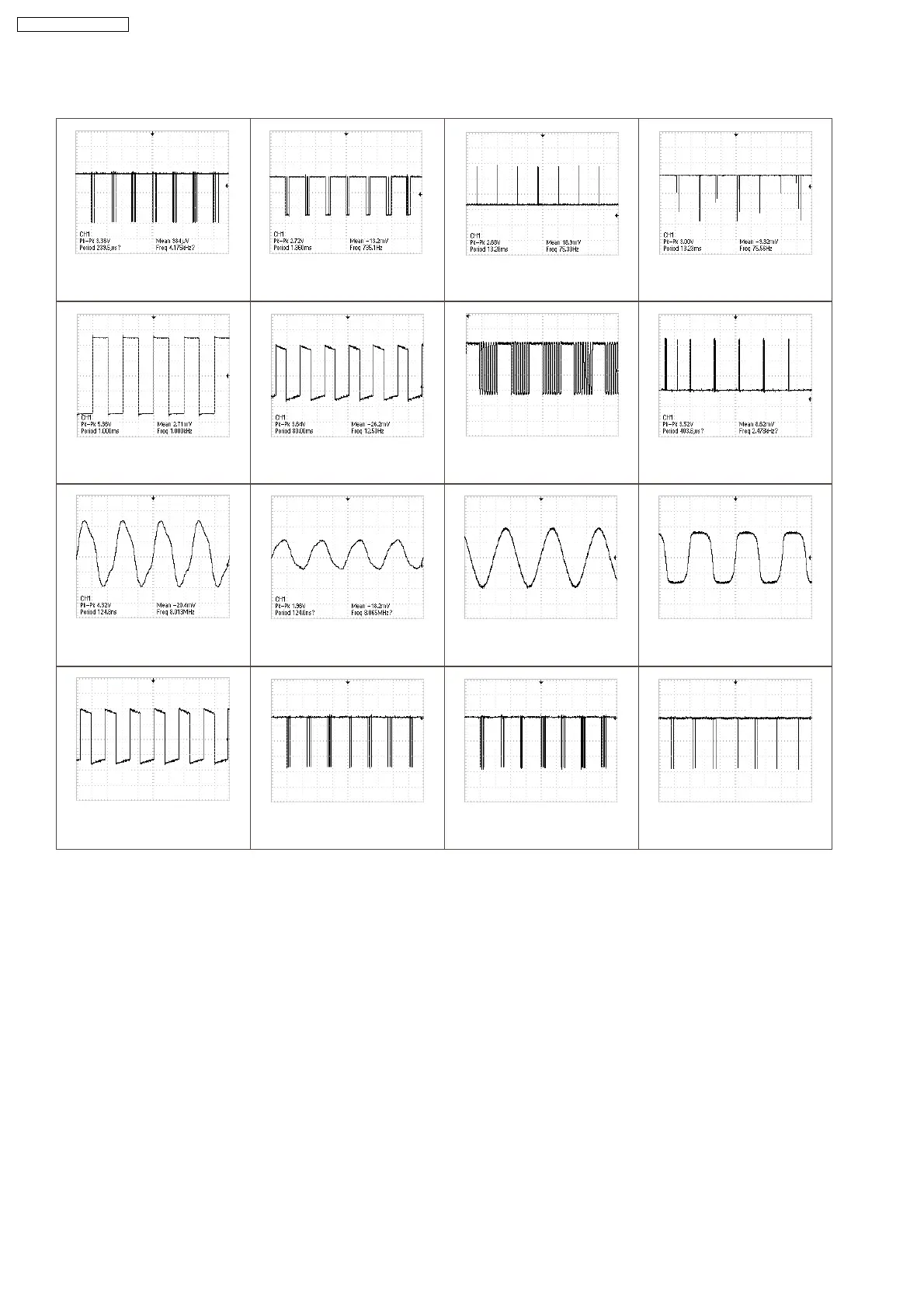

11.2. Waveform Chart
CN807 PIN 15
CD PLAY
3.36Vp-p (10msec.div)
CN807 PIN 17
CD PLAY
3.00Vp-p (10msec.div)
CN807 PIN 19
CD PLAY
2.72Vp-p (50msec.div)
CN901B PIN 1
CD PLAY
5.36Vp-p (500usec.div)
CN901B PIN 2
CD PLAY
3.52Vp-p (50usec.div)
CN901B PIN 2
CD PLAY
3.64Vp-p (50msec.div)
IC807 PIN 6
CD PLAY
3.52Vp-p (50msec.div)
IC807 PIN 12
CD PLAY
4.32Vp-p (50nsec.div)
IC807 PIN 13
CD PLAY
1.36Vp-p (50nsec.div)
IC807 PIN 15
CD PLAY
1.98Vp-p (10nsec.div)
IC807 PIN 16
CD PLAY
3.40Vp-p (10nsec.div)
CN807 PIN 18
CD PLAY
2.68Vp-p (50msec.div)
IC807 PIN 23
CD PLAY
3.68Vp-p (50msec.div)
IC807 PIN 31
CD PLAY
3.52Vp-p (10msec.div)
IC807 PIN 33
CD PLAY
3.56Vp-p (10msec.div)
IC807 PIN 36
CD PLAY
3.44Vp-p (10msec.div)
48
SA-NS55E / SA-NS55EG
