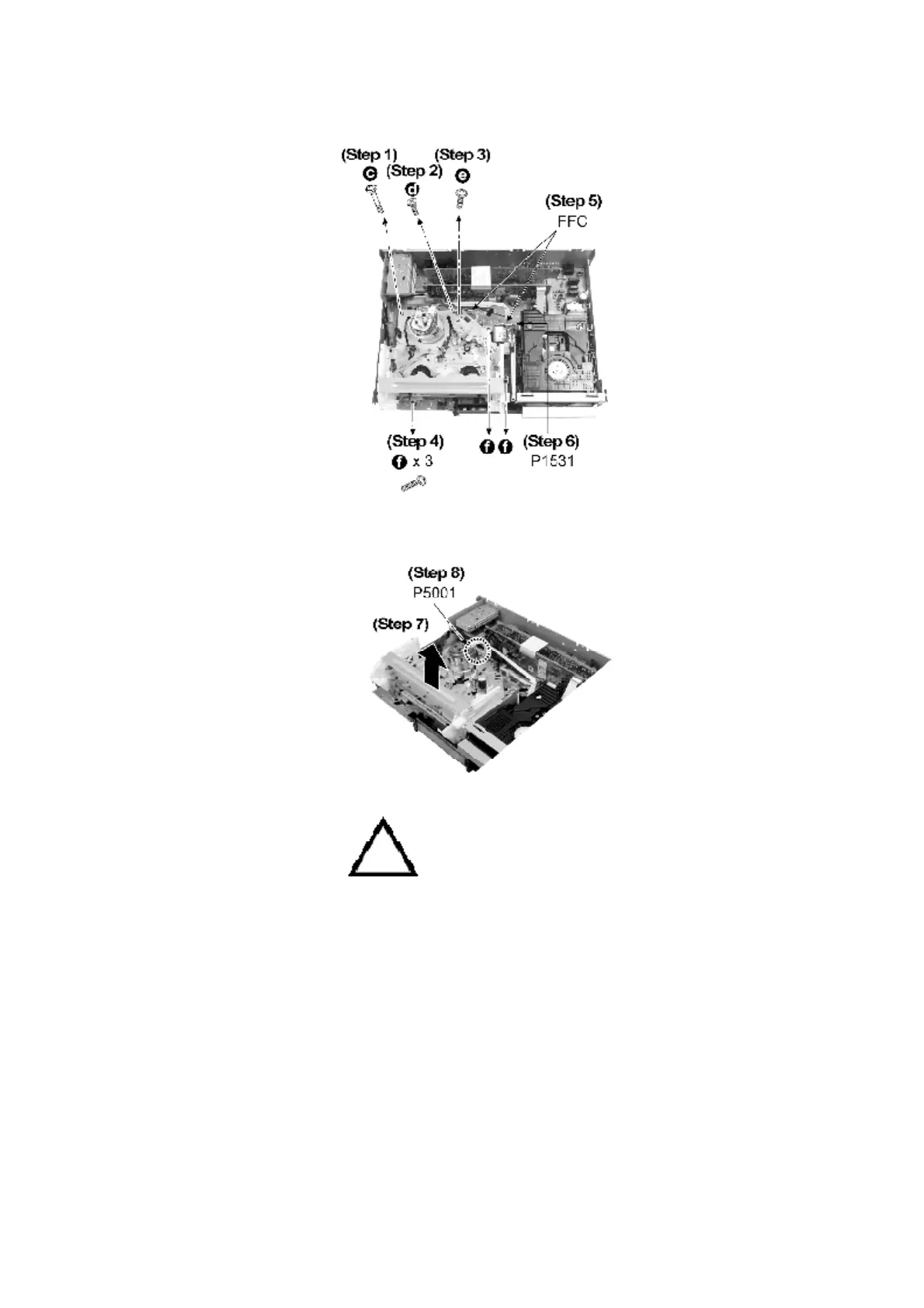

Step 7: Lift up the VTR Mecha Unit as arrow shown below.
Step 8: Detach the connector (P5001) carefully when lift up the VTR Mecha Unit.
[Caution of assembly the VTR Mecha Unit]
1. Join the marking ( )of the position switch tothe position of
“EJECT” (the center part of the terminal). (Figure 2)
2. Assembly the boss at the position switch to the rectangular hole at
the main gear. (Figure 1)
