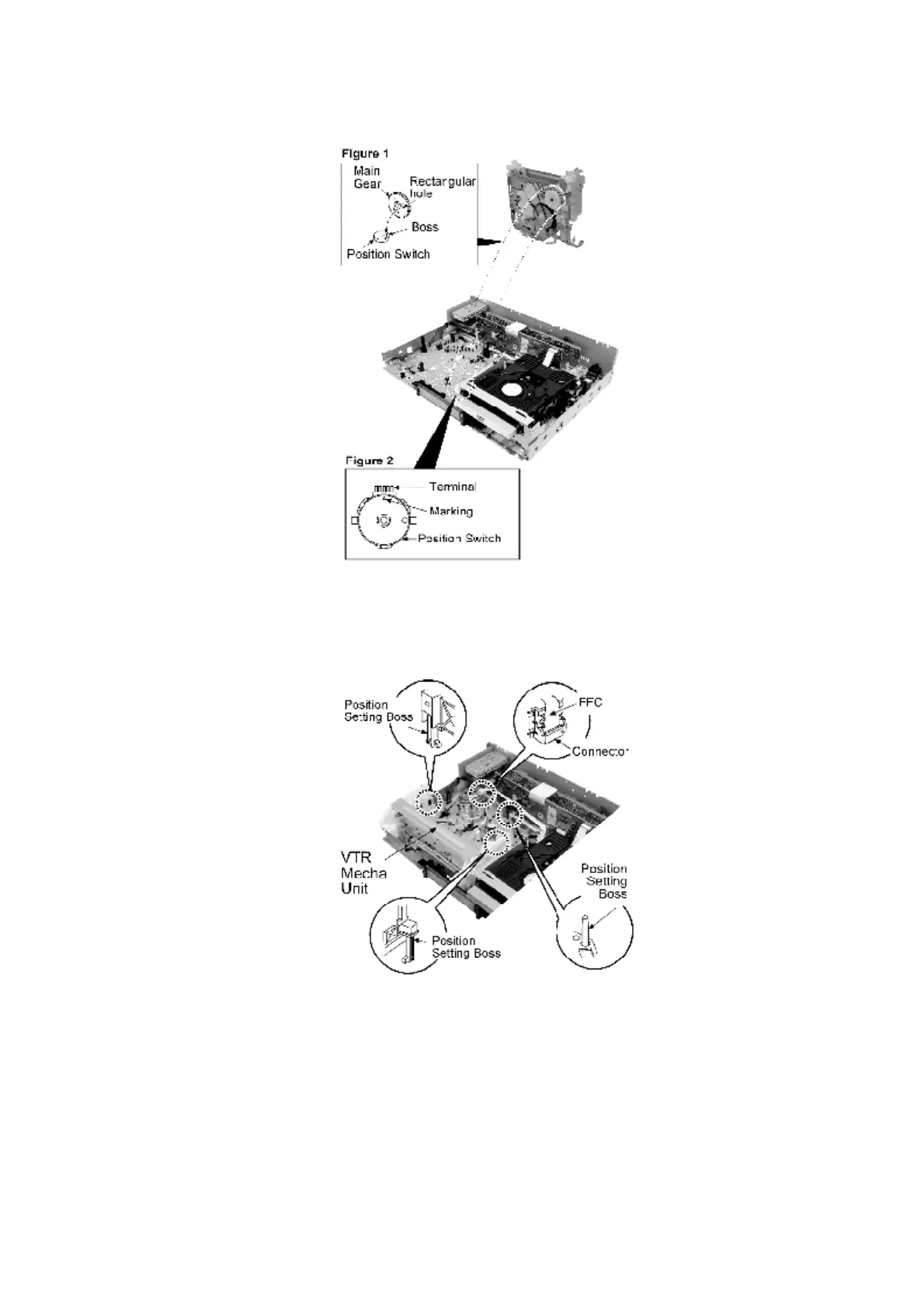

3. Slowly join back the VTR Mecha Unit to fit the position setting
boss (3 locations) on the Main unit.
4. Make sure the FFC insert to the the connector (P5001).
16.5. Removal of DVD Mecha Unit
- Follow the (Step 1) to (Step 2) of item 16.2
- Follow the (Step 1) to (Step 2) of item 16.3
Step 1: Remove all the screws.
55
