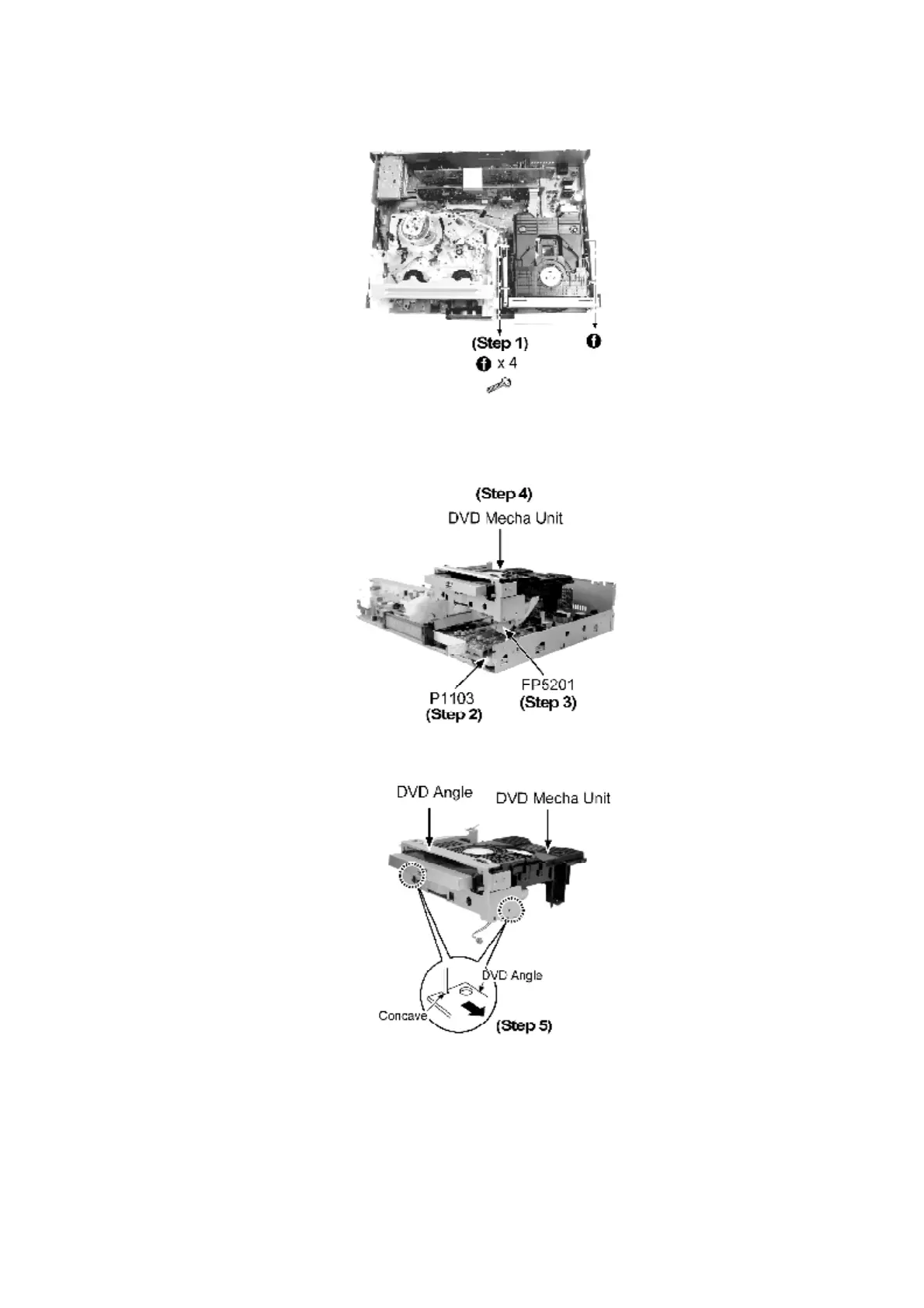

Step 2: Remove the connector (P1103).
Step 3: Detach the FFC (FP5201).
Step 4: Lift up DVD Mecha Unit.
Step 5: Remove the concave of DVD angle as arrow shown below.
16.6. Removal of DVD Module (2) P.C.B.
- Follow the (Step 1) to (Step 2) of item 16.2
- Follow the (Step 1) to (Step 2) of item 16.3
