- Follow the (Step 1) to (Step 4) of item 16.5

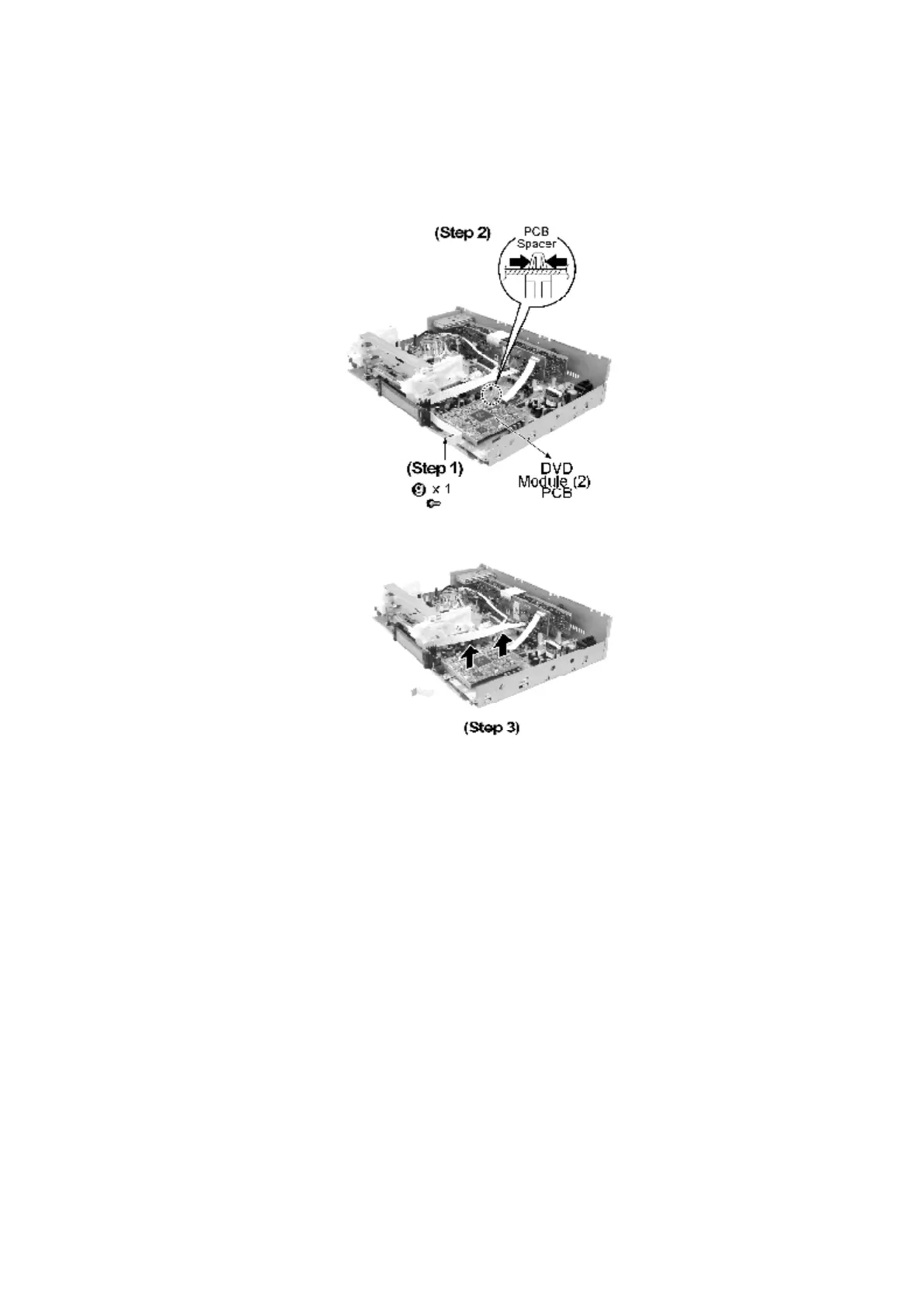

Step 1: Remove all the screws.
Step 2: Press the PCB Spacer as arrow shown and lift up the DVD Module (2) P.C.B.
Step 3: Remove the DVD Module (2) P.C.B. as arrow shown below.
16.7. Removal of Tuner, DSP, Regulator, Input, Power and Main
P.C.B.
- Follow the (Step 1) to (Step 2) of item 16.2
- Follow the (Step 1) to (Step 2) of item 16.3
- Follow the (Step 1) to (Step 8) of item 16.4
- Follow the (Step 1) to (Step 5) of item 16.5
- Follow the (Step 1) to (Step 3) of item 16.6
Step 1-2: Remove all the screws.
57
