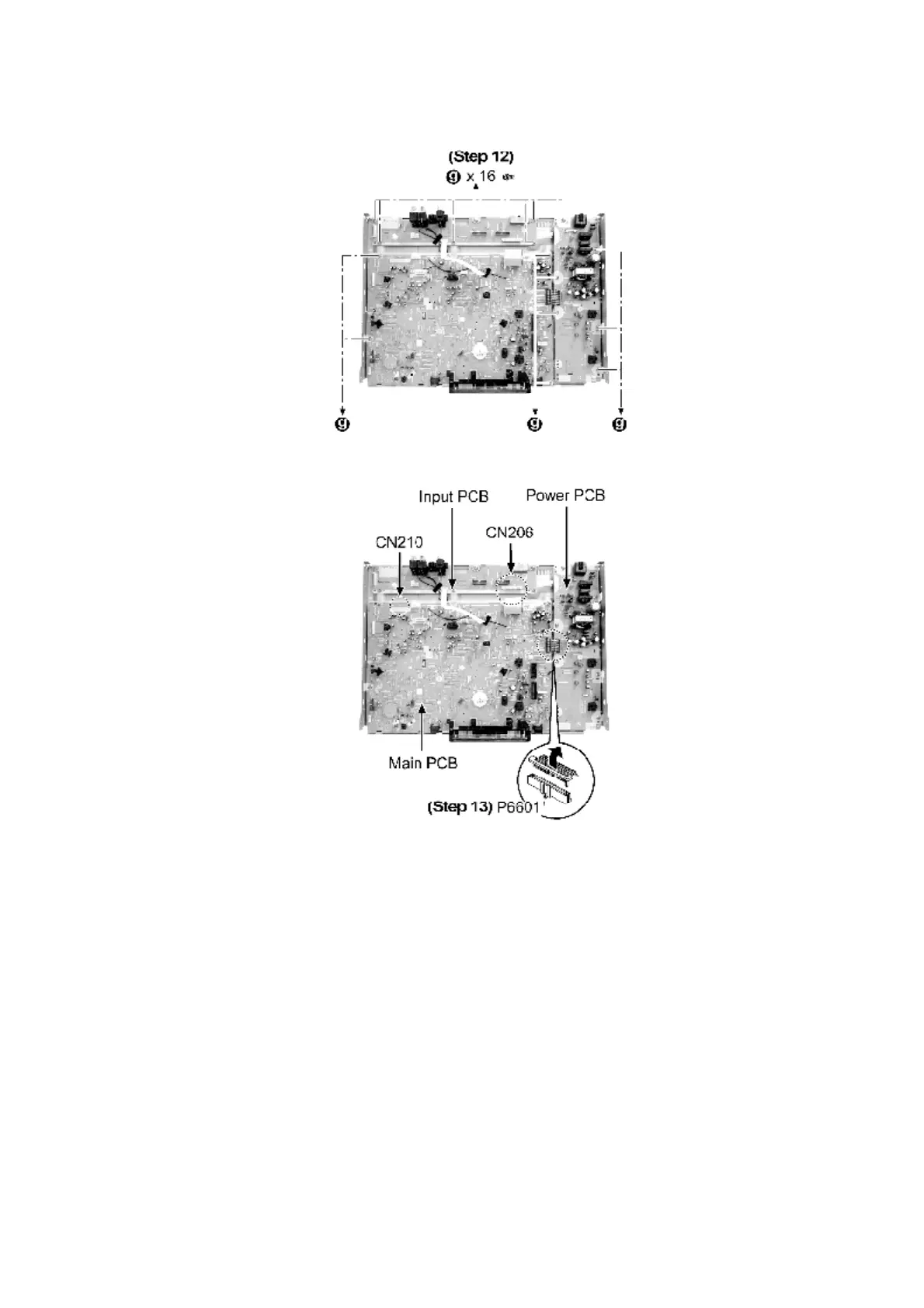

Step 13: Remove all the connectors (CN201, CN206 and P6601).
16.8. Removal of Traverse Deck Unit and Optical Pickup
- Follow the (Step 1) to (Step 2) of item 16.2
- Follow the (Step 1) to (Step 2) of item 16.3
- Follow the (Step 1) to (Step 5) of item 16.5
Step 1: While opening and holding down the stopper, slide the catches in order to remove the
clamp plate unit.
