[Note]

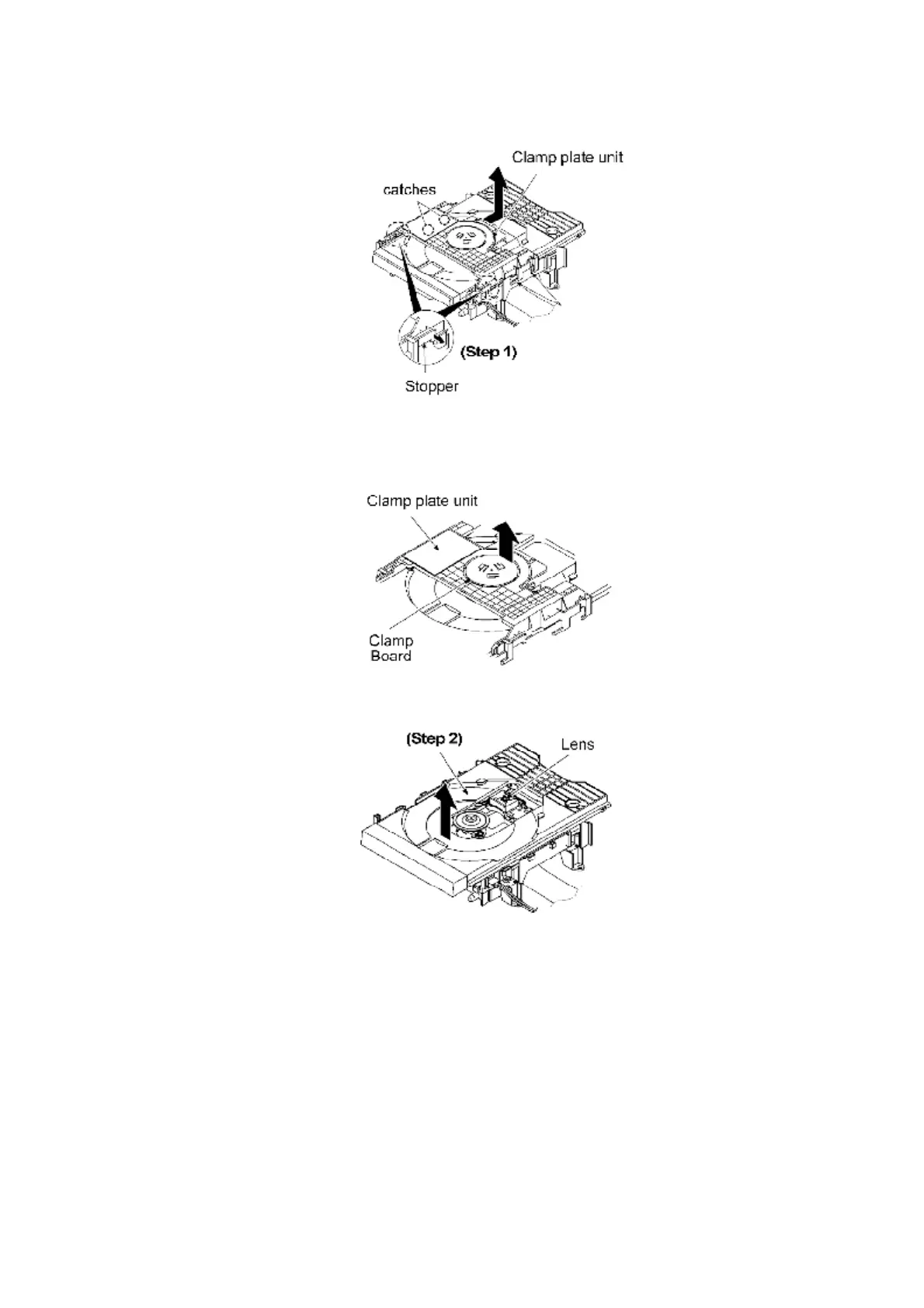

When the traverse deck unit is set to UP, the clamper magnet is activated, In this case, raise the
clamp board in order to remove the clamp plate unit.
Step 2: Lift upward the disc tray to remove it.
Step 3: Remove all the catches and pull out the traverse deck unit.
