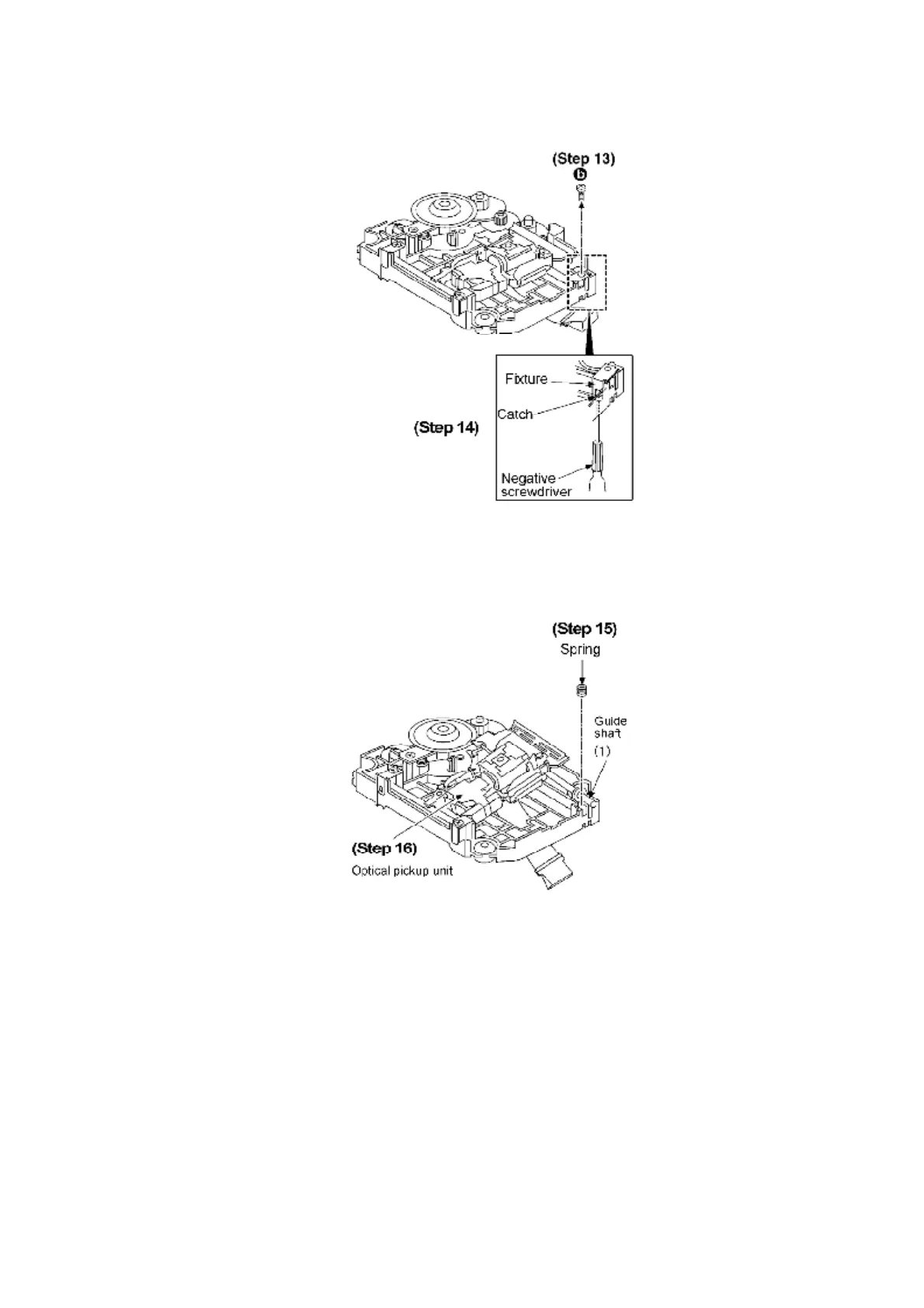

Step 15: Remove the spring.
Step 16: Lift up the optical pickup unit and remove the guide shaft (1).
[Note]
Do not lose the spring
Step 17: Remove the optical pickup unit.
Step 18: Pull out the guide shaft (1).
[Note]
1. Do not shock optical pickup as the structure uses a high precision
technology.
2. Do not touch the lens of the optical pickup.
65
