the above diagram.

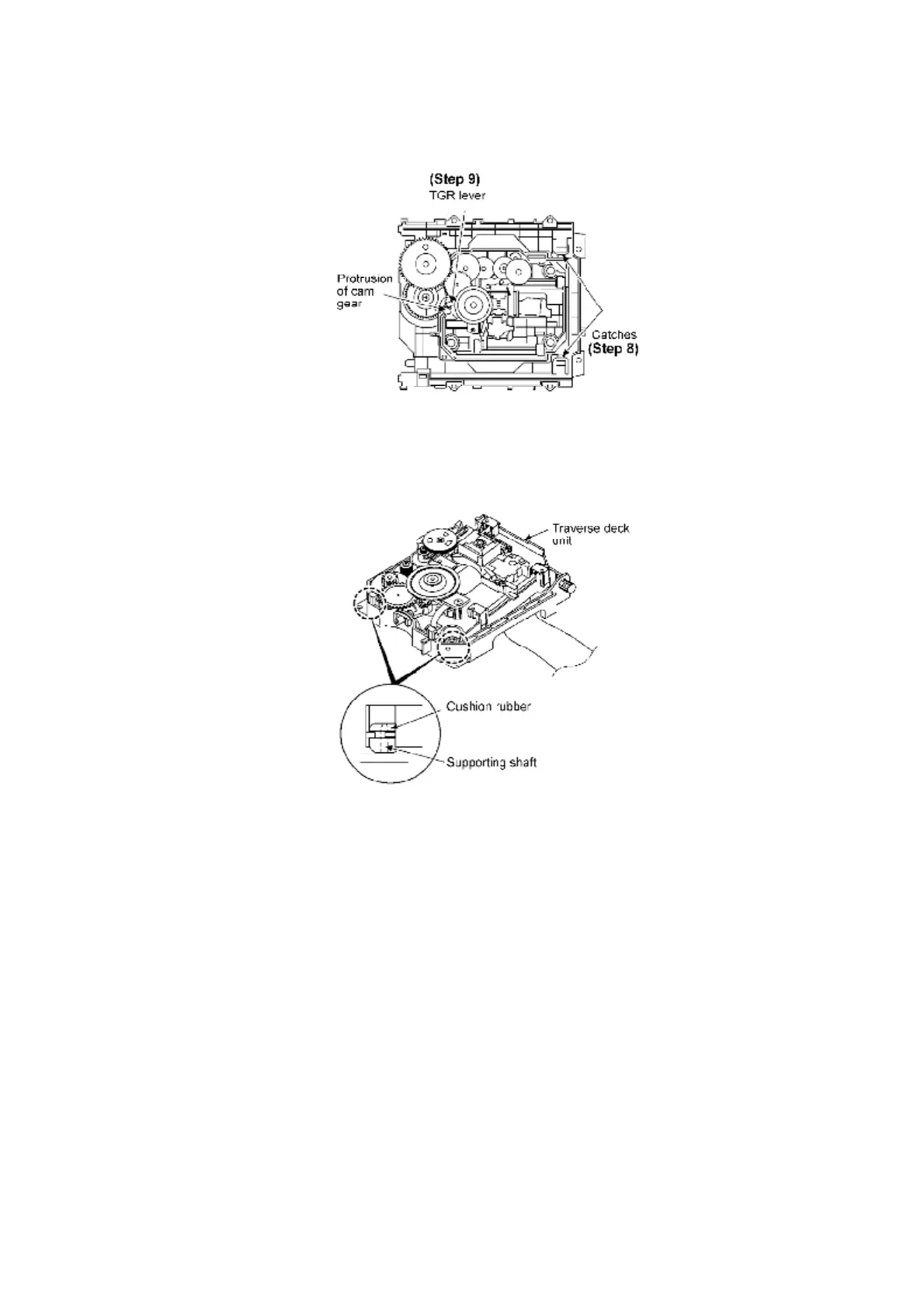

[Precaution to Be Taken During Installation of Traverse Deck Unit]
- For cushion rubber, handle with care to avoid distortion and
turning up when inserting into the supporting shaft.
[Installation of Disc Tray]
- For installation, position the protrusion of the mechanism chassis
to the most front surface of the disc tray groove.
69
