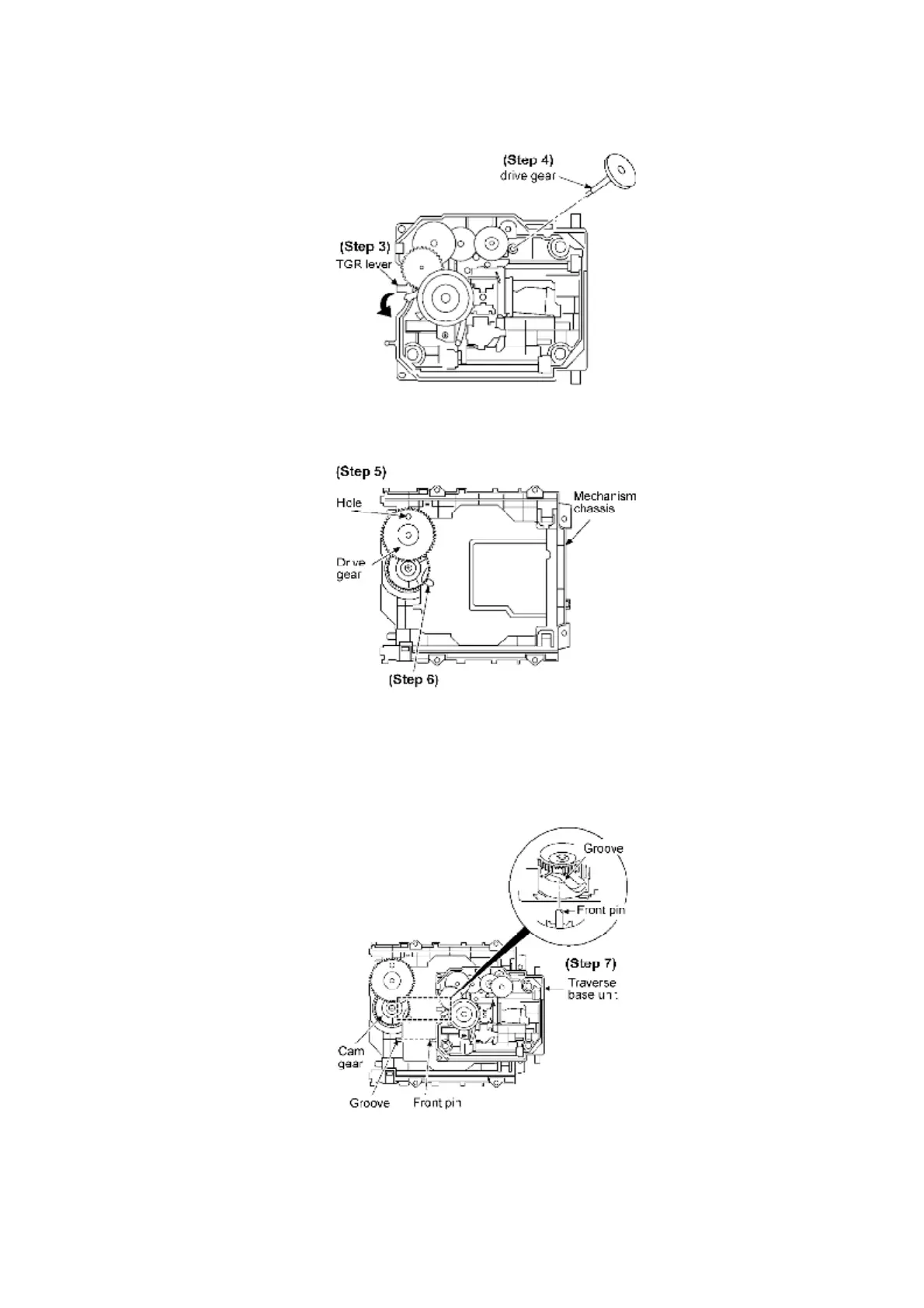

Step 5: Put together the holes of drive gear and mechanism chassis.
Step 6: Position the protrusion of cam gear as shown in the above diagram.
Step 7: Attach the traverse base unit to the mechanism chassis.
- Insert the front pin to the groove of the cam gear.
- Insert the protrusion of the traverse base unit to the groove of
mechanism chassis
Step 8: Push into the traverse base unit and hook on to the two clutches.
Step 9: Check that the TGR lever and the protrusion of the cam gear are positioned as shown in
68
