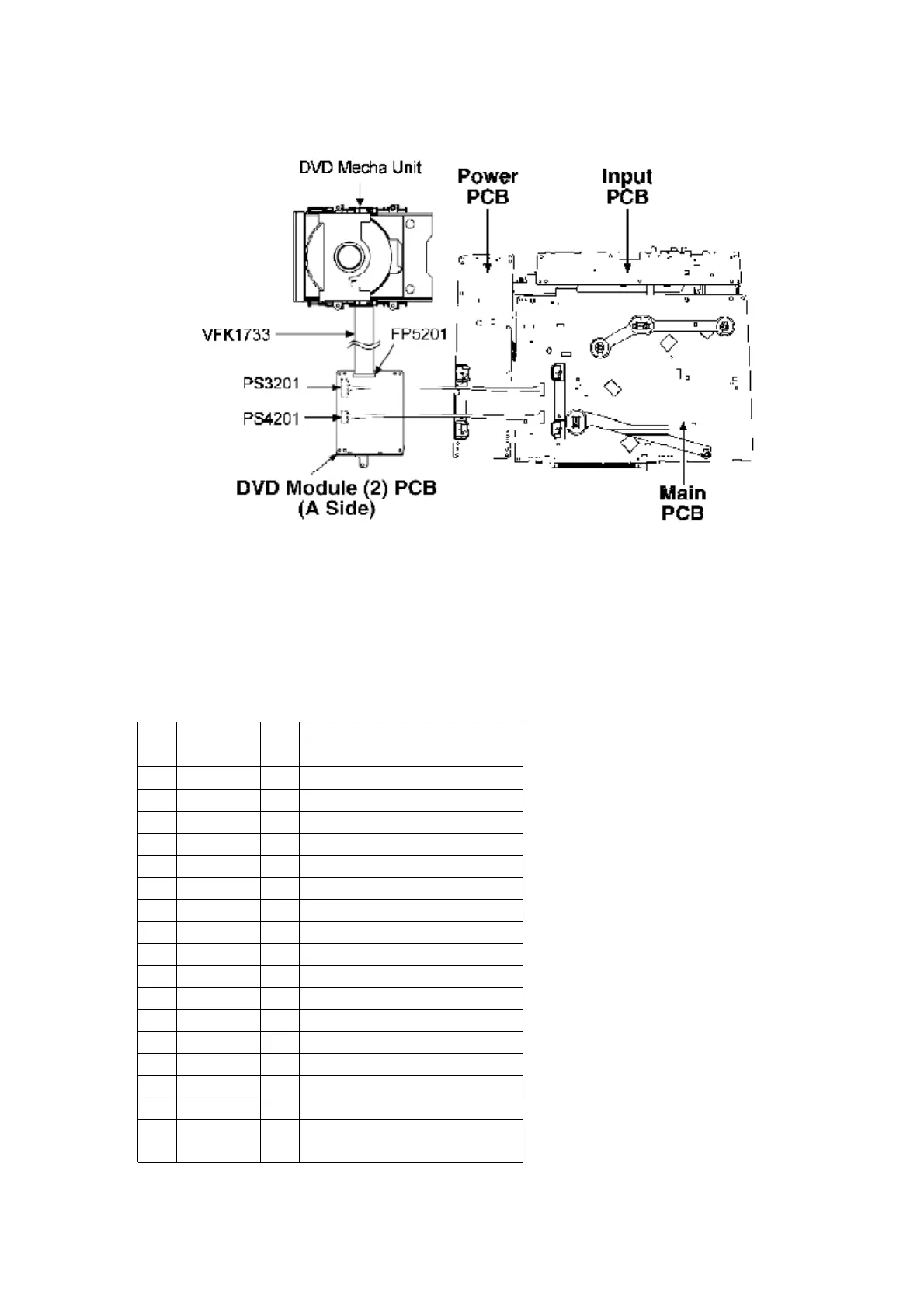

18. Illustration of IC’s, Transistors and Diodes
19. Terminal Function of IC’s
19.1. IC101(C2CBGF000166):Micro Controller
PIN
No.
Mark
I/O
Function
1
NC O No Connection (Output L)
2 NC O No Connection (Output L)
3 NC O No Connection (Output L)
4 NC O No Connection (Output L)
5 NC O No Connection (Output L)
6 NC O No Connection (Output L)
7 NC O No Connection (Output L)
8 BYTE I VSS (GND)
9 CNVss - VSS (GND)
10 NC O No Connection (Output L)
11 NC O No Connection (Output L)
12 RESET I System Reset Input
13 XOUT O Main clock output (10MHz)
14 Vss - GND (0V)
15 XIN I Main clock input (10MHz)
16 Vcc - Power supply (5V)
17 /NMI I Connect to VCC, external
interrupt I/P
