Item FL Display Key Operation
Mode Name Description Front Key
Doctor Mode To enter into Doctor Mode for
checking of various items and
displaying EEPROM and firmware
version.
Note: The micro-processor version as
shown is an example. It will be revise
when there is an updates.

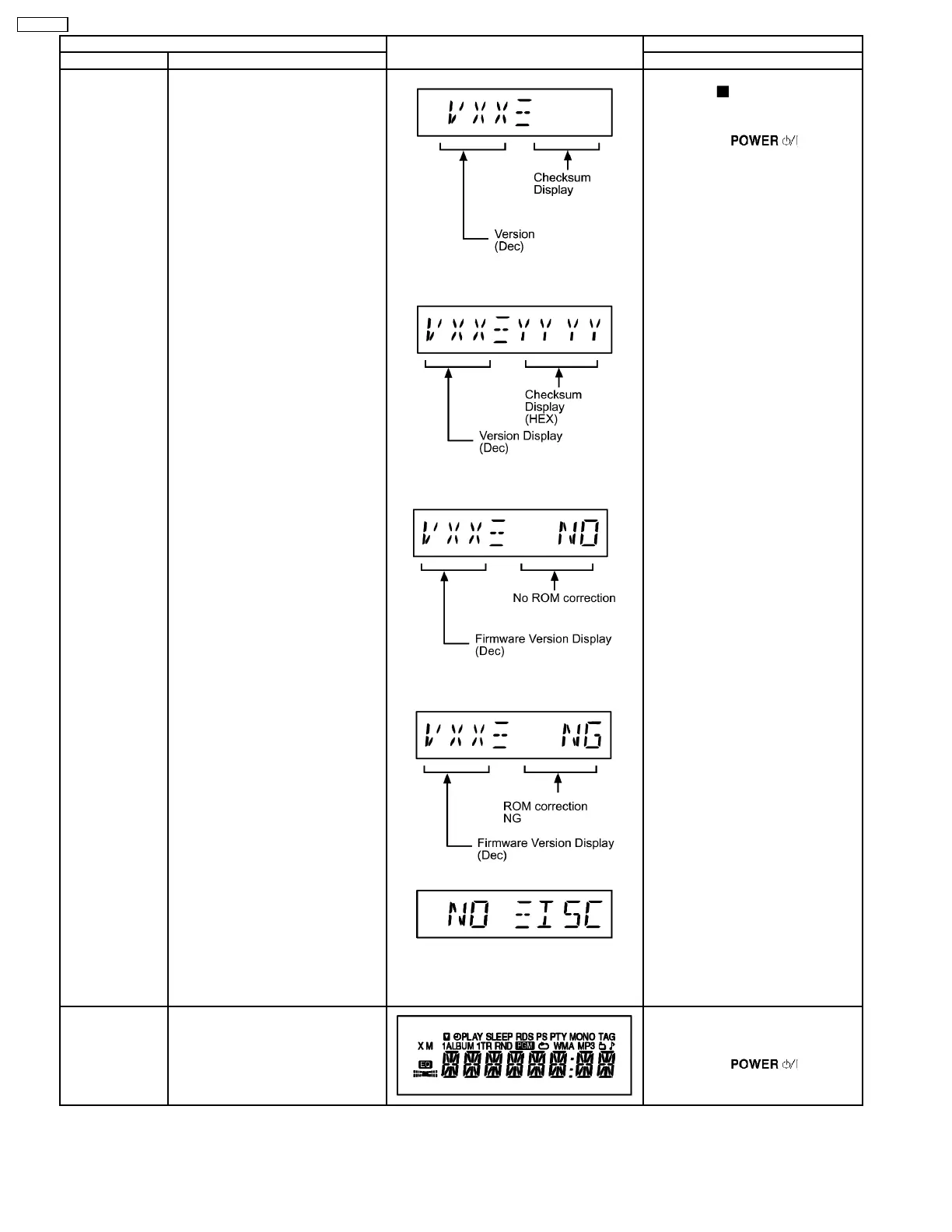

FL Display sequence
Display 1 fi 2
DIsplay 1
Checksum (Condition 1)
When EEPROM IC detected and has ROM
correction.
Checksum (Condition 2)
When EEPROM IC is detected and there is
no ROM correction.
Checksum (Condition 3)
When EEPROM IC is detected and has ROM
correction but not working properly.
Display 2
The Check Sum of EEPROM and firmware
version will be display for 1 sec.
* ROM correction
** Firmware version No:
In any mode:
1. Press [
] button on main unit
follow by [4] and [7] on remote
control.
To exit, press [
] button on
main unit or remote control.
FL Display Test To check the FL segments display (All
segments will light up)
In doctor mode:
1. Press [DIMMER] button on remote
control.
To exit, press [
] button on
main unit or remote control.
