Panasonic SC-EN37P

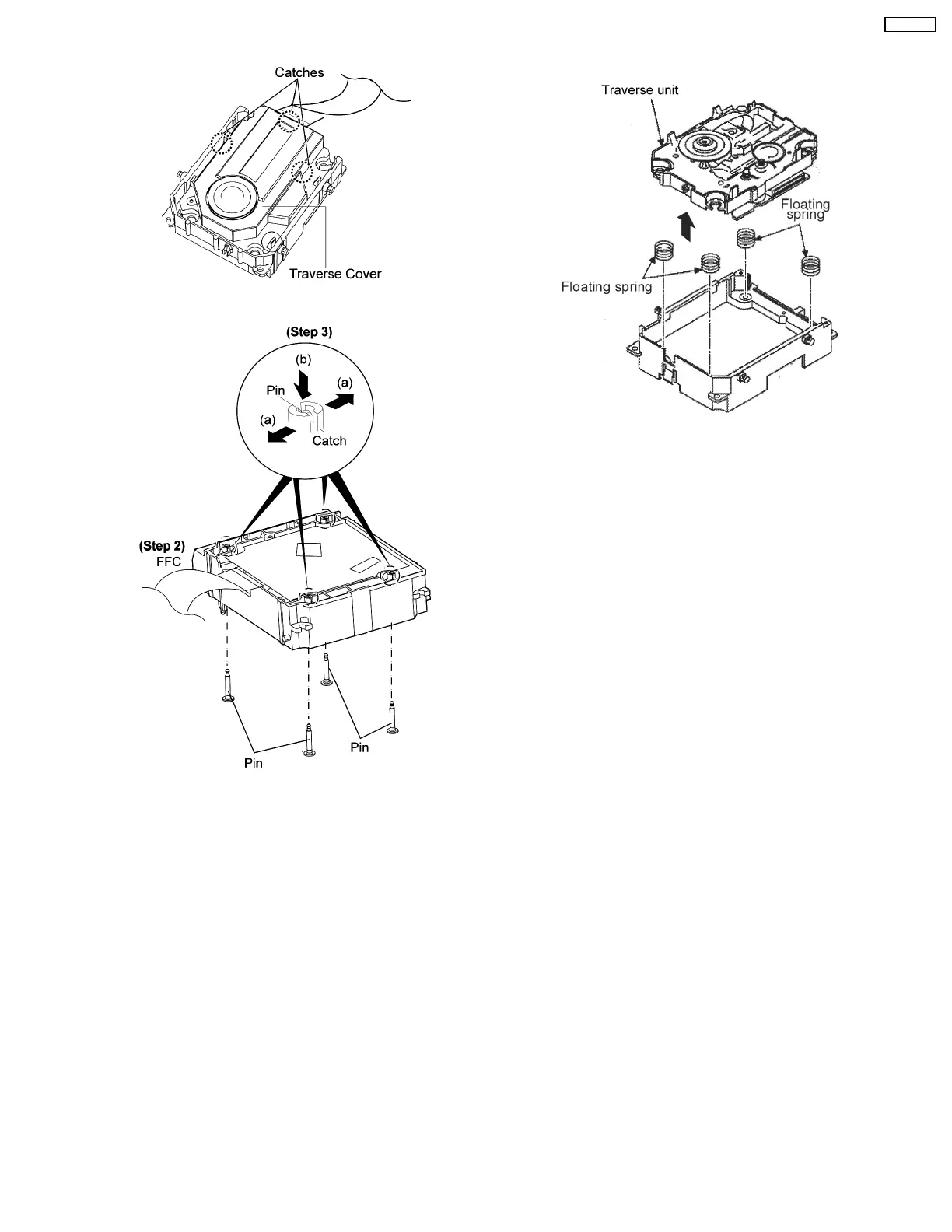

Step 1 Release 3 catches and remove the Traverse Cover.
Step 2 Pull out FFC.
Step 1 Desolder the terminal.
Step 3 Widening the catch, push the fixed pin in. (a) fi (b)
Step 4 Lift up the traverse unit to remove it.
Caution:
Keep the floating springs (x 4) in safe place & avoid losing
them.
9.11. Disassembly of CD Servo P.C.B.
· Follow the (Step 1) - (Step 3) of Item 9.4 - Disassembly of rear cabinet
· Follow the (Step 1) - (Step 2) of Item 9.7 - Disassembly of Main P.C.B. , Sensor P.C.B. & Tuner P.C.B.
· Follow the (Step 1) of Item 9.8 - Disassembly of Switch P.C.B. & Traverse Unit
· Follow the (Step 1) - (Step 4) of Item 9.9 - Disassembly of Power Switch P.C.B. & Tact Switch P.C.B.
