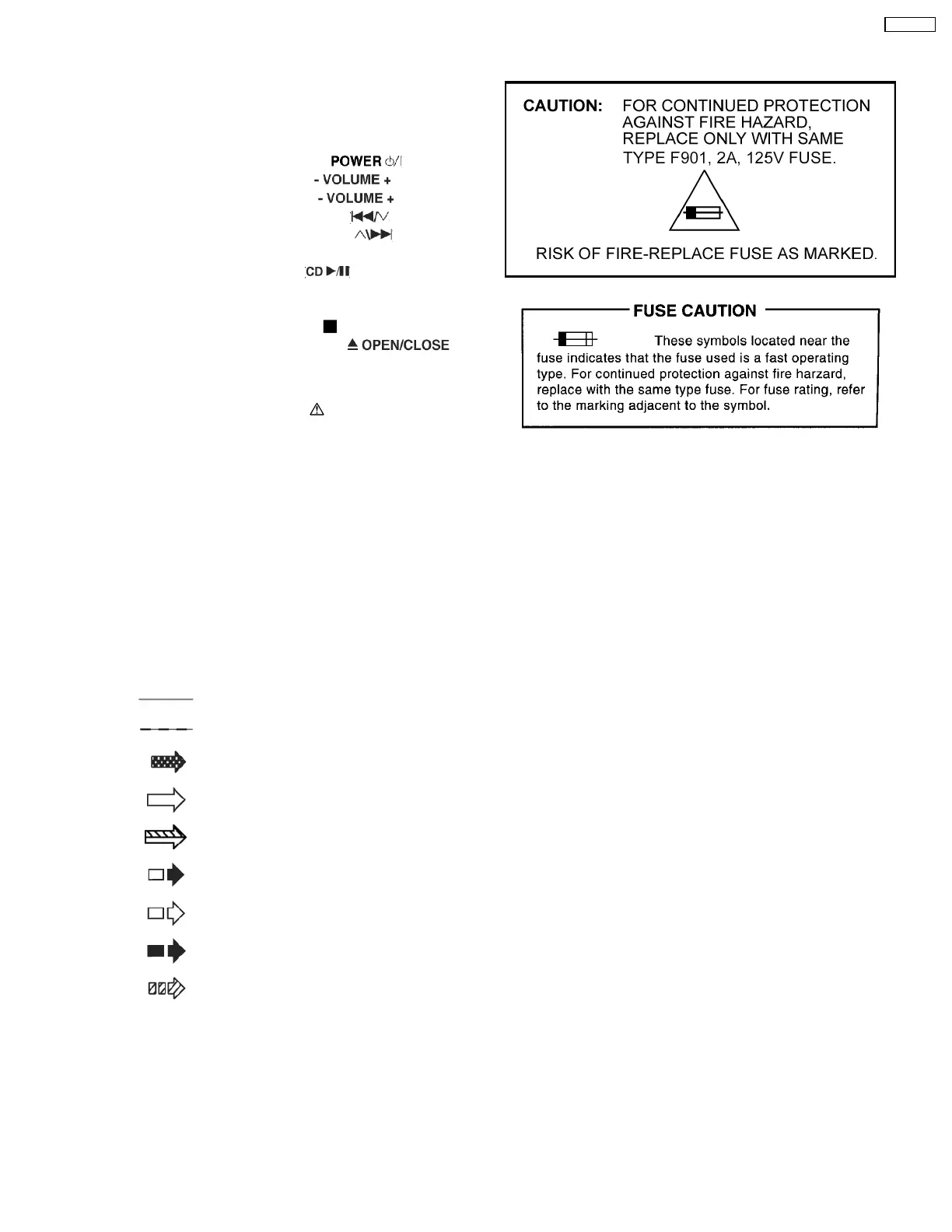

(All schem atic diagrams may be modified at any time with the
development of the new technology)
S351 : CD TOP Switch
S352 : CD BOTTOM Switch
S801 : POWER Switch (
)
S802 : VOL - Switch (
)
S803 : VOL + Switch (
)
S804 : REV_SKIP Switch (
)
S805 : FWD_SKIP Switch (
)
S806 : TUNER/XM Switch
S807 : CD Switch (
)
S808 : MUSIC_PORT Switch (FM/AM/MUSIC
PORT)
S809 : STOP Switch (
)
S810 : CD_OP/CL Switch (
)
S7201 : REST Switch
· Importance safety notice :
Components identified by
mark have special
characteristics important for safety.
Furthe rmore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-
noise (resistors), etc. are used.
When replacing any of components, be sure to use only
manufacturer´s specified parts shown in the parts list.
· Capacitor values are in microfa rad(µF) unless specified
otherwise, F=Fara d, pF=Pico-Farad
Resistance values are in ohm(W ), unless specified
otherwise, 1K=1,000W , 1M=1,000KW
· Voltage and Signal lines:
: +B Signal line
: -B Signal line
: CD-DA signal line
: CD signal line
: Main signal line
: FM/AM signal line
: AM signal line
: FM signal line
: AUX signal line
15 Notes of Schematic Diagrams
41
SC-EN37P
