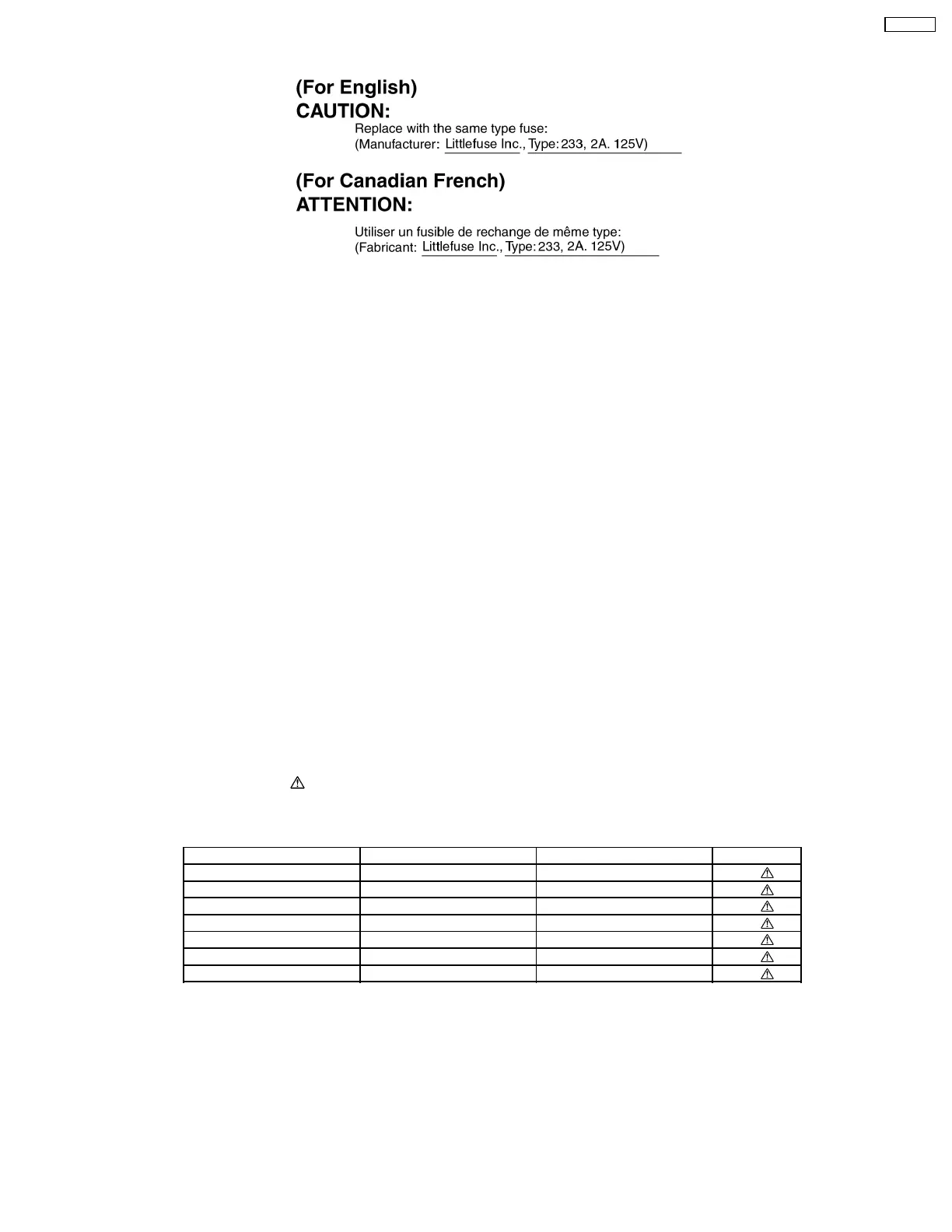

1.2. Caution for fuse replacement
1.3. Before repair and adjustment
Disconnect AC power, discharge Power Capacitors C611 and C616 through a 10W , 1W resistor to ground.
DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Current consumption at AC 120V, 60 Hz in NO SIGNAL mode (volume min at CD mode) should be ~ 135mA.
1.4. Protection Circuitry
The protection circuitry may have operated if either of the following conditions are noticed:
· No sound is heard when the power is turned on.
· Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note :
When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.
1.5. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by
in the Schematic Diagrams & Replacement Parts List. It is essential that these critical parts
should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design
without permission of manufacturer.
Table 1
Reference No. Part No. Part Name & Description Remarks
A2 K2CB2CB00018 AC CORD [M]
F901 K5D202APA008 FUSE [M]
IP601 K5G302AA0002 FUSE PROTECTOR [M]
IP602 K5G251A00008 FUSE PROTECTOR [M]
JK901 K2AB2B000007 FUSE [M]
L901 ELF15N035AN LINE FILTER [M]
T901 G4C5ABD00006 TRANSFORMER [M]
5
SC-EN37P
To Next Page
