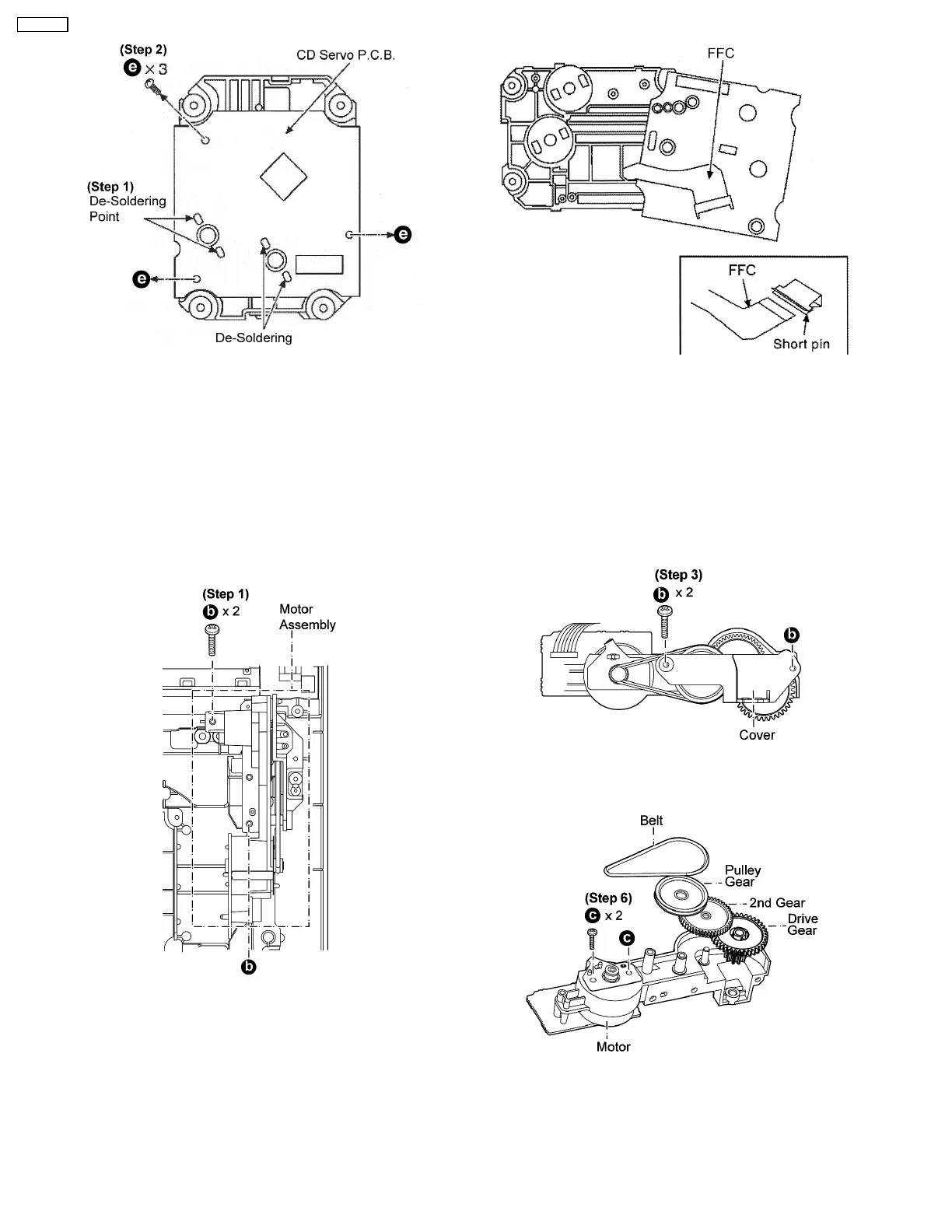

Step 2 Remove 3 screws.
Step 3 Flip the CD Servo P.C.B. over to one side.
Step 1 Remove 2 screws.
· Disassembly of motor assembly (gears & belt)
Step 2 Remove motor assembly.
Step 3 Remove 2 screws.
Step 4 Detach FFC out from the connector.
Step 5 Attach a short pin to the unit.
Caution:
Insert a short pin into FFC of the optical pickup. [See “Handling
Precautions for traverse unit”].
Step 4 Remove the belt.
Step 5 Remove pulley gear, 2nd gear and drive gear.
Step 6 Remove 2 screws at motor unit.
Step 7 Remove 1 screw and unsolder 3 points at gear base.
9.12. Disassembly of Motor Unit & Motor P.C.B.
· Follow the (Step 1) - (Step 3) of Item 9.4 - Disassembly of rear cabinet
· Follow the (Step 1) - (Step 2) of Item 9.7 - Disassembly of Main P.C.B. , Sensor P.C.B. & Tuner P.C.B.
24
SC-EN37P
