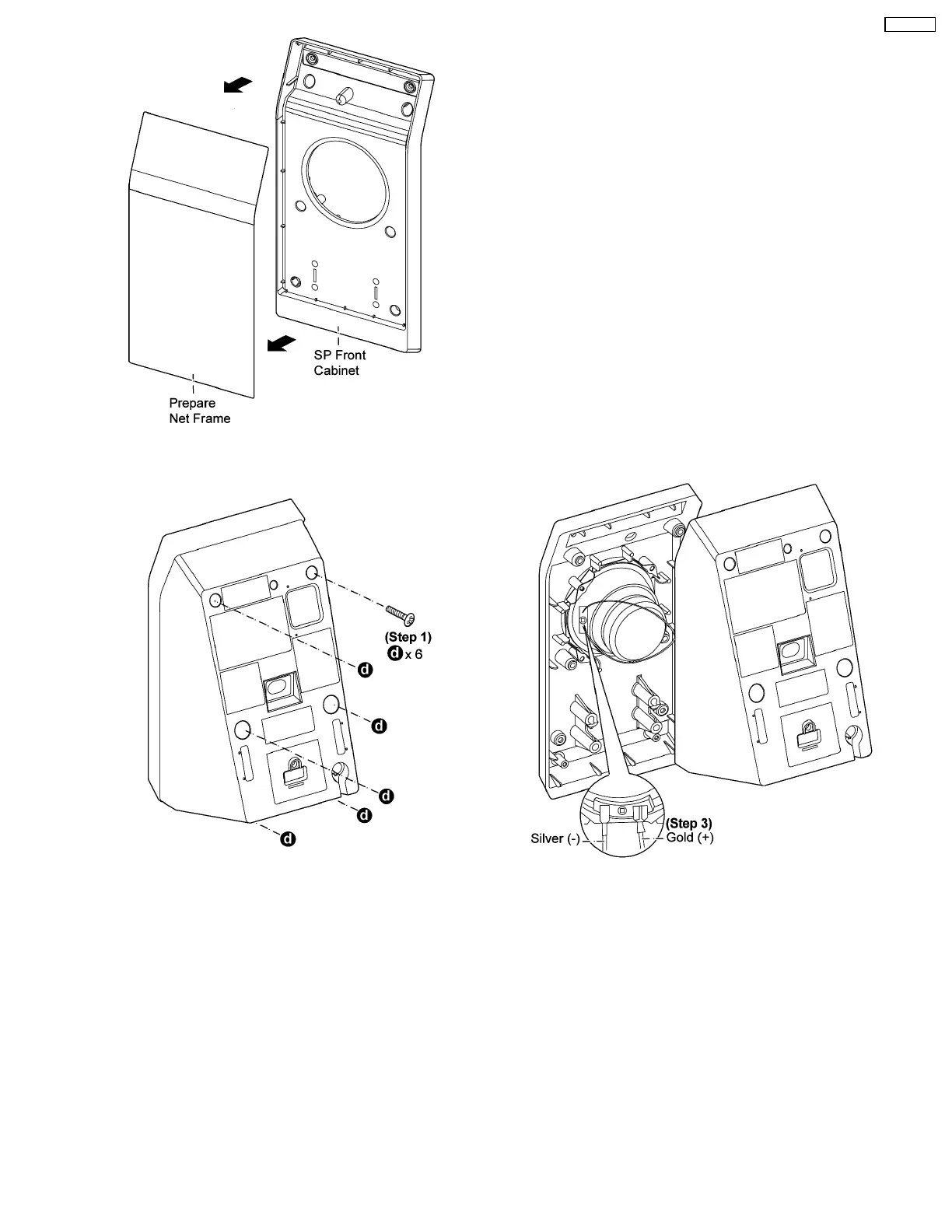

Step 1 Remove 6 screws.

Step 2 Remove the back cabinet ass’y..

Step 3 Unsolder the lead wires.

Step 4 Remove 4 screws.

9.14.2. Disassembly of the rear cabinet (SB-EN37A) - (L)

27

SC-EN37P
