Simple Setup
≥ Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
≥ Turn the television off before connecting, and refer to the television’s operating instructions.
To improve picture quality, you can change the video signal output from the SCART (AV) terminal.
≥ Select “RGB/No Output” (RGB only) from QUICK SETUP (➜ page 16).
≥ Set “Video Output” to “Off” (➜ page 32, “HDMI” menu).
≥ This connection will also enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜ page 39).
≥Do not use the HDMI cable when you use the scart cable for the connection.

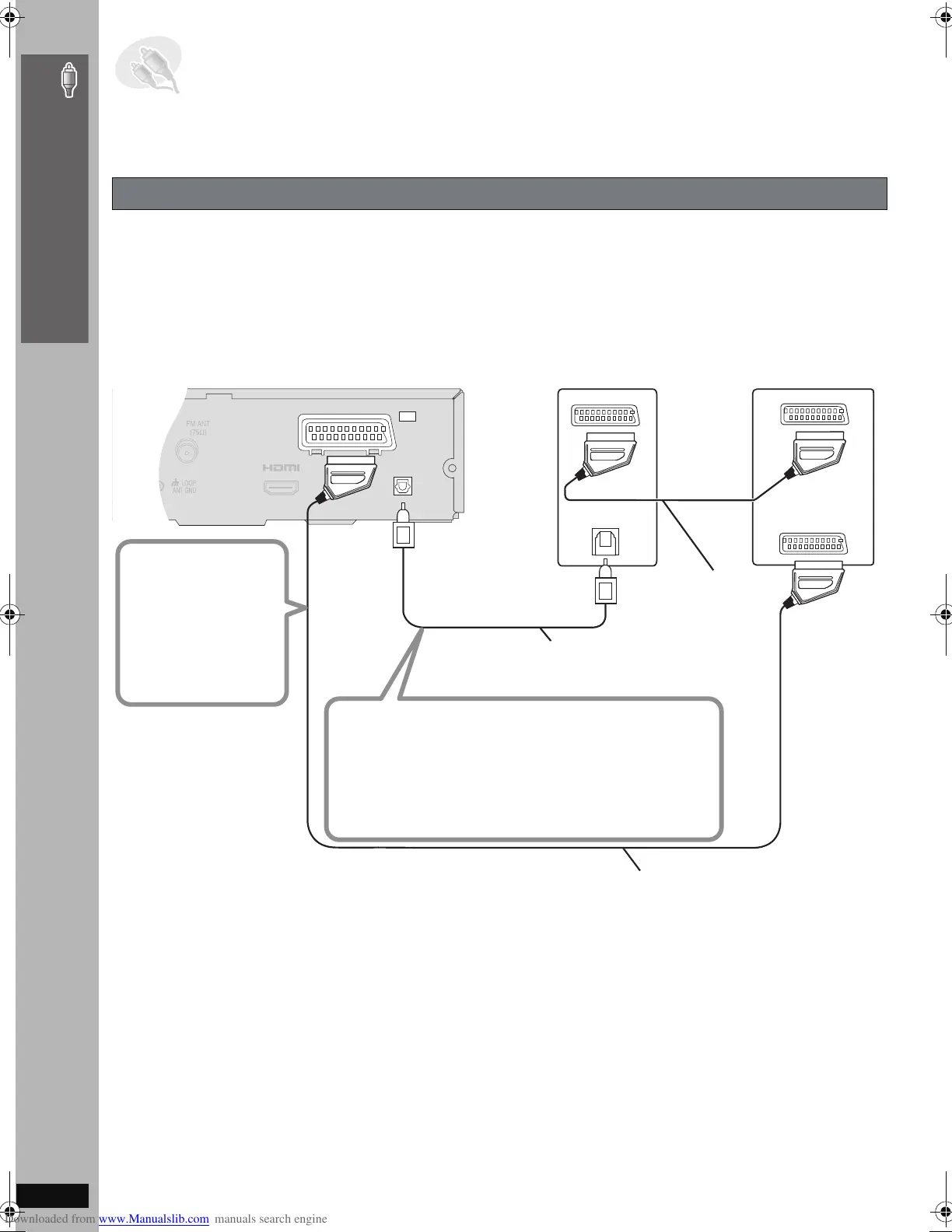

Ex.1 Connecting with your television and Set Top Box
STEP4 Audio, video and radio connections
VIDEO
OUT
DEOS-VIDEO
TOUT
AV OUT
OPTICAL IN
AV
OPTICAL
OUT
AV 2
AV 1
AV OUT
Television
(not included)
Back of this unit
Scart cable (not included)
≥To listen to the sound from the
television, select the appropriate audio
out (e.g., Monitor) on the television.
Optical digital audio cable (not included)
≥Do not bend sharply when connecting.
Set Top Box
(not included)
Optical-In for 5.1 ch surround
This unit can decode the surround signal from the set
top box.
Press [EXT-IN] to select the “D-IN” audio input on the
remote control.
≥Optical input settings (➜ page 39)
Sound from the
television
Press [EXT-IN] to
select the “TV” audio
input on the remote
control (➜ page 39).
Scart cable
(not included)
Audio, video and radio connections
