Simple Setup
Conserving power
This unit consumes a small amount of power, even when it is turned off (approx. 0.5 W). To save power when the
unit is not to be used for a long time, unplug it from the household mains socket.
You will need to reset some memory items after plugging in the unit.
[Note]
The included AC mains lead is for use with this unit only. Do not use it with other equipment. Also, do not use cords
for other equipment with this unit.

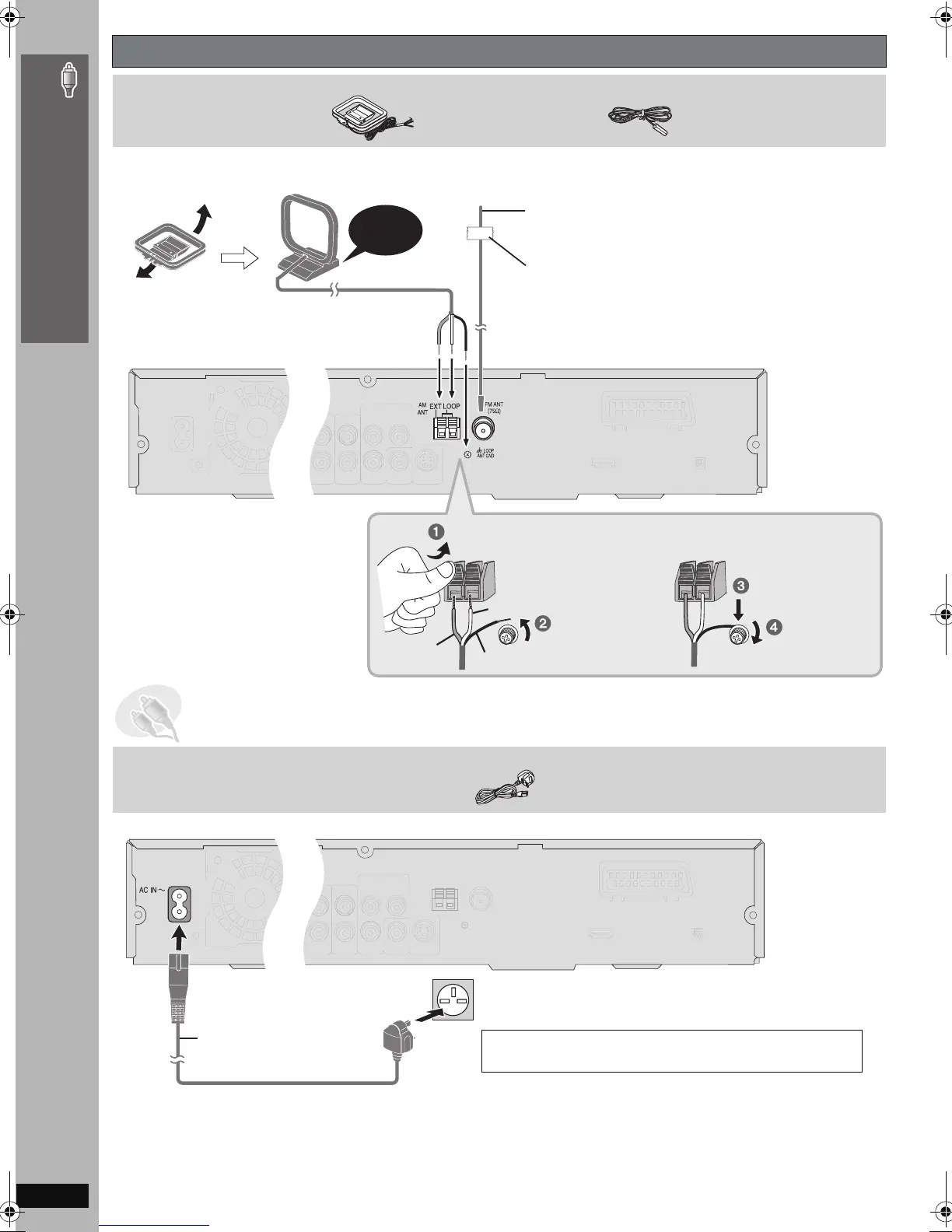

Connecting the FM and AM antennas
Adhesive tape
This unit
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other wires and cables.
Click!
AM loop antenna FM indoor antenna
FM indoor antenna
Affix this end of the antenna where
reception is best.
≥ Using an outdoor antenna (optional) (➜ page 35).
Re-tighten the
terminal screw.
Loosen the
terminal screw with
a Phillips-head
screwdriver.
White
Red
Black
While pushing, insert the wire fully.
STEP5 AC mains lead connection
AC mains lead
To household mains socket
(AC 230–240 V, 50 Hz)
AC mains
lead
≥ Connect the AC mains lead after all other connections are complete.
This unit
BE SURE TO READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 4 BEFORE CONNECTION.
Audio, video and radio connections / AC mains lead connection
