RQT8724
13
Simple Setup

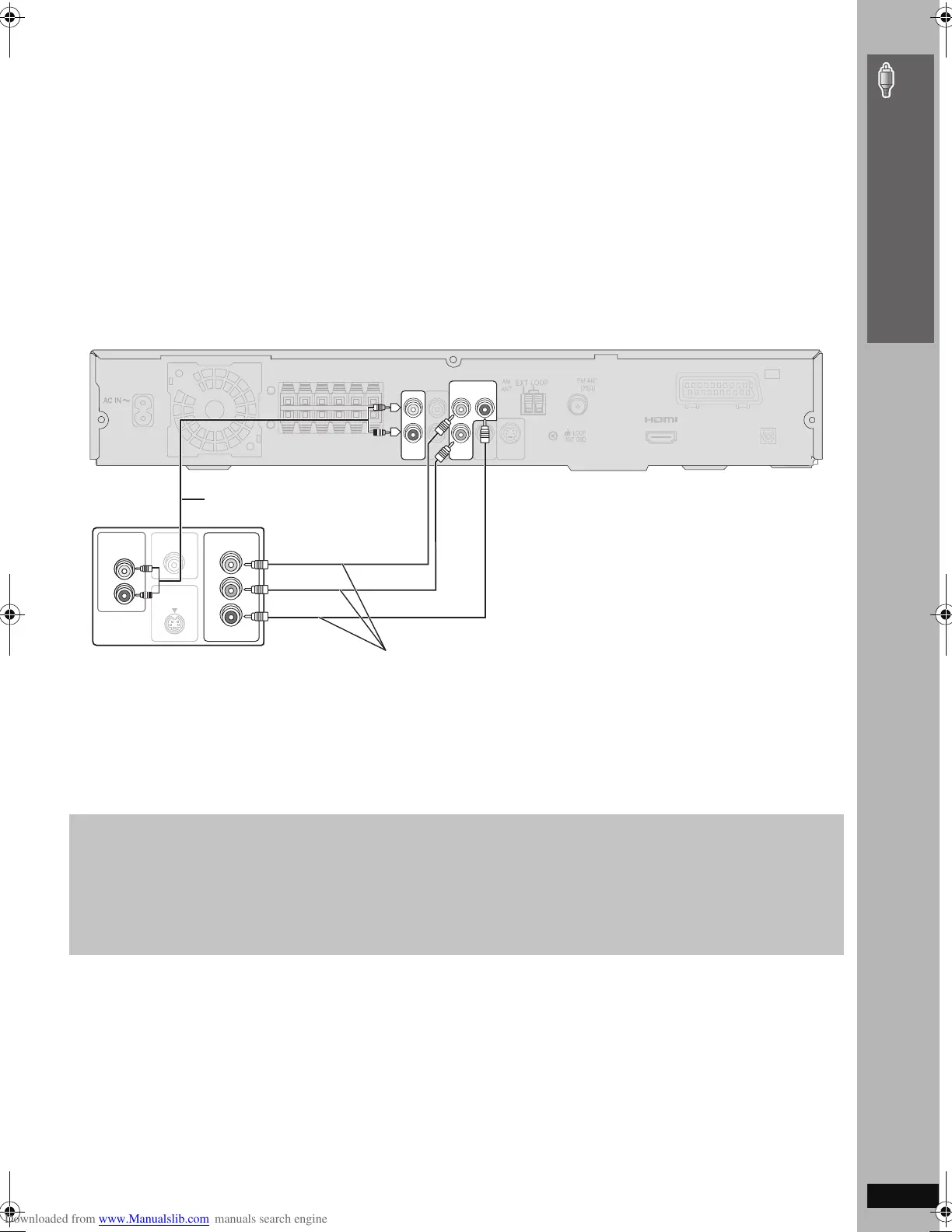

∫ Television with COMPONENT VIDEO IN terminals
The COMPONENT VIDEO OUT terminals provides a
purer picture than the S-VIDEO OUT terminal. These
terminals can be used for either interlaced or
progressive output. Connection using these terminals
outputs the colour difference signals (P
B/PR) and
luminance signal (Y) separately in order to achieve high
fidelity in reproducing colours.
≥The description of the component video input
terminals depends on the television or monitor
(e.g. Y/PB/PR, Y/B-Y/R-Y, Y/CB/CR). Connect to
terminals of the same colour.
≥When making this connection, select “Video/YPbPr”
(Video and YPbPr) or “S-Video/YPbPr” (S-Video and
YPbPr) from QUICK SETUP (➜ page 16). If “RGB/No
Output” (RGB only) is selected, the RGB signal is
output from the SCART (AV) terminal, but no signal is
output from the component video output terminals.
To enjoy progressive video
≥Connect to a progressive output compatible television.
1 Set “Video Output” to “Off” (➜ page 32, “HDMI” menu).
2 Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen
(➜ page 28, Picture Menu).
≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible.
Consult the manufacturer if you have another brand of television.
P
B
P
R
Y
R
L
TV
AUDIO
IN
AUX
COMPONENT VIDEO OUT
VIDEO
OUT
S-VIDEO
OUT
AV OUT
OPTICAL IN
AV
r
s
VIDEO IN
S-VIDEO
IN
COMPONENT
VIDEO IN
PR
PB
Y
AUDIO
OUT
L
R
Television
(not included)
Back of this unit
Video cables
(not included)
Audio cable
§
(not included)
§
This audio connection will enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜ page 39).
You can also connect to the AUX terminals on this unit. The TV AUDIO IN and AUX terminals are for external
audio input.
Audio, video and radio connections
8606En_p06-19.f m Page 13 Thursday, March 16, 2006 10:47 AM
