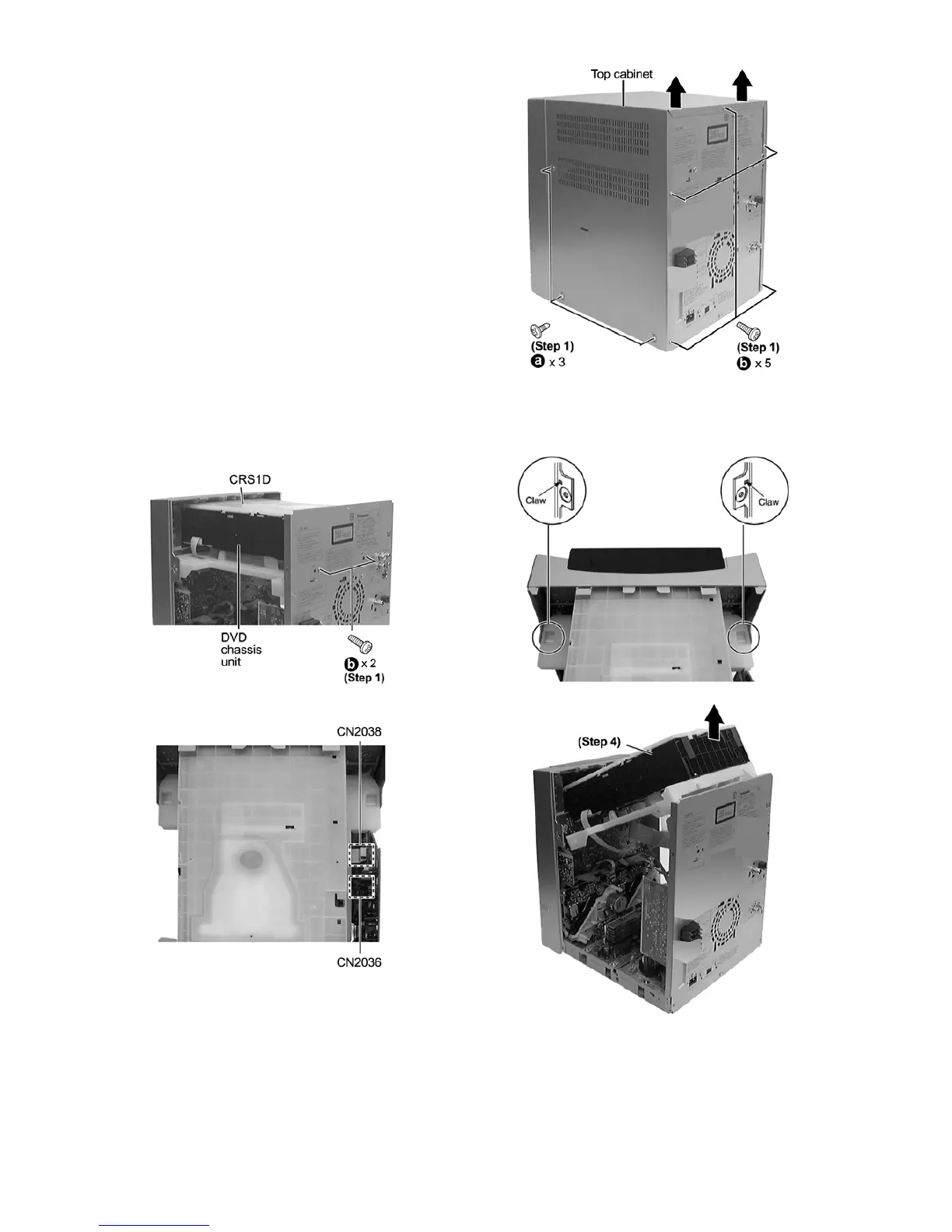

Step 1 Remove 3 screws at each side and 5 screws at rear
panel.
Ste
p 2 Lift up both sides of the top cabinet, push the top
cabine
t towards the rear to remove the top cabinet.
Step 1 Remove 2 screws at rear panel.
Step 2 Detach the FFC cables (CN2038 & CN2036).
Step 3 Release the claws on both ends.
Step 4 Lift the CD changer unit upwards to remove it.
11.4. Disassembly of Top Cabinet
11.5
. Disassembly of CD Changer Unit (CRS1D)
•• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
To Next Page
