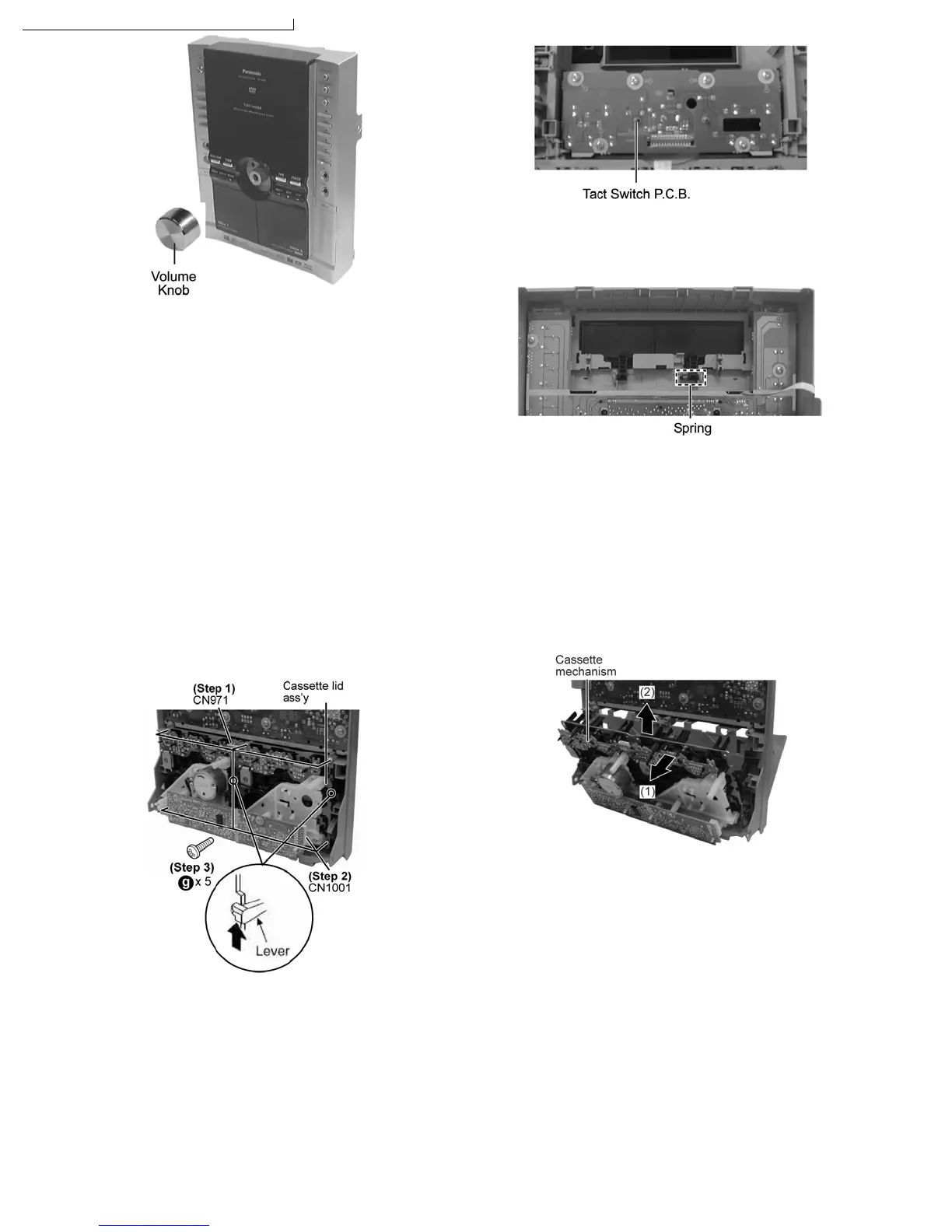

Panasonic SC-TM760 - Disassembly of Lid; Disassembly of Deck Mechanism Unit; Disassembly of Deck P.C.B

Step 8 Remove 6 screws..
Step 1 Detach FFC cable (CN971).
Step 2 Disconnect FFC cable (CN1001).
Step 3 Remove the 5 screws.
Step 1 Remove 2 screws.
11.13.2. Disassembly of Lid
Step 1 Lift the spring sideward.
Step 2 Remove Lid.
Note: Do not misplace the spring.
Step 4 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 5 Tilt the cassette mechanism unit in the direction of
arrow (1), and then remove it in the direction of arrow (2).
Note: For disassembly of parts for deck mechanism unit,
refer to Section 11.18.
11.14. Disassembly of Deck mechanism unit
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
• Follow the (Step 1) - (Step 4) of Item 11.5 - Disassembly of CD/DVD Changer Unit
• Follow the (Step 1) - (Step 4) of Item 11.8 - Disassembly of Front Panel Unit
11.15. Disassembly of Deck P.C.B.
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
• Follow the (Step 1) - (Step 4) of Item 11.5 - Disassembly of CD/DVD Changer Unit
• Follow the (Step 1) - (Step 4) of Item 11.8 - Disassembly of Front Panel Unit
