Panasonic SC-TM760 - Replacement for Cassette Lid; Rectification for Tape Jam Problem

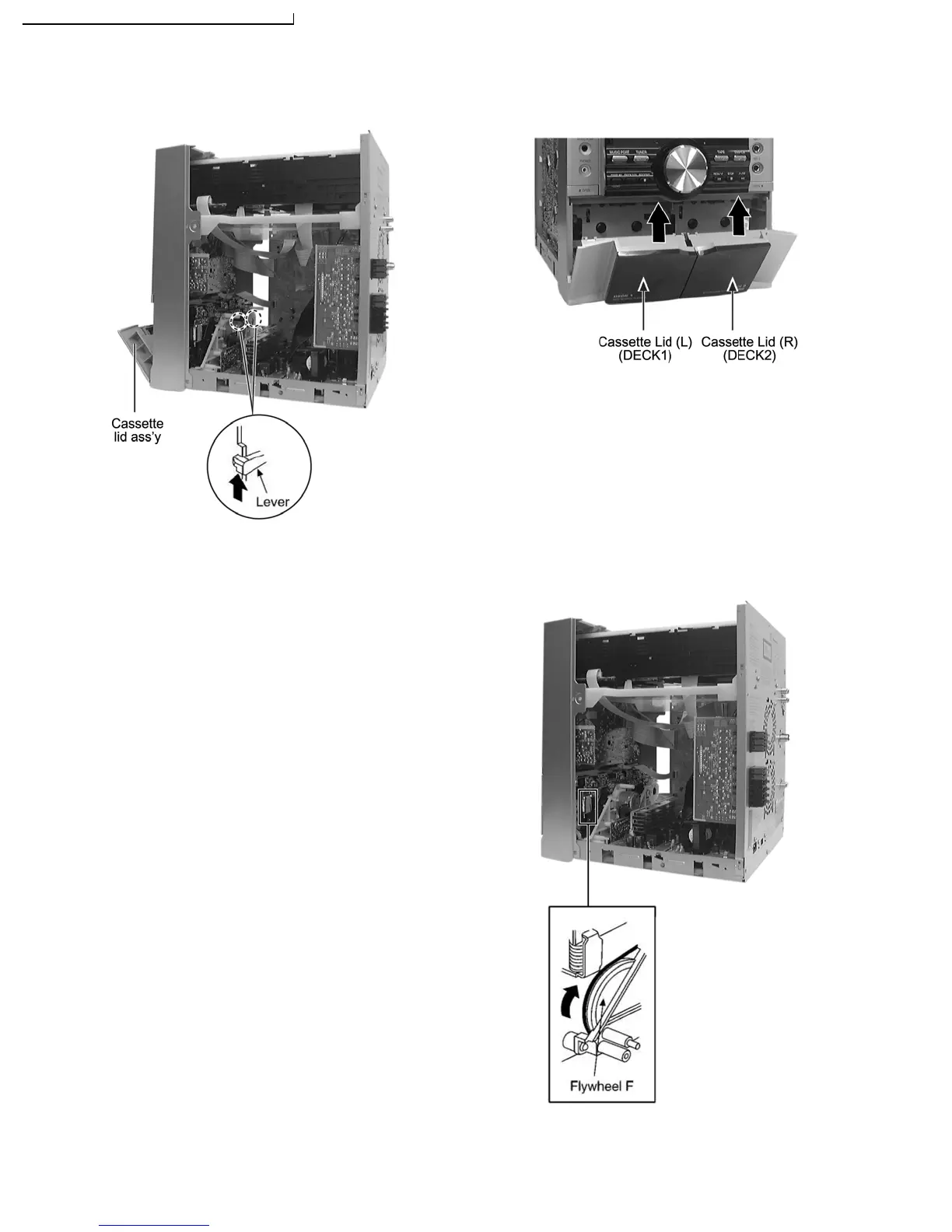

Step 1 Lift up the lever upward, open the cassette deck. (For
DECK1 and DECK2)
Step 1 If a cassette tape cannot be removed from the deck (the
tape is caught by the capstan or pinch roller during playback or
recording), rotate the flywheel F in the direction of the arrow to
remove it.
Step 2 Push up the cassette lid (L/R) in the direction of arrow.
(For DECK1 and DECK2).
Step 2 Push the lever upward and open the cassette lid.
Remove the cassette tape.
11.19. Replacement for cassette lid
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
11.20. Rectification for tape jam problem
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
