12 Service Fixture and Tools
Service Tools
Extension FFC
(A) Deck P.C.B. - Main P.C.B. REEX0485 (14 Pins)
(B) Panel P.C.B. - Deck Mechanism P.C.B. REEX0484 (10 Pins)
13 Service Positions
Note: For description of the disassembly procedures, see the Section 11.

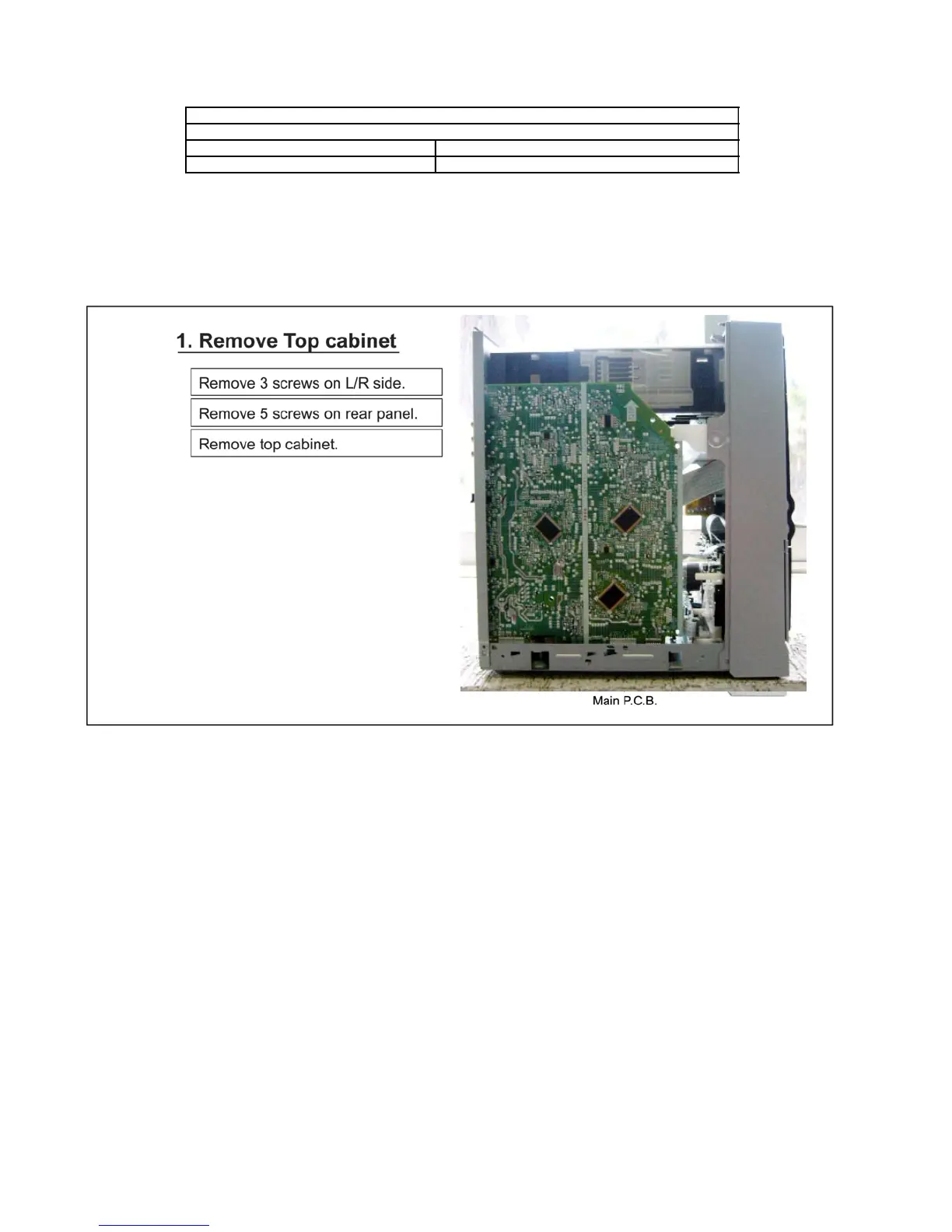

13.1. Checking and Repairing of Main P.C.B.
