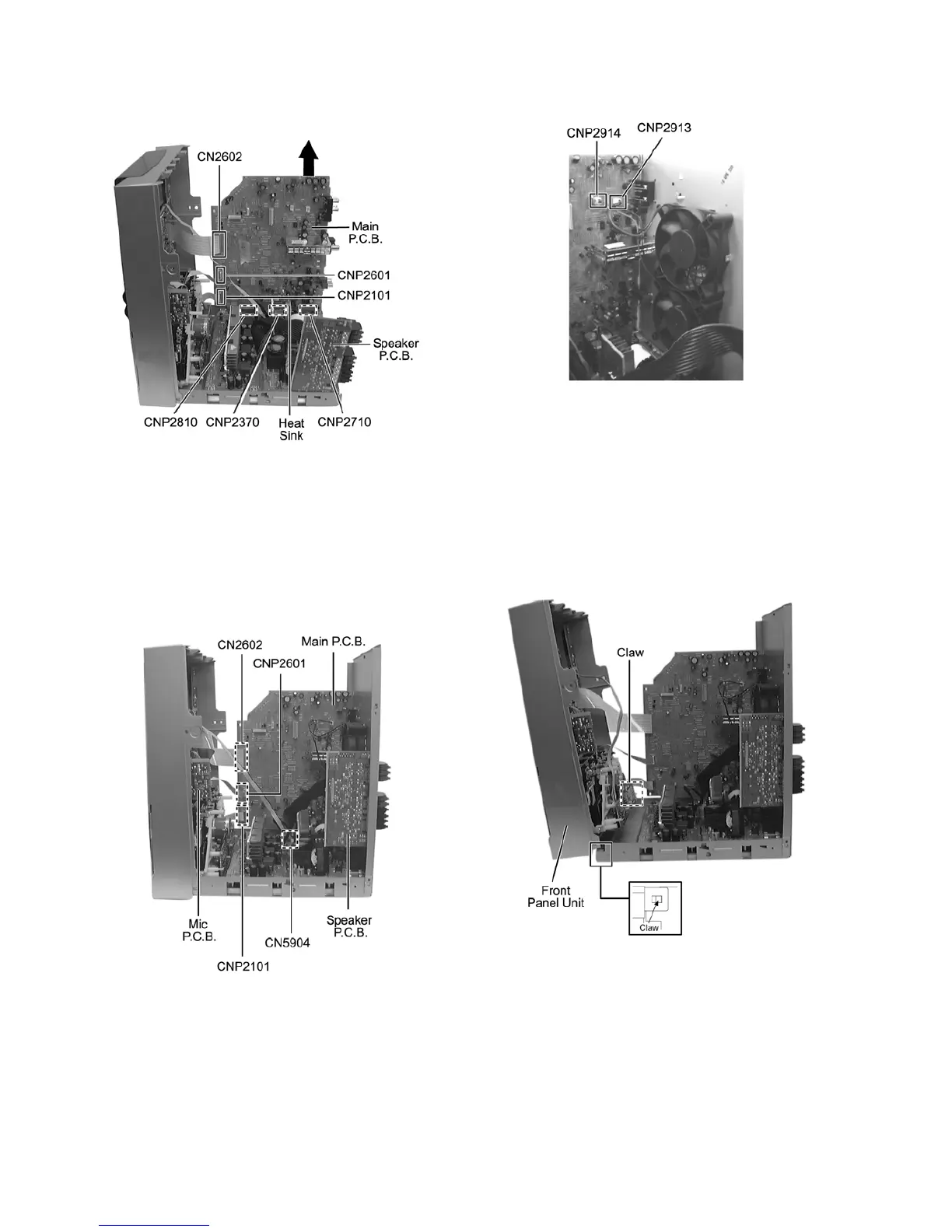

11.7. Disassembly of Main P.C.B.
Step 1
Disconnect FFC cables (CN2803, CNP2601 and
CNP2602).
Step 2
Detach 3 connectors (CNP2810, CNP2370 &
CNP2710).
Step 1
Disconnect connectors (CN2602, CNP2601, CNP2101
and CN5904).
Step 2
Bent the front panel unit slightly forward as shown.
Step 3
Remove Main P.C.B.
Caution:
1. Ensure the wires dressing must be at the top side to prevent
for wire touch heat sink unit.
2. The wire at upper fan connect to CNP2913.
3. The wire at lower fan connect to CNP2914.
Step 3
Release 2 claws.
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
• Follow the (Step 1) - (Step 4) of Item 11.5 - Disassembly of CD/DVD Changer Unit
• Follow the (Step 1) - (Step 4) of Item 11.6 - Disassembly of Rear Panel
11.8. Disassembly of Front Panel Unit
• Follow the (Step 1) - (Step 2) of Item 11.4 - Disassembly of Top Cabinet
• Follow the (Step 1) - (Step 4) of Item 11.5 - Disassembly of CD/DVD Changer Unit
To Next Page
