18
TH-50LFE7U/TH-50LFE7W/TH-50LFE7E
7 Disassembly and Assembly Instructions

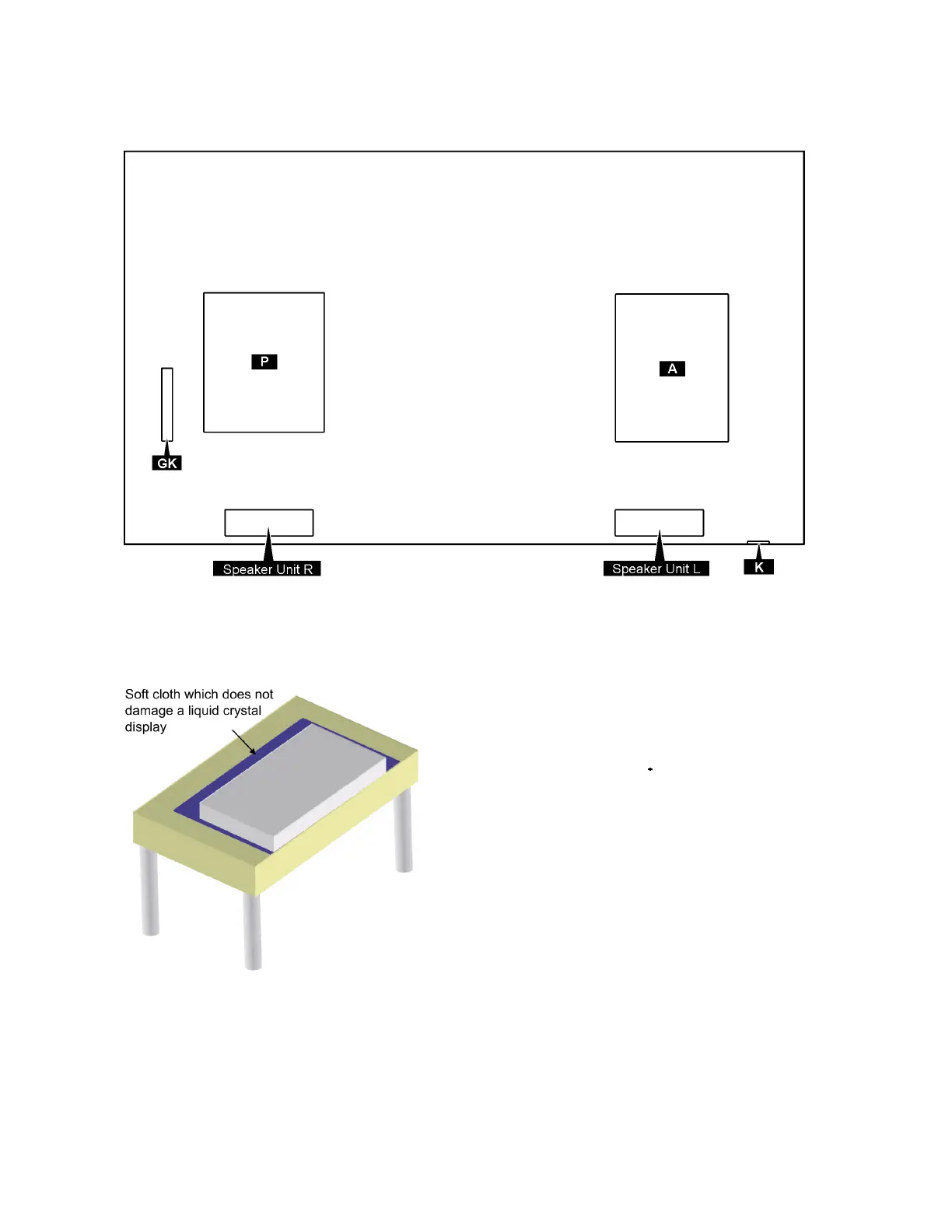

7.1. PCB Layout
7.2. Preparation
Please spread soft cloth etc. not to damage a screen and
please turn the front of a main part down and lay it down
7.3. About disassembly and
replacement
Cautions when replacing each component
• When you replace each component, please be sure to carry
out according to the following procedure.
• When you attach each module, please do not bolt a screw
strongly.
• The part without the statement of tightening torque, please
tighten a screw 60 ± 10 [N cm].
• To disassemble P.C.B., wait for 1 minute after power was off
for discharge from electrolysis capacitors.
• When tightening a screw, retention structures are required
not to deform the LCD Panel.
• Please remove a clamper and a wire processing tape if
needed in the repair.
• Hold the specified parts to stand the monitor up. (Prevent
from the curvature and deformation of a set)
• In carrying out Section 7.5. or later, please execute the
Chapter 7.4. in advance.
To Next Page
