Panasonic TH-50LFE7U - Backcover Comp Removal; A-Board Replacement

19
TH-50LFE7U/TH-50LFE7W/TH-50LFE7E

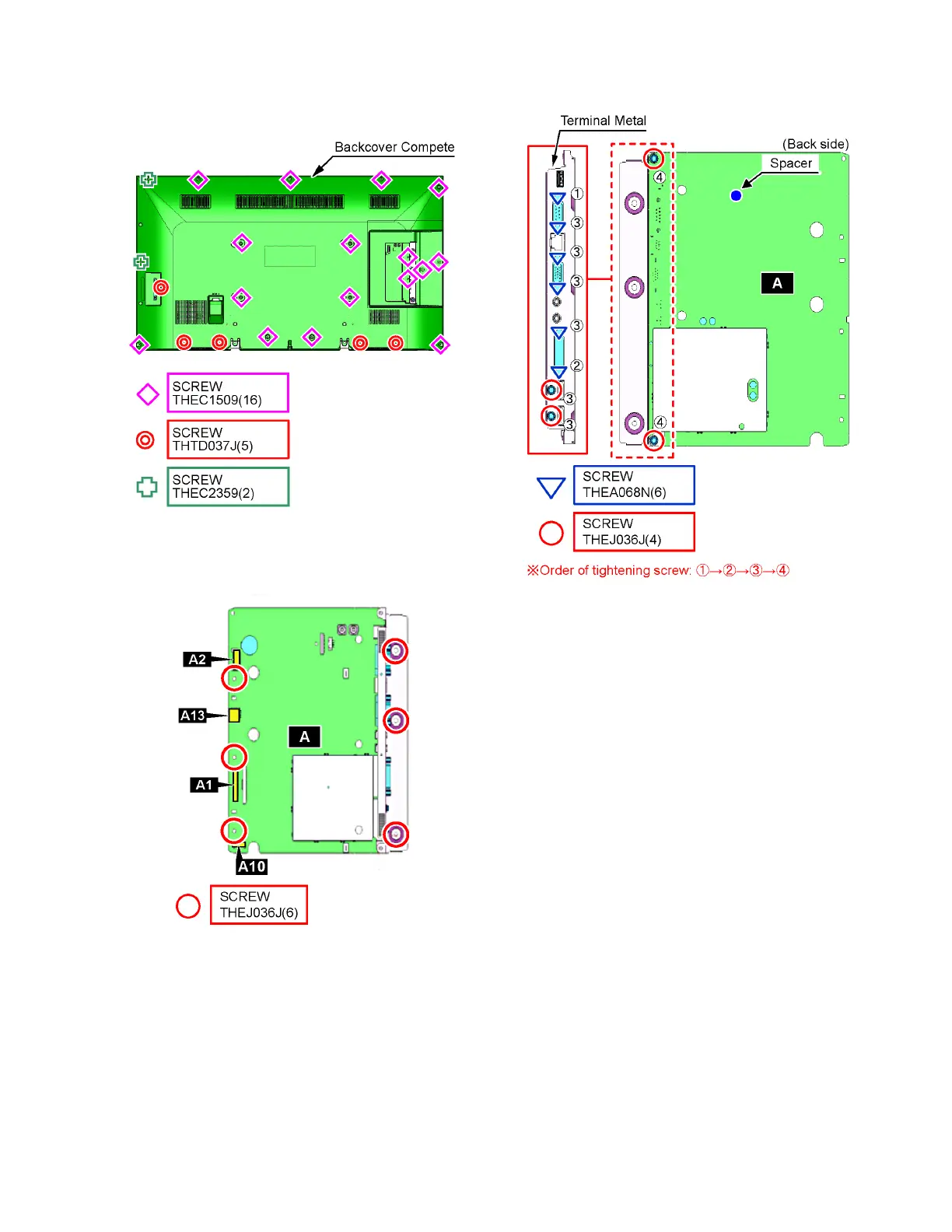

7.4. Backcover Comp removal
1. Remove the screws, and then remove the Backcover
Comp.
7.5. A-Board replacement
1. Disconnect the connectors and remove the screws.
2. Remove the screws, and then remove the A-Board from
the Terminal Metal.
