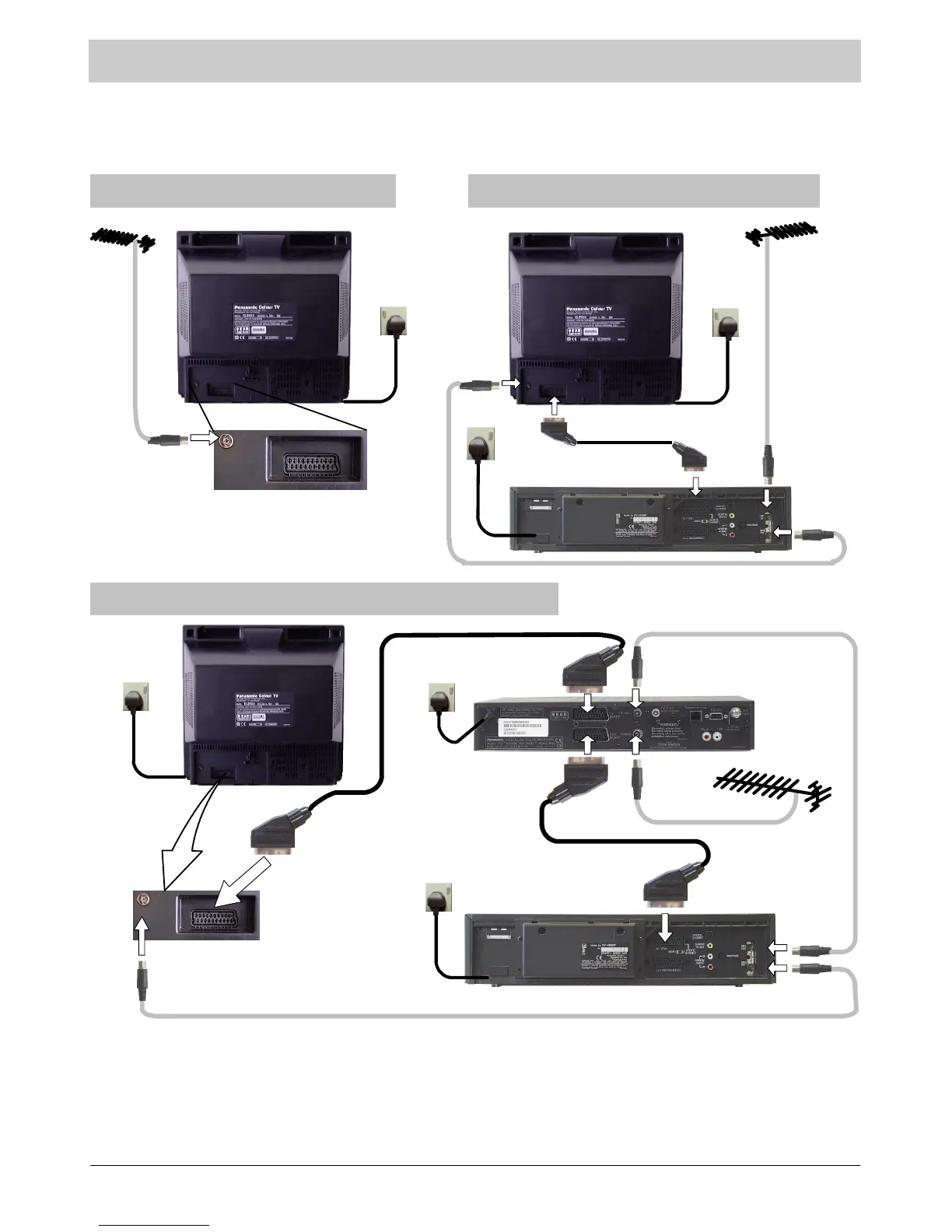

QUICK START GUIDE
1. If connecting the TV using an RF cable only, proceed to option 1.
2. If connecting the TV to VCR or Satellite Receiver using Scart and RF cables, proceed to option 2.
3 If connecting the TV both to Satellite Receiver and VCR using Scart and RF cables, proceed to option 3.
.
1. Connection of T
V
using an RF cable
only
2. Connection of T
V
to
V
CR or Satellite receiver
using Scart and RF cables
Mains
Socket
Mains
Socket
Mains
Socket
VCR or SATELLITE RECEIVER
Aerial Input
socket
Aerial Outp
u
socket
AV Scart sockets
Aerial Input
socket
Aerial Input
socket
3. Connection of T
V
to
V
CR and Satellite receiver using Scart and
RF cables
SATELLITE
RECEIVER
VCR Scart
socket
TV Scart
socket
Aerial Input
socket
Aerial
Output
socket
AV Scart socket
VCR
Mains
Socket
Mains
Socket
Aerial
Input
socket
Aerial Outp ut
socket
Aerial Input
socket
AV Scart socket
TV
Mains
Socket
RF Connections
Connect an RF cable to the Aerial In socket of the Satellite Receiver.
Connect an RF cable from the RF socket of the Satellite Receiver to the RF In socket of the VCR.
Connect an RF cable from the RF Out socket of the VCR to the TV Aerial In socket.
Notes :
Additional equipment and cables are not supplied.
Further details of Audio/ Video connections can be found on page 21.
Further information for VCR and Satellite Receiver installation with this TV can be found on page 19.
