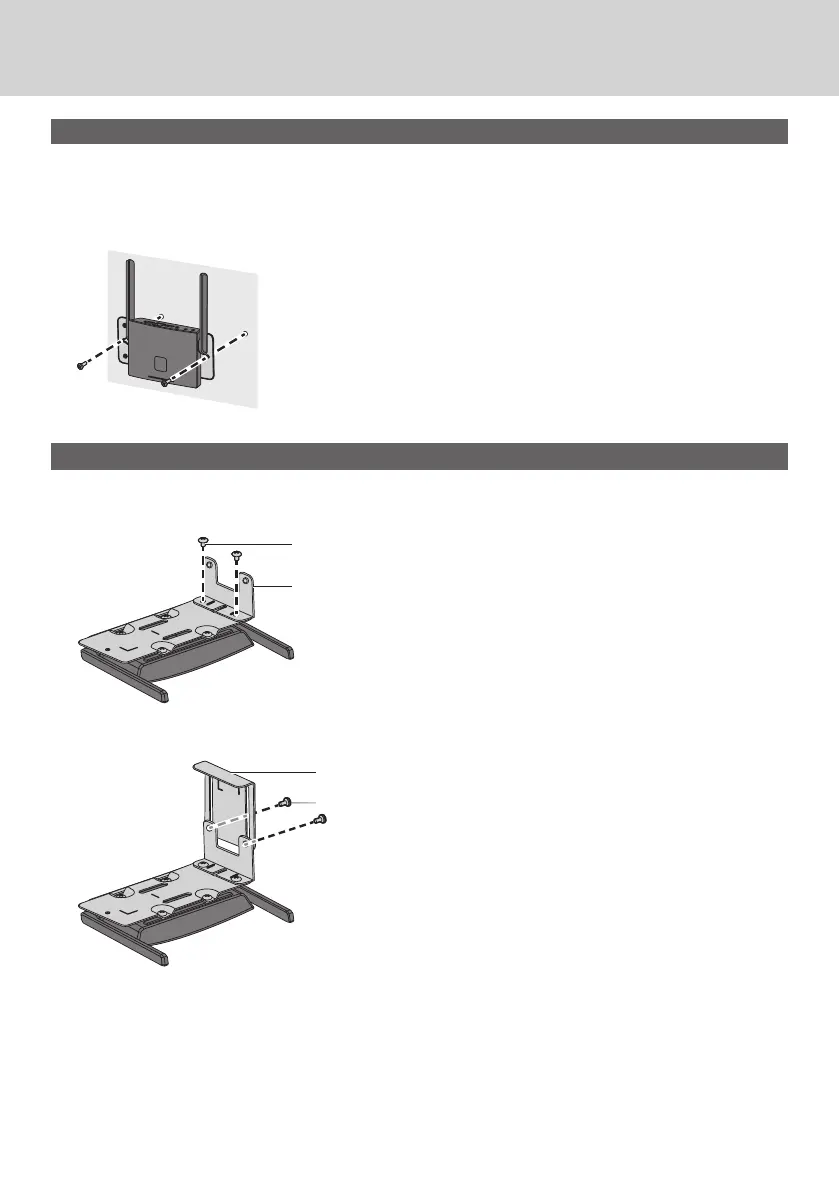

Installing on the ceiling or wall
1
Mount the base bracket (A-1) to the receiver.
2
Fix the receiver to the ceiling or wall with 2 screws.
Use screws (commercially available) of the appropriate type and length according to the ceiling or wall to be
installed. (Recommended size: M4)
Installing on the display
1
Mount the base bracket (A-1) to the receiver.
2
Fix the connecting bracket A (A-2) to the base bracket (A-1) with 2 screws (C-2).
C-2
A-2
3
Fix the connecting bracket B (A-3) to the connecting bracket A (A-2) with 2 knurled
screw (C-1).
A-3
C-1
