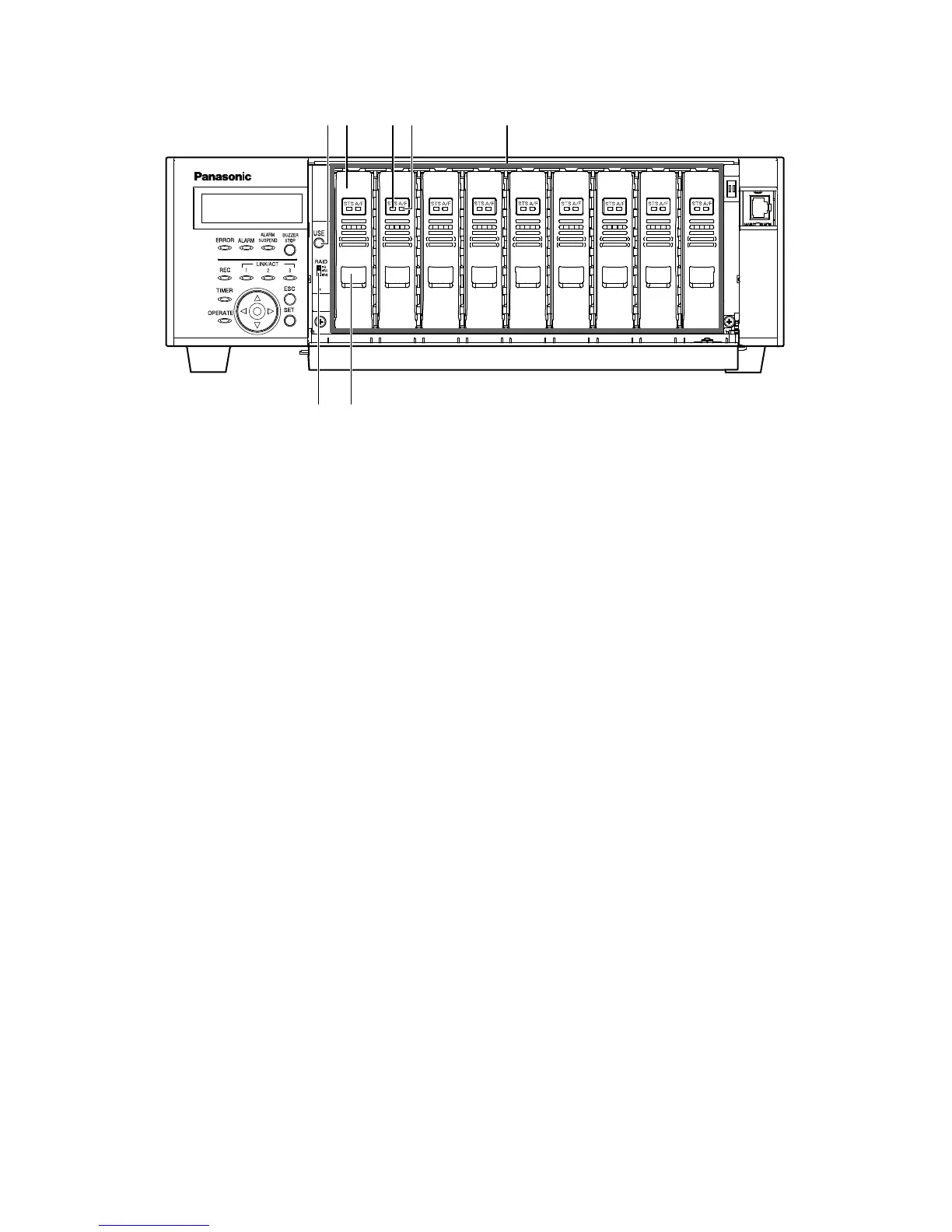

■ Inside the front cover
q [USE] button
Use this button when adding/replacing the HDD units, or
when changing the operational mode.
Installing/removing an HDD unit: Hold down the button
for 2 seconds or more until the buzzer sounds. When
the buzzer sounds, the recorder is ready for installa-
tion/remove of the HDD units using the buttons and
the LCD on the front panel.
Changing the operational mode: Select the operational
mode by determining the [RAID] switch position, and
then turn on the power of the recorder by pressing the
[POWER] switch while holding down the [USE] button
until the buzzer sounds. The recorder will start up in
the selected operational mode.
w HDD units
Only the hard disk drive encased in the dedicated hard
disk drive canister (HDD units) can be installed in the
recorder.
It is possible to add/replace the HDD unit by operating the
buttons and the LCD on the front panel. Refer to page 46
for further information. Contact your dealer about purchas-
ing/replacing hard disk drives.
e HDD status indicator (STS)
Indicates the operational status of the respective hard disk
drive.
Lights green: Indicates that the power of the respective
hard disk drive (formatted) is on.
Blinks green: Indicates that the respective hard disk drive
is for playback use only.
(Recording is unavailable using the respective hard
disk drive.)
Blinks orange: Indicates that the respective hard disk drive
is currently being formatted.
Lights red: Indicates that formatting of the respective hard
disk drive has failed.
Off: Indicates that the power of the respective hard disk
drive is off, or that the hard disk drive is not connect-
ed/recognized.
r HDD access/failure indicator (A/F)
Indicates the status (access/failure) of the respective hard
disk drive.
When an HDD failure (error) occurs during operation in the
RAID 5/RAID 6 mode, the indicator will light/blink red.
Blinks green: Indicates that the respective hard disk drive
is being accessed.
Off: Indicates that the respective hard disk drive is not
being accessed.
Lights red: Indicates that the respective hard disk drive is
faulty (which can be recovered by replacing the hard
disk drive)
In the RAID 5 mode, it indicates that the hard disk
drive is the first faulty drive.
In the RAID 6 mode, it indicates that the hard disk
drives are the first and second faulty drive.
Blinks red: Indicates that the respective hard disk drive is
faulty (which cannot be recovered even by replacing
the hard disk drive)
In the RAID 5 mode, it indicates that the hard disk
drive is the second faulty drive.
In the RAID 6 mode, it indicates that the hard disk
drive is the third faulty drive.
Lights red and orange alternately: Indicates that the
respective hard disk drive is currently being recovered
in the RAID 5/RAID 6 mode.
(It may appear that the indicator lights orange when
recovery is being processed at high speed.)
