Getting To Know
Your Machine
END_ti1_2

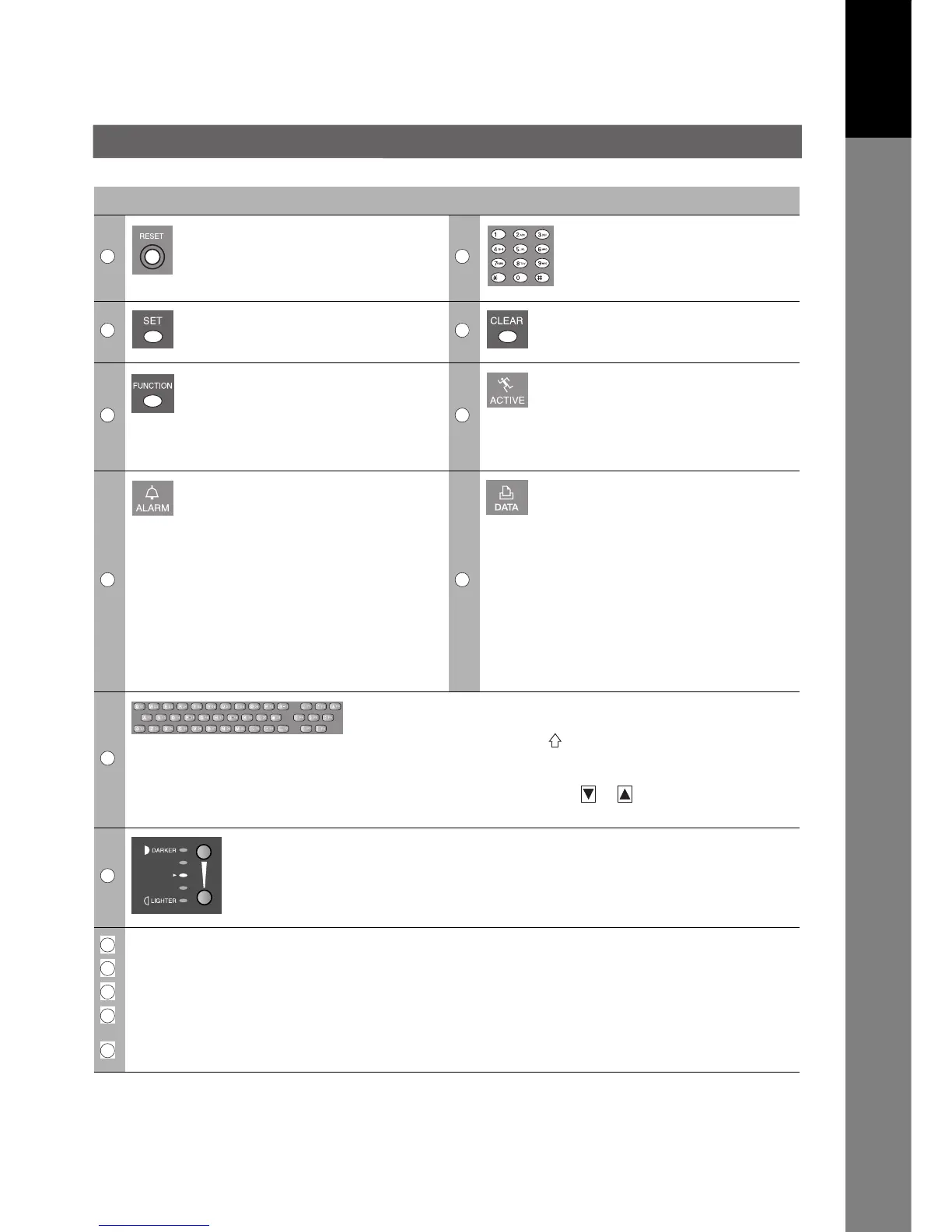

RESET Key
Resets all features to the initial power-
on state.
Keypad
• Used for manual number dialing,
recording phone numbers and
numerical entries.
SET Key
Used to Set operations.
CLEAR Key
• Use this button when correcting
entered numbers or characters.
FUNCTION Key
Used to start or select the function and
subfunctions. These functions are
explained in detail on page
14.
ACTIVE LED (GREEN)
Flashes:
When machine is active.
Lights:
When the received fax message is in
memory.
ALARM LED (RED)
Lights/Flashes when trouble occurs.
Lights:
Machine detected a trouble status.
• No paper in the selected tray or toner
has run out.
• Machine detected trouble, such as
paper misfed or jammed.
Flashes:
Machine detected an alarm status.
• No paper in the Tray. (Tray not
selected)
• Toner is getting low, etc.
PRINT DATA LED (GREEN)
Flashes:
When receiving printing data.
Lights:
While printing.
Keyboard
• Used to input the Characters. (To switch between Upper/Lower
character, press Shift key(
))
• Used for One-Touch Keys, Program Keys.
• Used to enter a symbol for the LOGO, Character ID, Station Name
and for the Email address. Use or to select the desired
symbol(s).
CONTRAST Key
To adjust the Manual Exposure.
~
Used for Copier or Network Scanner Functions.
No. Icon Contents No. Icon Contents
18 19
20 21
22 23
24 25
26
27
1
8
9
29
30
