Getting To Know Your Machine

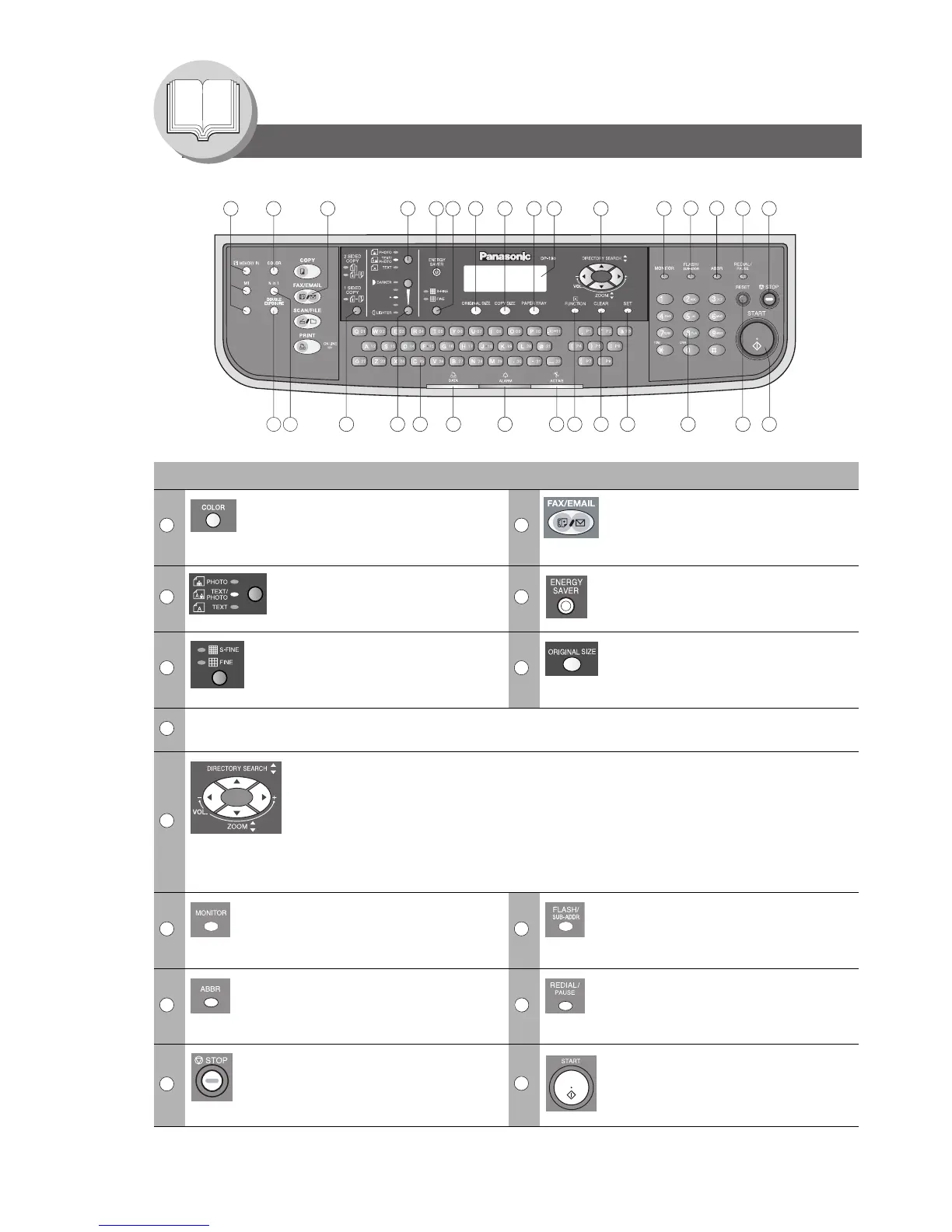

Control Panel
No. Icon Contents No. Icon Contents
COLOR Key
Used when sending Color original(s).
(See page 11)
(PDF or JPEG file type only)
FAX/EMAIL Key
Used to select the FAX/EMAIL mode.
To change the input mode between
Email Address and Telephone Number.
ORIGINAL Key
To select type of Original.
(See page 11)
ENERGY SAVER Key
Used to switch the machine into Energy
Saver Mode.
RESOLUTION Key
Used to set Standard, Fine, Super-Fine
(400 or 600 dpi in Monochrome, 300 dpi
in Color) (See page 11)
ORIGINAL SIZE Key
To select the Original Size manually.
(See page 11)
LCD Display
Indicates Number of Copies / Original(s), Machine / User Error code.
Cursor Keys
• Adjust the Monitor and Ringer volume.
• Move the cursor while entering numbers and characters.
• Search the station name for Quich Name Search and Directory Search Dialing.
• Confirm the entered station for multi-station communication.
• Select functions.
• Confirm the current communication modes (e.g. Page number, ID, Dialed Telephone number or
Email address, File number) when the unit is ON LINE.
MONITOR Key
Used to start On-Hook Dialing. (See
page
128)
FLASH/SUB-ADDR Key
Used to separate the Sub-Address from
the telephone number when dialing, or
to access some features of your PBX.
ABBR Key
Used to start Abbreviated Dialing. (See
pages
10, 20, 56)
REDIAL/PAUSE Key
Used to enter a pause when recording
or dialing a telephone number, or to
redial the last dialed number.
STOP Key
Press this button when you want to Stop
a telecommunication, registration
operation or audible tone.
START Key
Press this button to Start transmitting or
receiving a fax.
REMOTE
COPY
1 2 3 4 5 6 7 8 9
10 11
12
13
14
15
16
171819202122232425
29
2728 26
30
2 3
4 5
6 7
10
11
12 13
14 15
16 17
