19

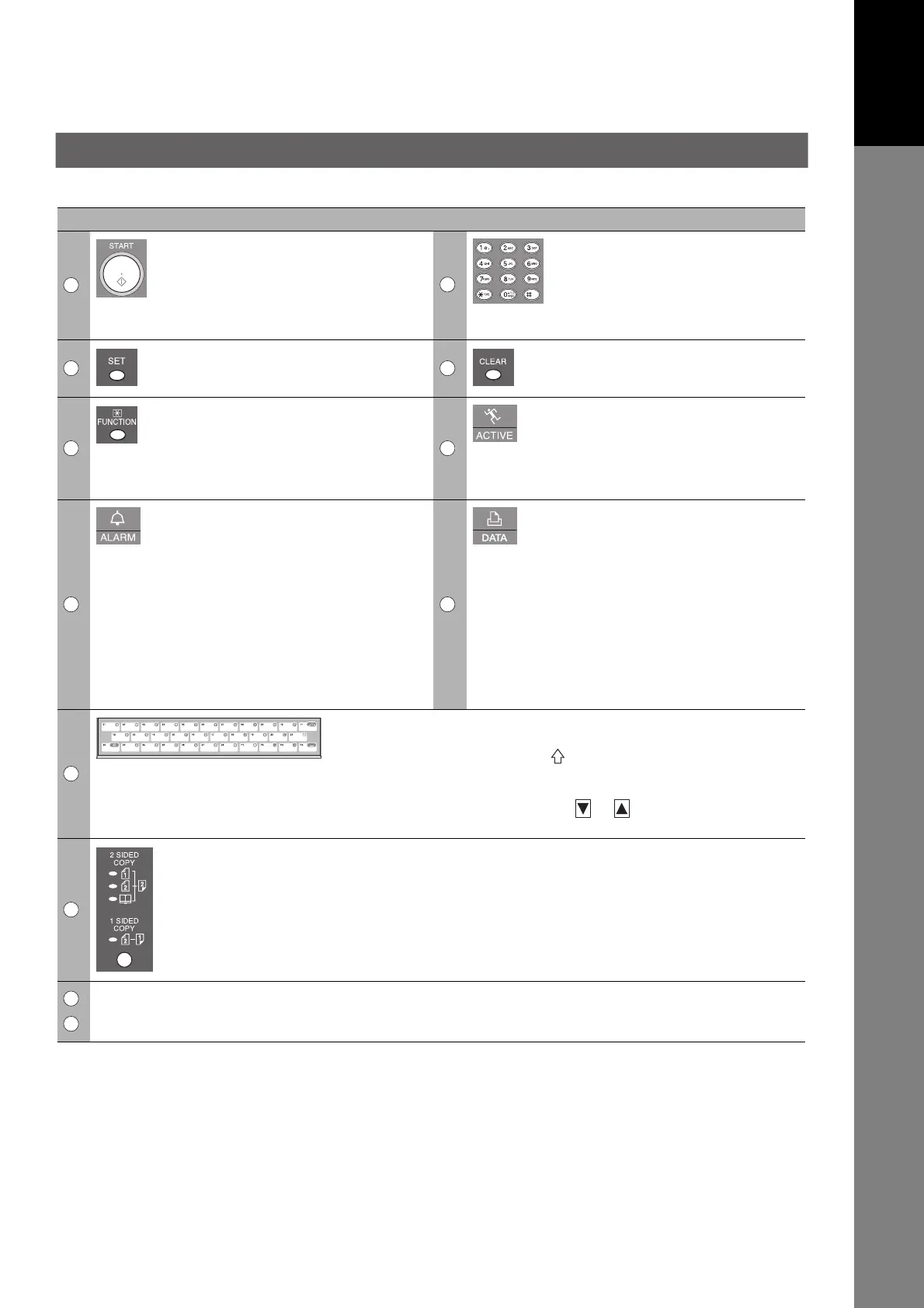

Getting To Know
Your Machine
START Key
Press this button to Start transmitting or
receiving a fax.
Keypad
Used for manual number dialing,
recording phone numbers and
numerical entries.
Used to input Characters when a
Keyboard option is not installed.
SET Key
Used to Set operations.
CLEAR Key
Use this button when correcting entered
numbers or characters.
FUNCTION Key
Used to start or select functions and
subfunctions. These functions are
explained in detail on page 14.
ACTIVE LED (green)
Flashes:
When machine is active.
Lights:
When the received fax message is in
memory.
ALARM LED (red)
Lights/Flashes when trouble occurs.
Lights:
Machine detected a trouble status.
• No paper in the selected tray or toner
has run out.
• Machine detected trouble, such as
paper misfed or jammed.
Flashes:
Machine detected an alarm status.
• No paper in the Tray. (Tray not
selected)
• Toner is getting low, etc.
PRINT DATA LED (green)
Flashes:
When receiving printing data.
Lights:
While printing.
Keyboard (Option)
• Used to input the Characters. (To switch between Upper/Lower
characters, press Shift key ( ))
• Used for One-Touch Keys, Program Keys.
• Used to enter a symbol for the LOGO, Character ID, Station Name
and for the Email Address. Use or to select the desired
symbol(s).
2-Sided Key
Used for 2-Sided transmission. (Available when the i-ADF (DA-AR202) option is installed.)
(For DP-8020E only)
Used for Copier, Network Scanner and Printer Functions.
No. Icon Contents No. Icon Contents
16 17
18 19
20 21
22 23
24
25
8
26
To Next Page
