11 Configure the settings relating to images and
audio [Image/Audio]
The settings relating to JPEG and H.264 images such as the settings of image quality, audio, etc. can be
configured on this page.
The “Image/Audio” page has the [JPEG/H.264] tab, the [Cam. Function] tab, the [Image/Position] tab, and the
[Audio] tab.
11.1 Configure the settings relating to the image
capture mode [JPEG/H.264] (SW598A/SW598APJ/
SC588A)

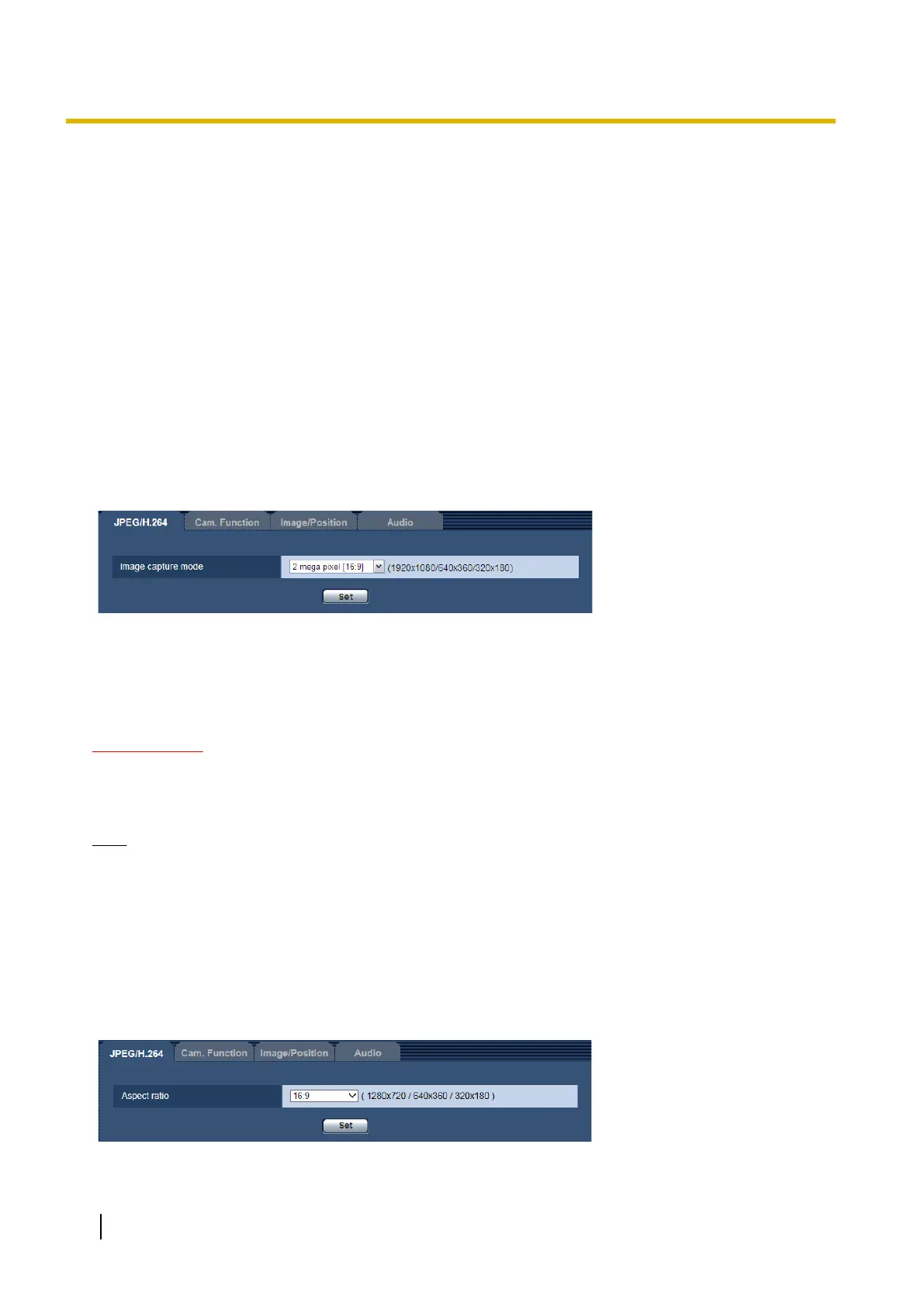

Click the [JPEG/H.264] tab on the “Image/Audio” page. (®page 47, page 49)
[Image capture mode]
Select an image capture mode from the following.
2 mega pixel [16:9]/1.3 mega pixel [16:9]/1.3 mega pixel [4:3]
• Default: 2 mega pixel [16:9]
IMPORTANT
• The positions of areas may move out of alignment if the “Image capture mode” setting is changed when
the mask area setting (®page 107) is configured. Therefore we recommend that you configure the
mask area setting after configuring the “Image capture mode”.
Note
• When “On” is selected for “VIQS” and the setting value for the aspect ratio is changed from “4:3” to
“16:9”, make sure that the VIQS setting value does not exceed the maximum designated range.
11.2 Configure the settings related to the aspect ratio
(SW397B/SC387A)
Click the [JPEG/H.264] tab on the “Image/Audio” page. (®page 47, page 49)
