12.3.2. Removing the optional tray

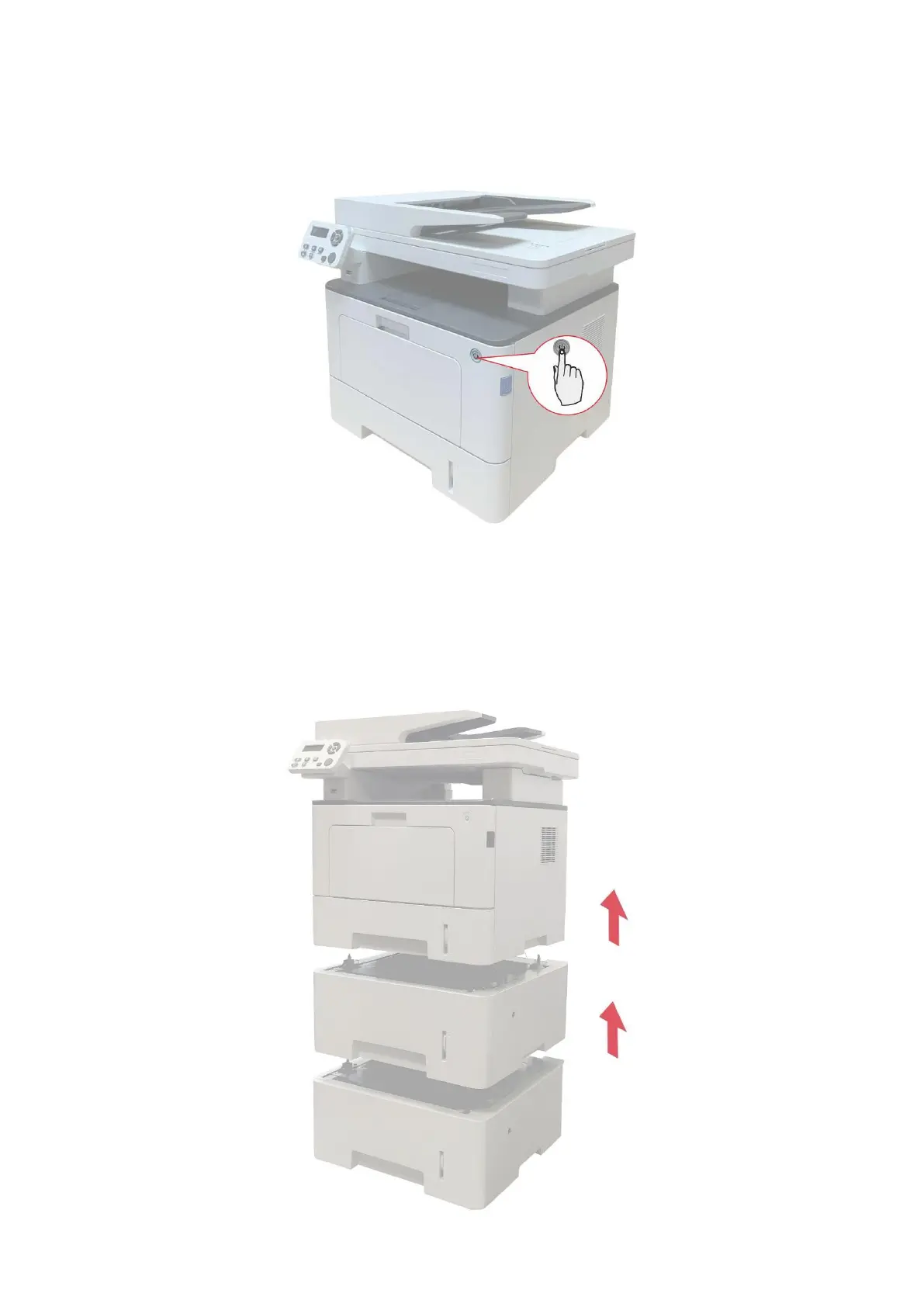

1. Turn off the printer.

2. Unplug the power cord from the electrical outlet, and then unplug the power cord from the

printer.

3. Lift the printer body with both hands and remove the optional trays.
