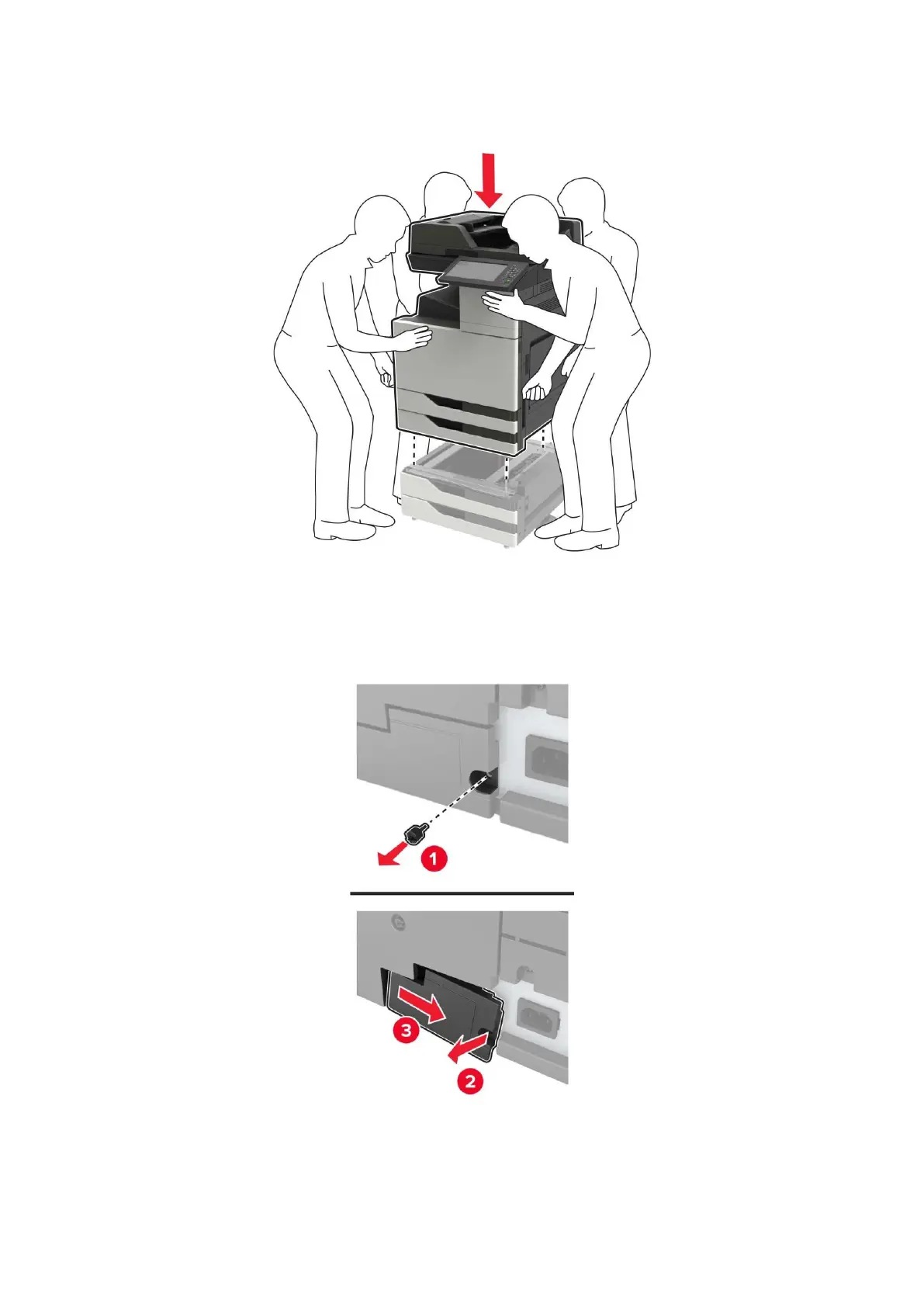

5. Align the printer with the tray with the side handle, and then lower the printer in place.

6. Remove the connector cover plate at the rear of the printer with the screwdriver stored inside the

door A.
