5. Insert the tray.

When loading a paper type other than plain paper, please set the paper size and paper type from

Control Panel to match the loaded paper.

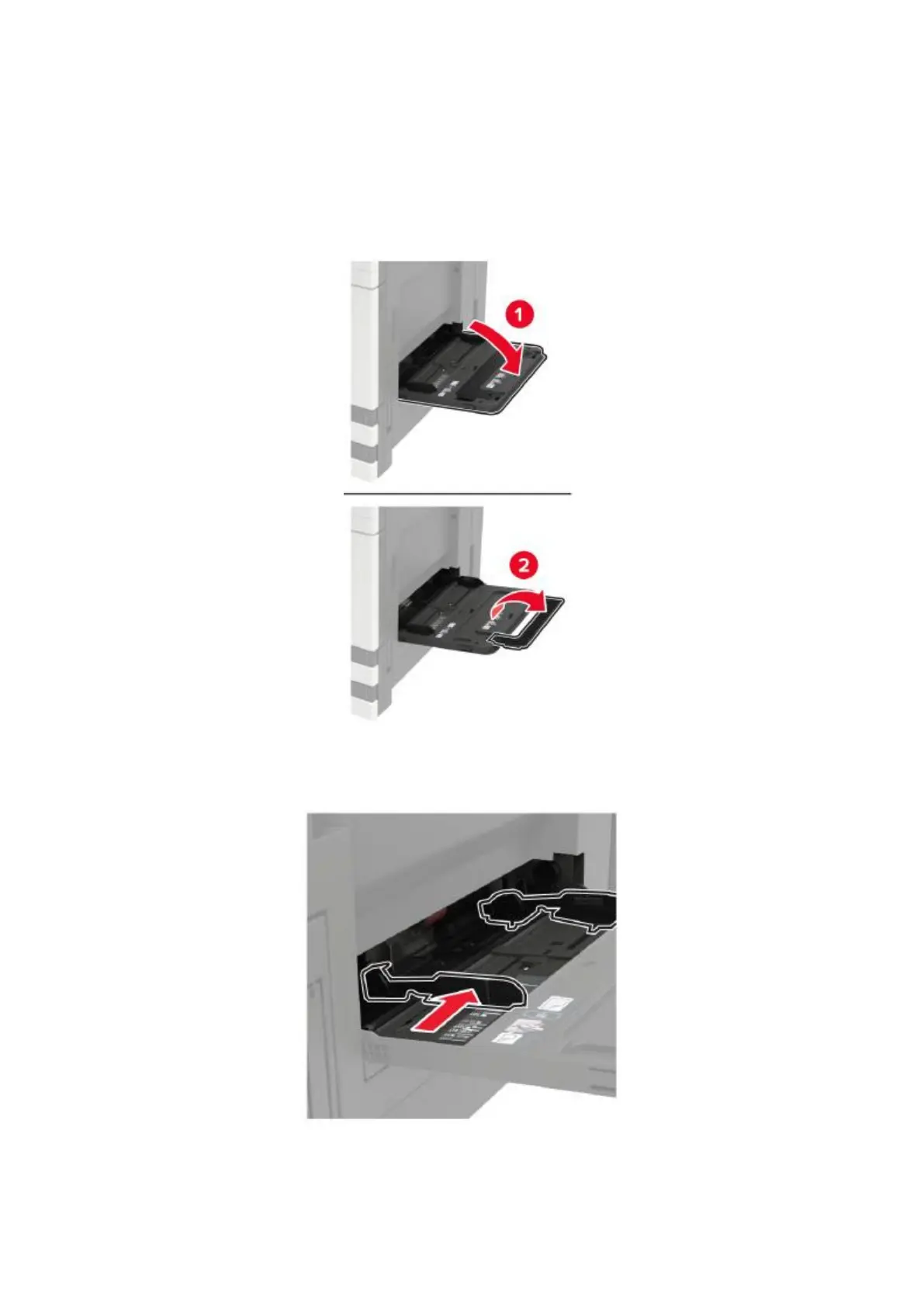

Install the multi-purpose paper feeder

1. Open the multi-purpose paper feeder.

2. Adjust the guide to match the size of the loaded paper.
