Clean the scanner

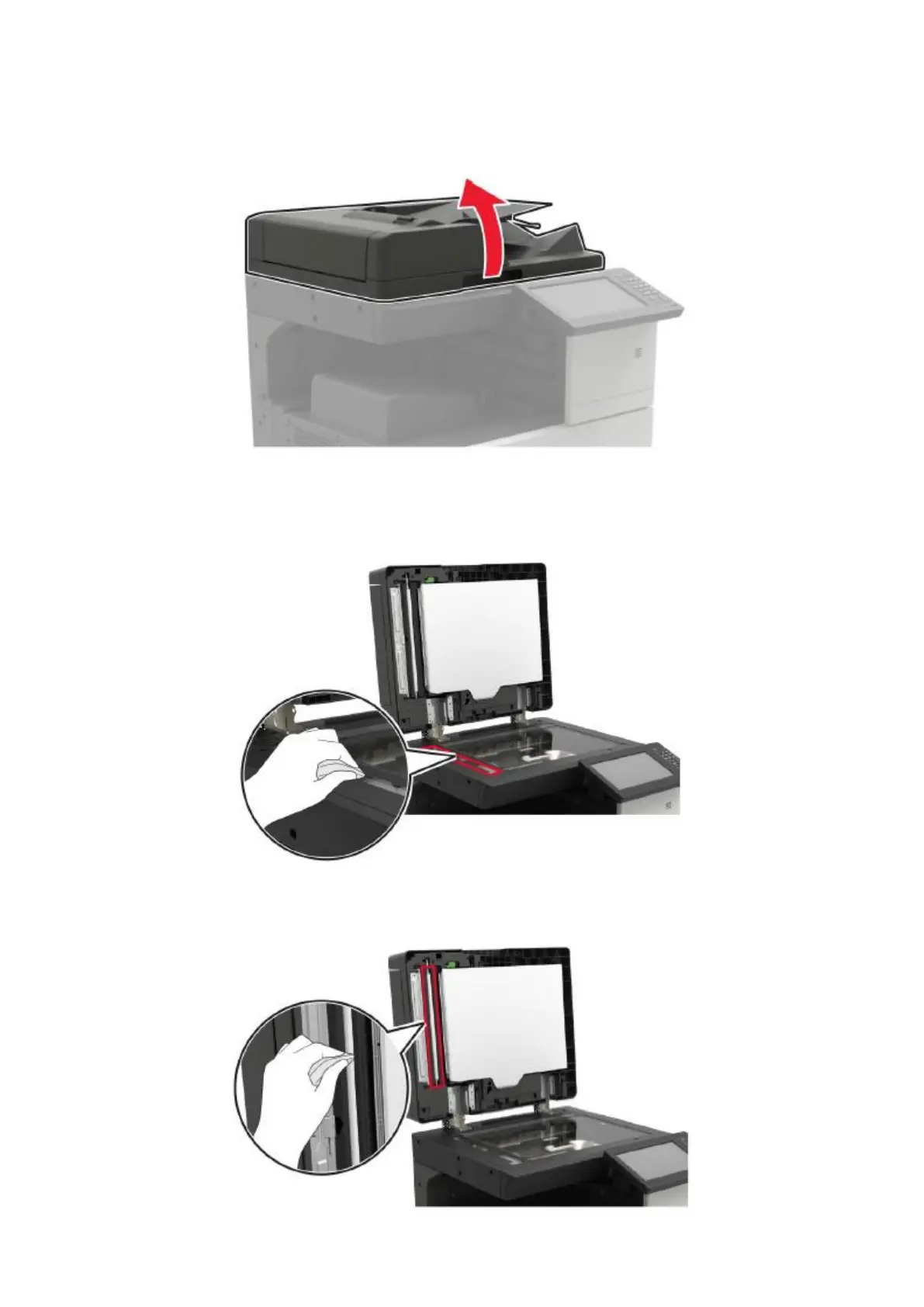

1. Open the scanner cover.

2. Wipe the following areas with a piece of soft and lint-free wet cloth:

• ADF Glass:

• ADF glass mat:
