Pantum M9106 Series - Replacing Parts and Consumables; Replace the Toner Cartridge

164 pages

To Next Page

To Previous Page

Replacing parts and consumables

Replace the toner cartridge

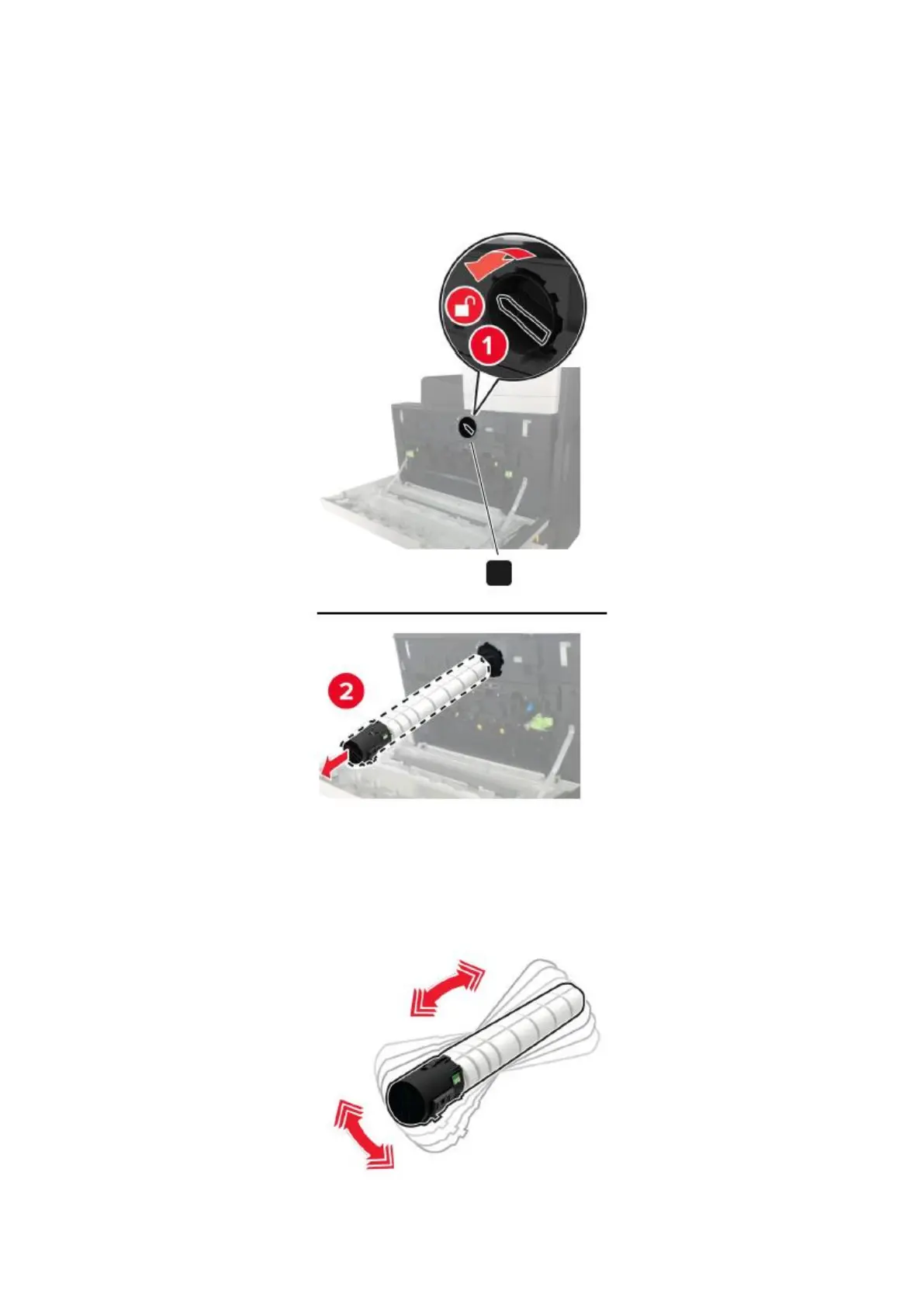

1. Open the door A.

2. Remove the toner cartridge.

3. Unpack the new toner cartridge.

4. Shake the toner cartridge three times.
