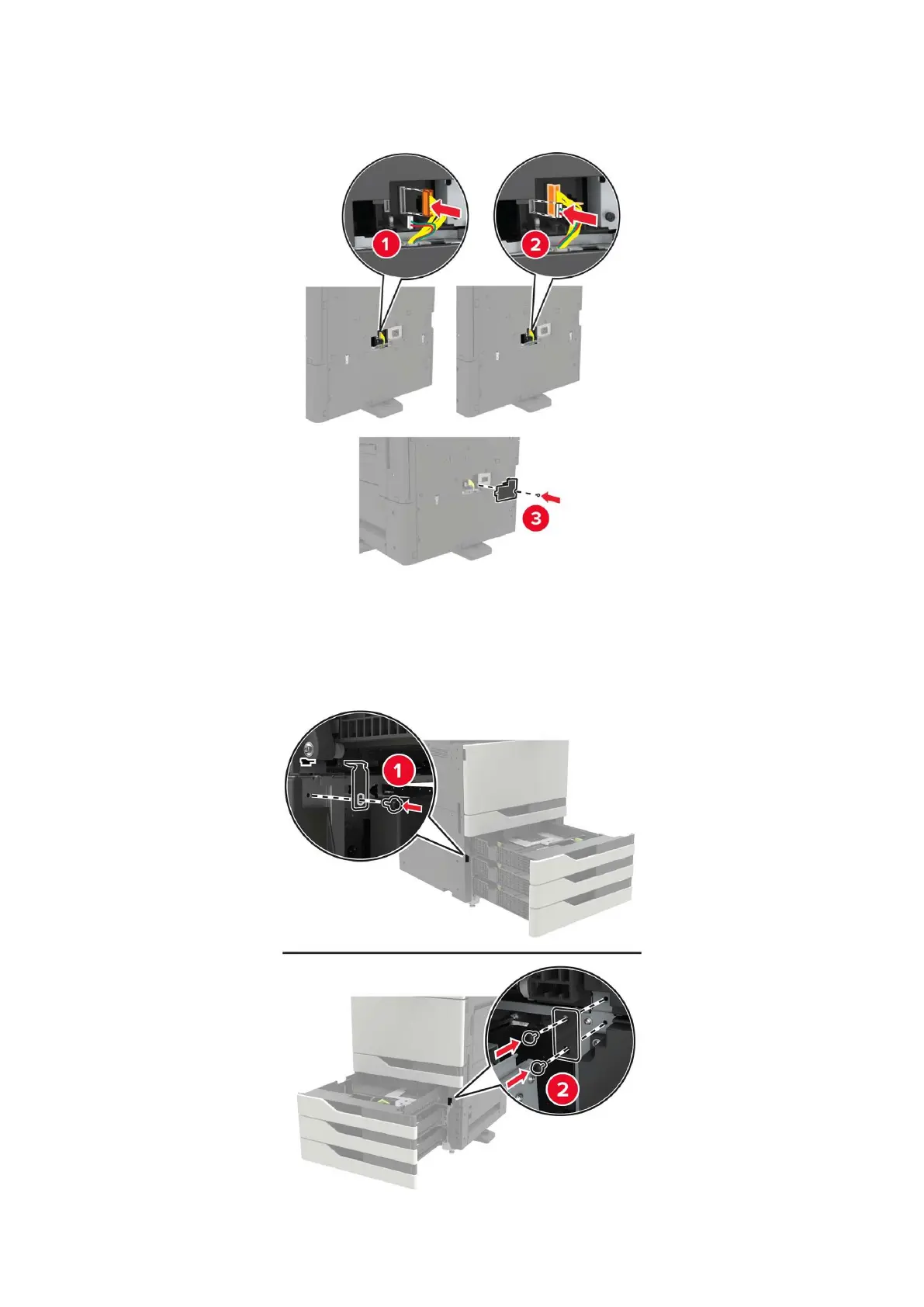

22. Connect the 2 x 500-sheet tray connector to the printer.

23. Open Feed Tray 2, 3, and 4, and secure the 2 x 500-sheet tray to the printer with the locking clip

and metal holder.
