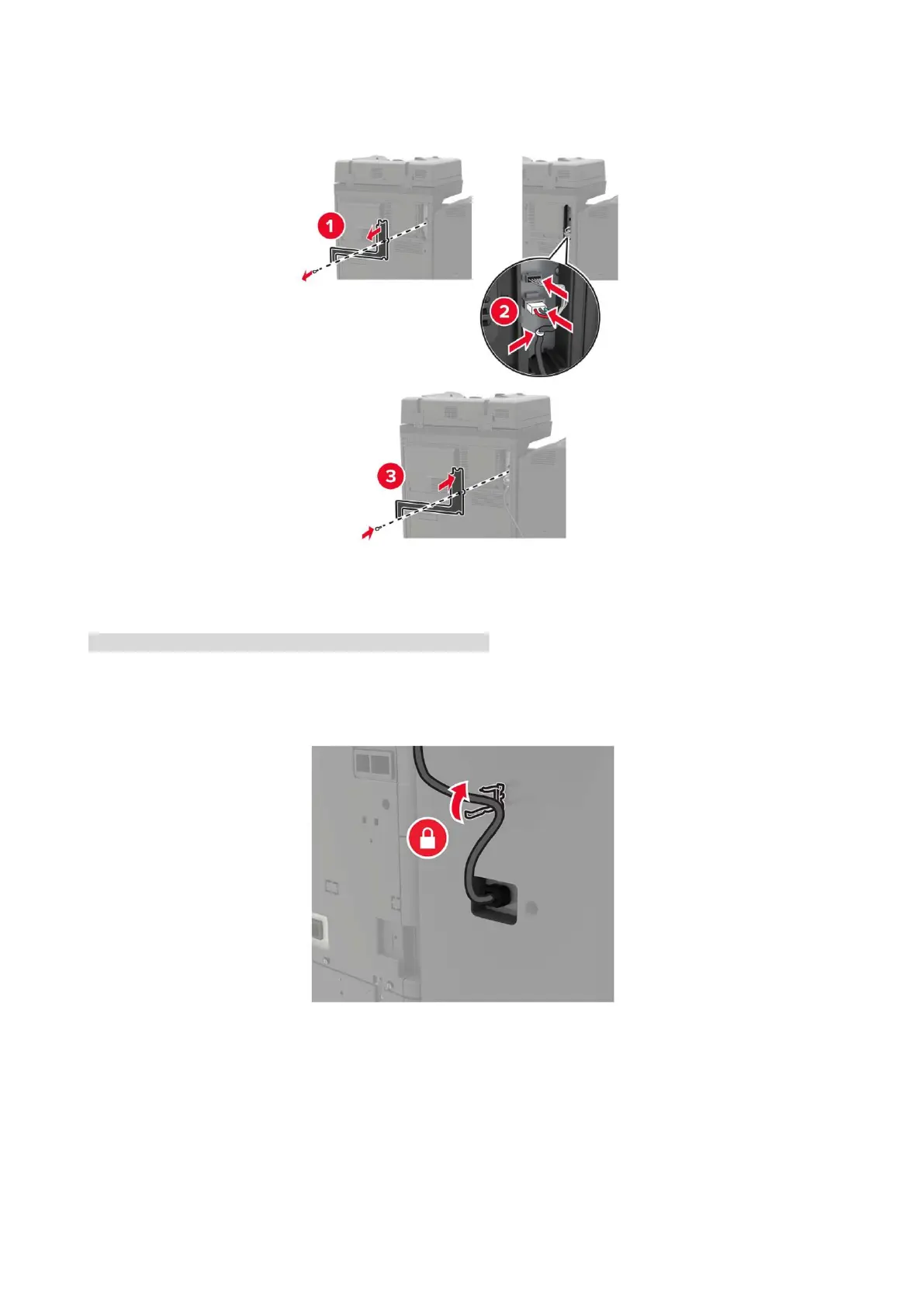

11. Connect the stapler cable to the printer.

12. Reinstall the filter cover.

Note:

• This step is only applicable to some printer models.

13. Secure the cable.
